Sioux Tools SDR10T40N3 - Page 5

Form Z833 5 Date 2017February28/A
1
2
3
4
4
5
6
7
8
9
10
11
13
14
12

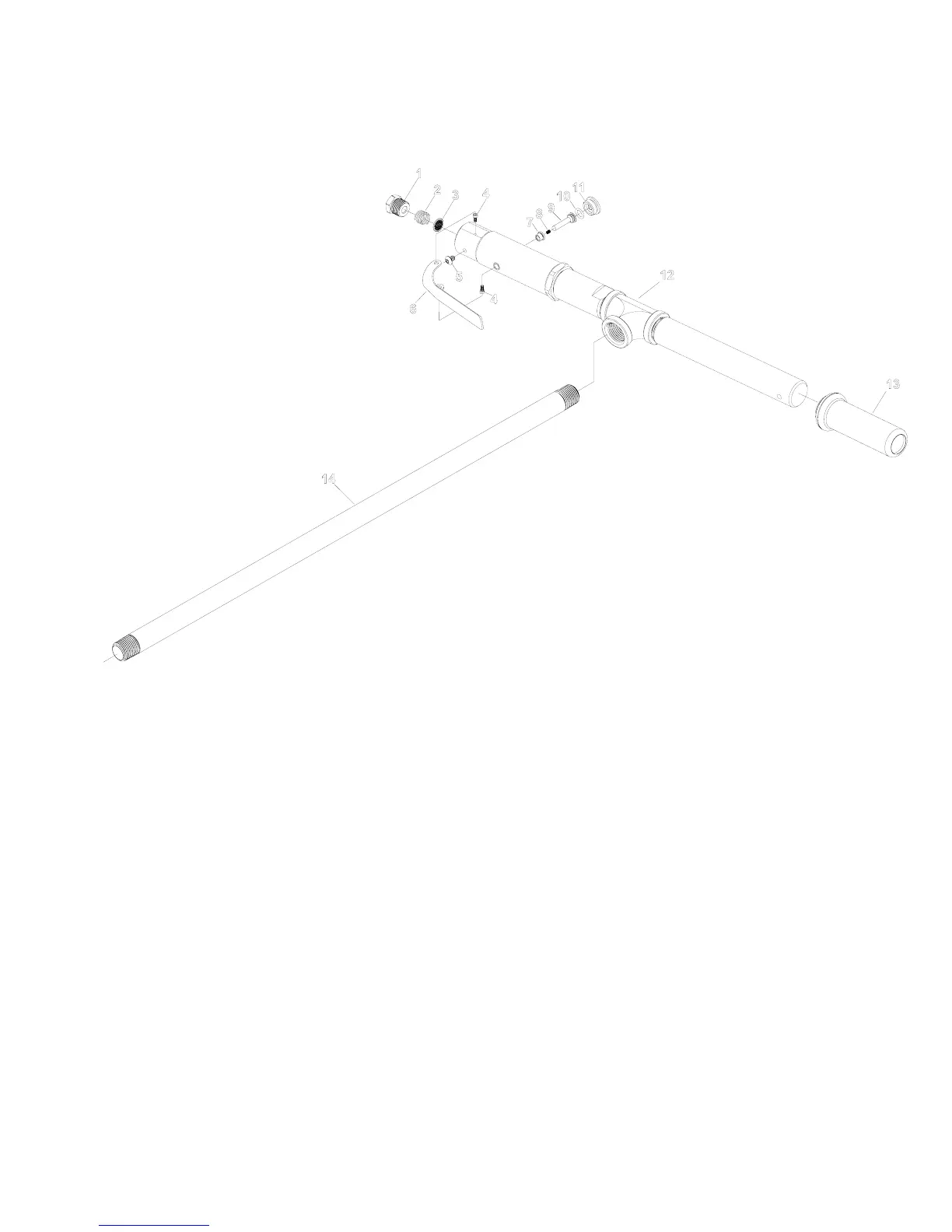

PARTS LIST FOR SDR10T SERIES
DRILLS
SERIAL “A”
Fig. Part
No. No. Description
1. 44100 Reducing Bushing
2. 21417 Spring
3. 30462 Screen
4. 06099 Screw (2)*
5. 66963 Screw
6. 35235 Handle Lever
7. 66879 Bushing
8. 21211 Spring
9. 54260 Valve Stem
10. 65289 O-Ring
11. 66878 Cap
12. 67401 T-Handle Assembly
13. 67532 Grip
14. 40072 Extension
Complete Assemblies:
67402 Assembly T-Handle Complete
(Includes Figures 1-14)
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL
NUMBER WHEN ORDERING PARTS
T-Handle Assembly
