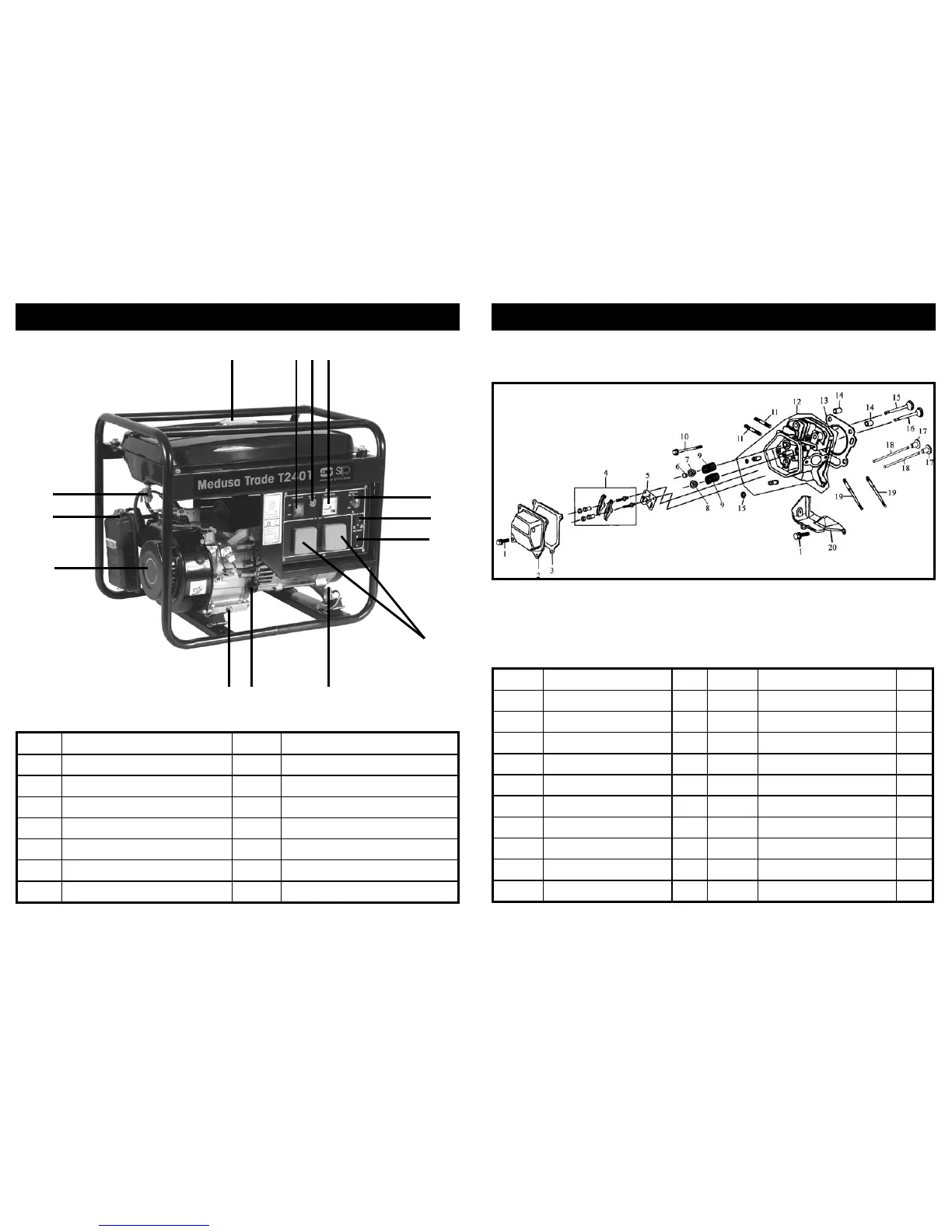

GETTING TO KNOW YOUR GENERATOR
A
B
C
D E F G
H
I
J
K
L M N
Ref: Description Ref: Description
A. Recoil Starter H. AC ~ Overload
B. Air Filter Assembly I. DC Overload
C. Fuel On / Off Tap J. 12v DC Outlet
D. Fuel Cap K. AC ~ 230v Outlets
E. Engine On / Off Switch L. Earth Point
F. Power Indicator Light M. Oil Filler Cap
G. Output Volt meter N. Crankcase Drain Valve
21
EXPLODED DIAGRAM / PARTS LIST
2. Cylinder head / Cylinder cover assembly.
Ref No. Description Qty Ref No. Description Qty
1. Bolt M6 x 12 6 11. Stud 2
2. Cylinder Head Cover 1 12. Cylinder Head Assembly 1
3. Gasket 1 13. Cylinder Head Gasket 1
4. Valve Rocker Assembly 1 14. Set Pin 2
5. Push Guide 1 15. Exhaust Valve 1
6. Cap 1 16. Intake Valve 1
7. Exhaust Spring Seat 1 17. Tappet 2
8. Intake Spring Seat 1 18. Pusher 2
9. Valve Spring 2 19. Stud 2
10. Bolt M8 x 60 4 20. Cover 1
To Next Page
