Sipromac 300 - Page 18

MACHINE
PART
ITEM
MAT.
CNC
3D DWG BY
2D DWG BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
005D0595
SBU
1
M
300 & 300D

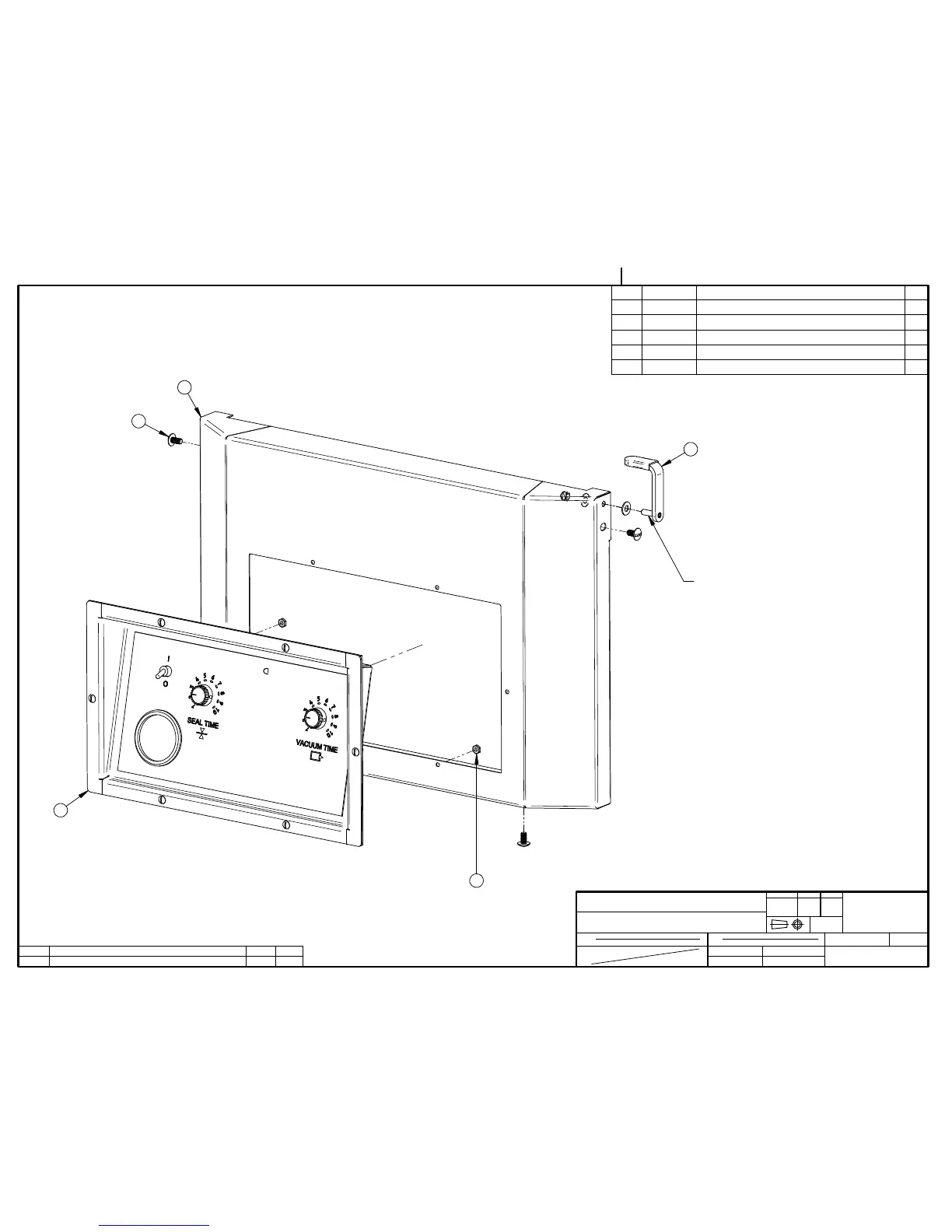

FRONT PANEL ASSEMBLY
15-02-24
005D0595
LET. MODIFICATION DATE INT.
A
005B1446 WAS 005A1446
15-02-24 SBU
-MC-05 OPTION-
SBU
15-02-24
1
2
3
4
5
ITEM PART # DESCRIPTION QT.
1 001E3123 FRONT PANEL 1
2 004B1651 COVER HOLD DOWN ASS'Y 1
3 005B1446 MC-05 CONTROL ASSY 1
4 051-01865 SCREW 1/4-20x 1/2"TRUSS SLOT SS 4
5 051-0571 NUT #10-24 S/S 6
INSTALLER POUR QUE LA BARRURE
PUISSE BOUGER LIBREMENT SANS
JEUX AXIAL
INSTALL SO THAT THE LOCK CAN
TURN WITHOUT AXIAL PLAY
