MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
005A1446
SBU
1
M
300, 300D, 400

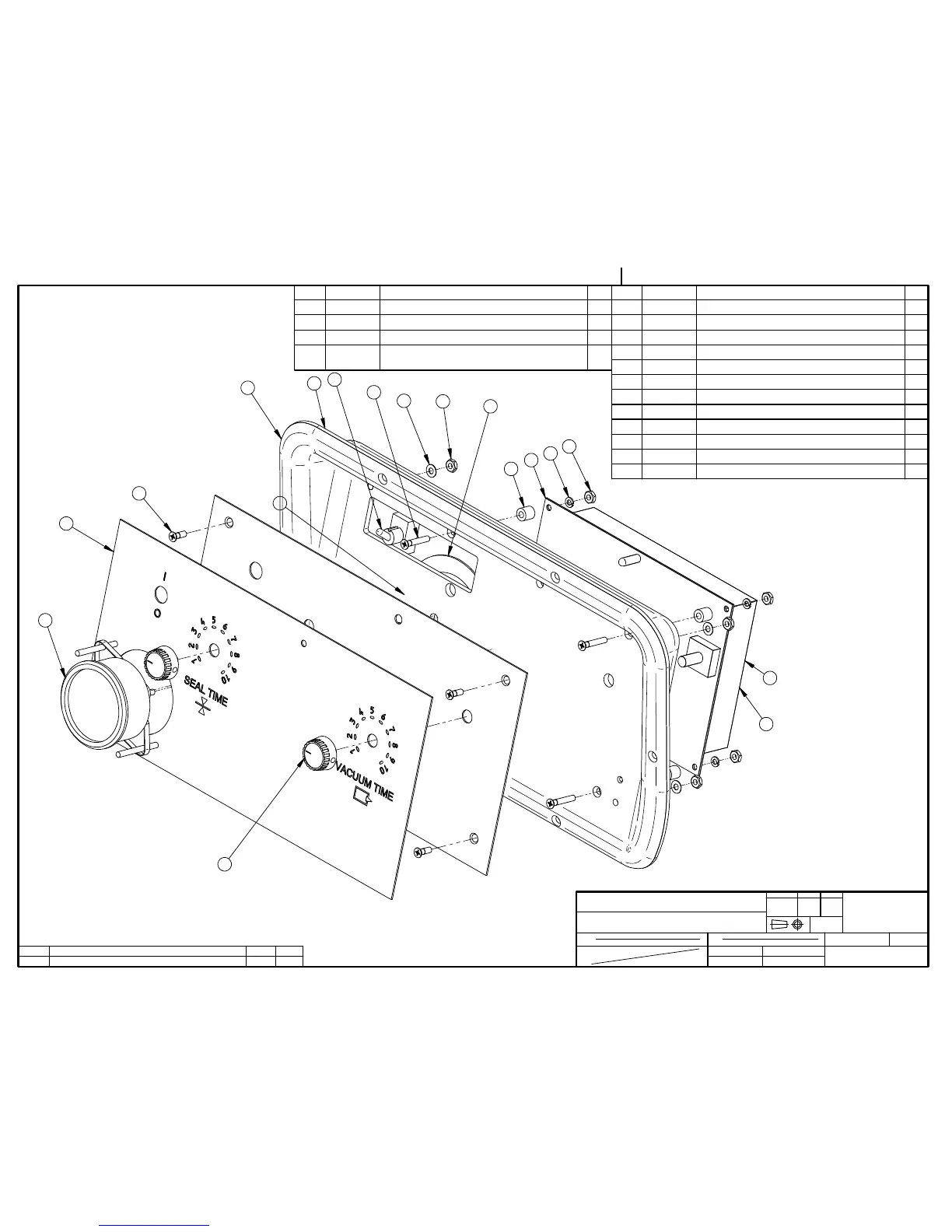

MC-05 CONTROL ASSY
14-02-10
005A1446
LET. MODIFICATION
DATE
INT.
A
001B6619 WAS 001A6619, 008A2051 ADDED
15-01-05
SBU
ITEM PART # DESCRIPTION QT.
1 001-1869 VACCUM GAGE FIXATION RING 1
2 001B6619 MC-05 PANEL 1
3 003A0408 CONTROL INSERT REWORK 1
4 008A2051 MC-05 STICKER 1
5 033-0046 MICROPROCESSOR MC-05 120 VOLTS 1
6 033-0047 MICROPROCESSOR MC-05 220 VOLTS 1
7 033-0110 KNOB FOR POTENTIOMETER 2
8 033-5000 TOGGLE SWITCH AC/DC ON/OFF 1
9 051-0109 SCREW #8-32 X 1/2" FLAT PHIL S/S 4
10 051-0121 SCREW #8-32 X 1" FLAT PHIL S/S 4
11 051-0550 NUT #8-32 SS 8
12 051-0720 WASHER #8 FLAT S/S 4
9
15
3
16
12
11
14
5
13
11
10
8
7
5 120V
6 220V
1
ITEM PART # DESCRIPTION QT.
13 051-0721 WASHER #8 (4mm) LOCK S/S 4
14 058-0130 CPVC SPACER #8 x 3/8" OD x 3/8" 4
15 114-0260 VACUUM GAGE W/ SUPPORT 1
16 179-0004 NITRILE 1/2'' X 1/8'' AUTOCOLLANT X
1220mm long
1
1
4
