Sipromac 300 - Page 22

004B0173
J.G.
LISTE
M-(M)
300, 300D, 350 & 350D

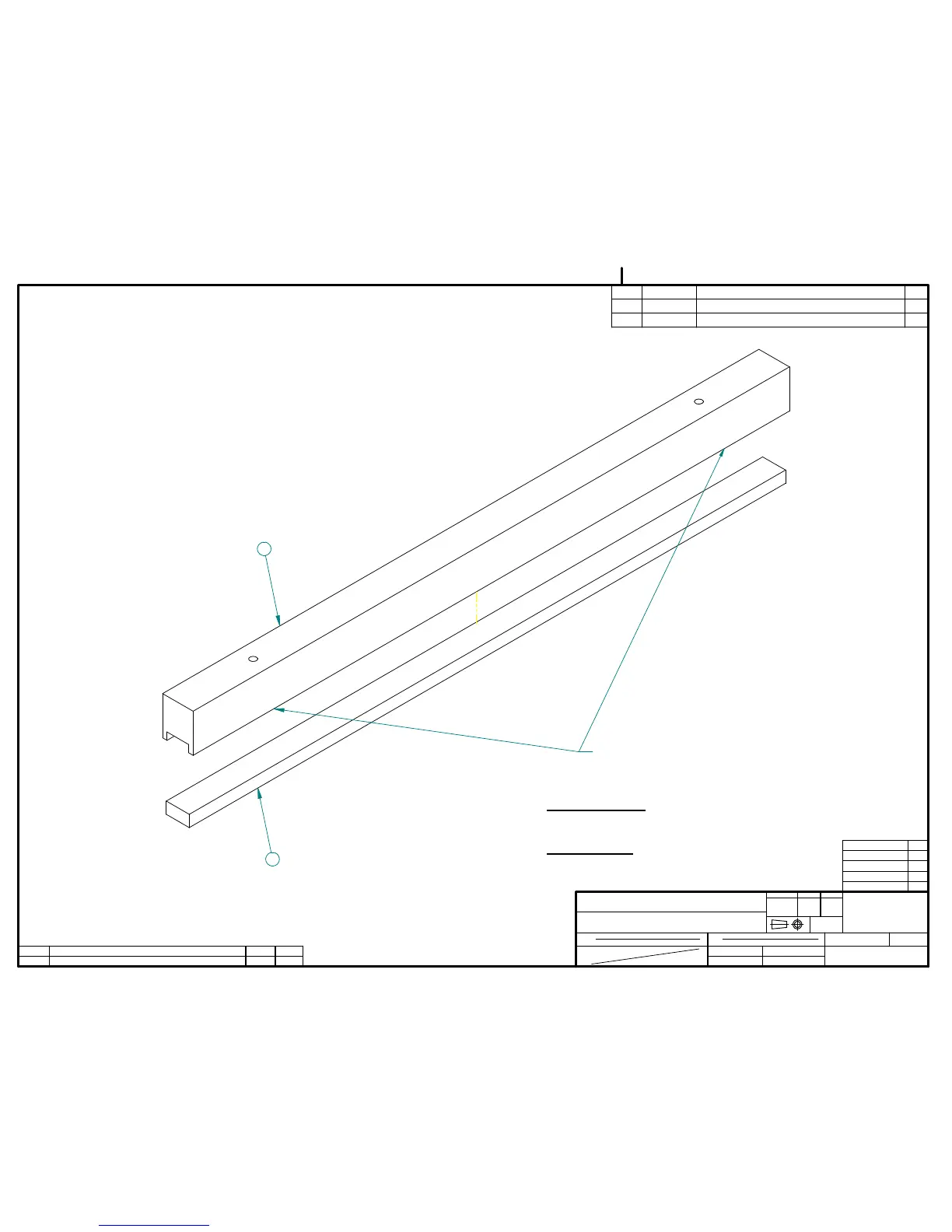

UPPER SEAL BAR PRE-ASS`Y
12-10-15
004B0173
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE INT.
F
REDESSINÉ MODIF. #A-462
12-10-15 J.G.
QTY
MACHINE
2
350D
1
350
2
300D
1
300
-ATTENTION -: BOUCHER EN SURFACE
SEULEMENT POUR NE PAS NUIRE AU BOULONNAGE
-WARNING -: FILL ONLY ON THE SURFACE, SO
IT WILL NOT OBSTRUCT THE BOLTING
1
2
ITEM PART # DESCRIPTION QT.
1 002B0377 UPPER SEAL BAR SUPPORT 1
2 008A0291 UPPER SEAL BAR RUBBER 1
BOUCHER LES TROUS AVEC SILICONE (1690200)
FILL THE HOLES WITH SILICONE (1690200)
