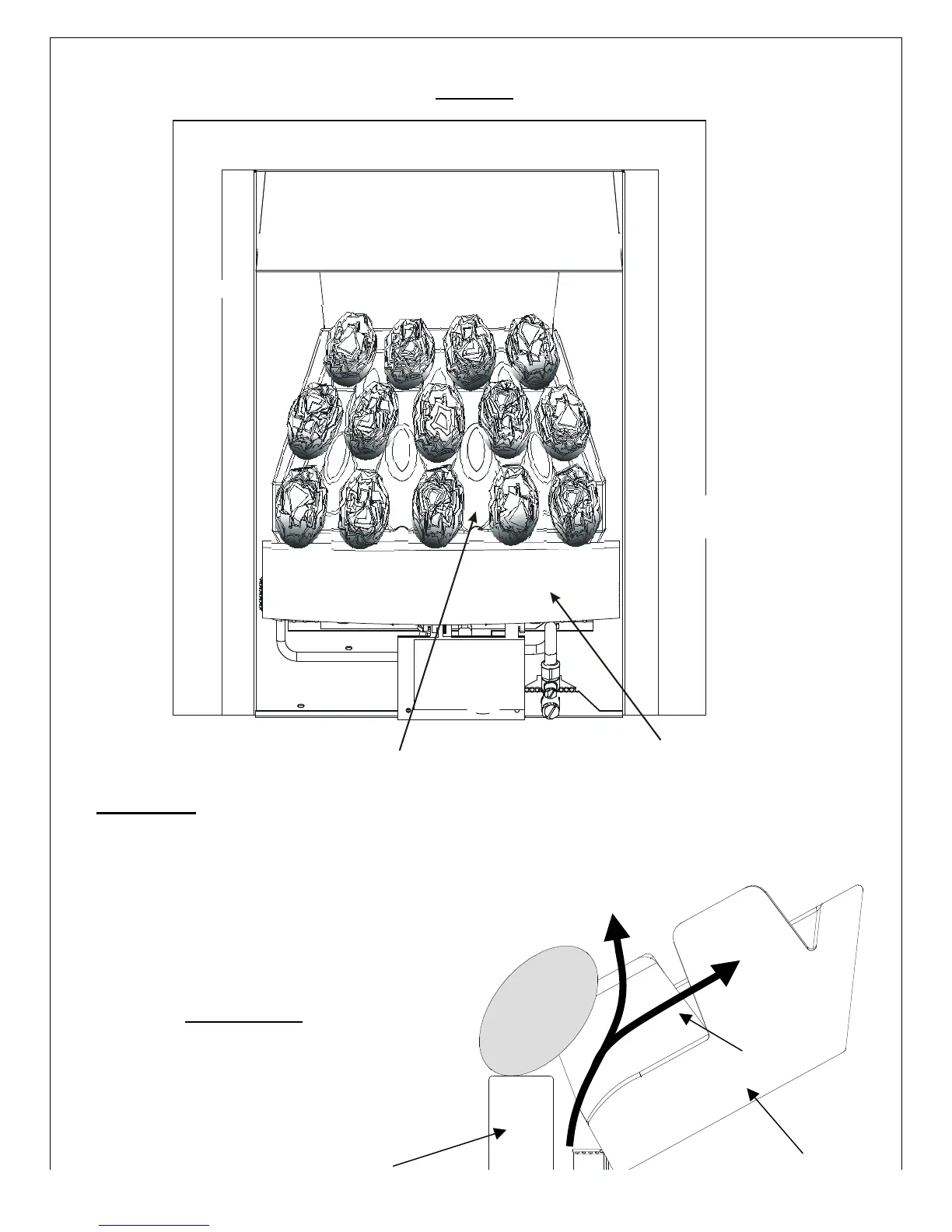

Figure 2A
(eco 1,2&3)
Place 5 coals / pebbles on the front ceramic, 5 on the middle row of the floor matrix and 4 on the
back row.
As shown in figure 2A
The Coals/Pebbles MUST be placed, sitting
on-top of the front ceramic resting between
the pillars of the floor matrix.
(as shown in fig 2A and fig 2B )
This allows the flame path to take its correct
direction.
REAR MATRIX
FRONT MATRIX
REAR MATRIX
FRONT MATRIX
FLAME PATH
Figure 2B
