第 6 页

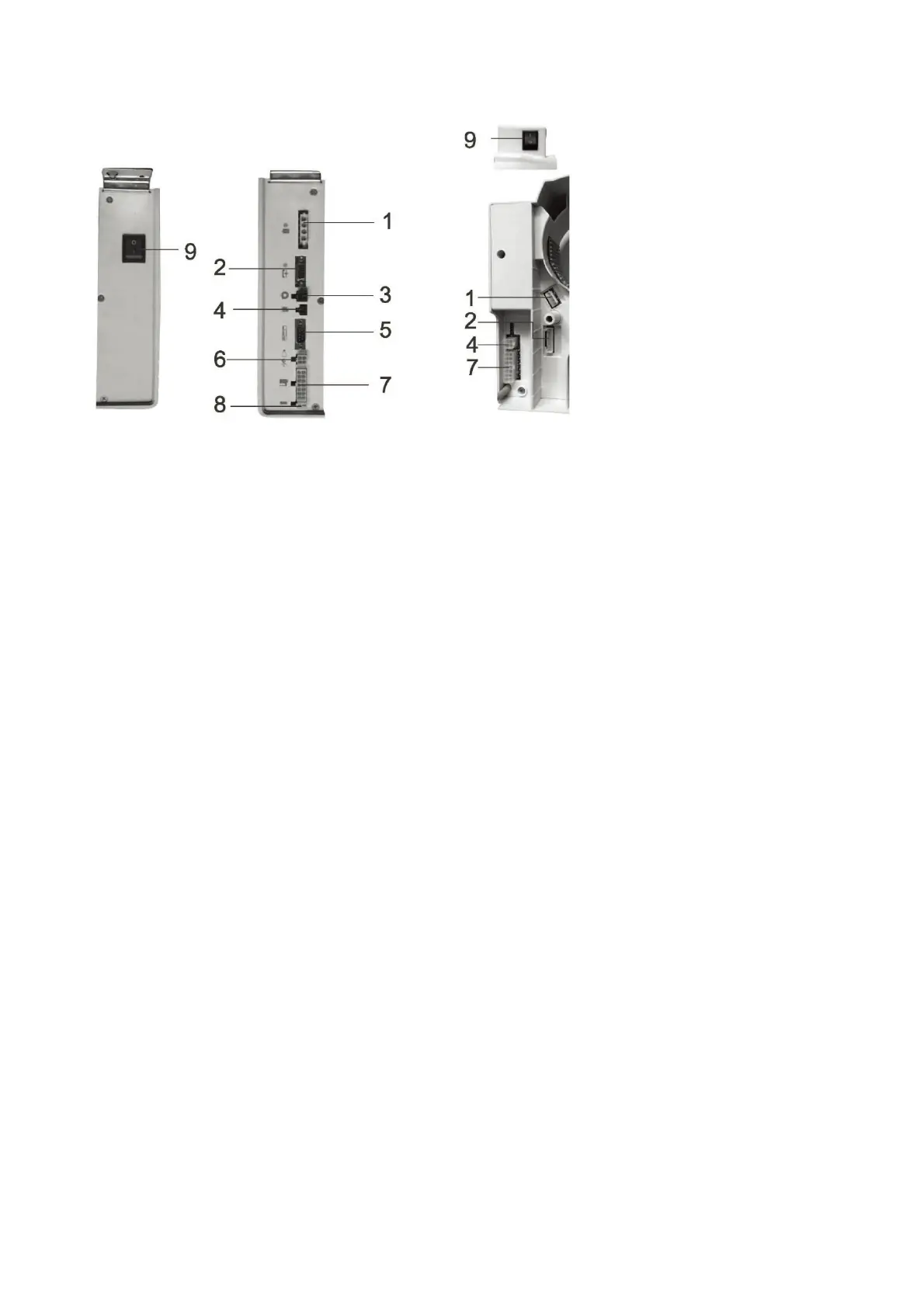

2.1.5 接外掛程式插口說明：
a 70T b 70E2
①電機插口②電機編碼器插口
③機頭定位器插口④腳踏開關插口
⑤操控盒插口 ⑥5V 燈和安全開關插口
⑦電磁鐵插口(黃綠線為接機頭接地線)
⑧夾線電磁鐵插口⑨220V 電源開關
按端子座面板的指示插接各連接線，DB 插頭要插牢後鎖緊，其餘的插頭插緊後確定其鎖扣已扣牢。
