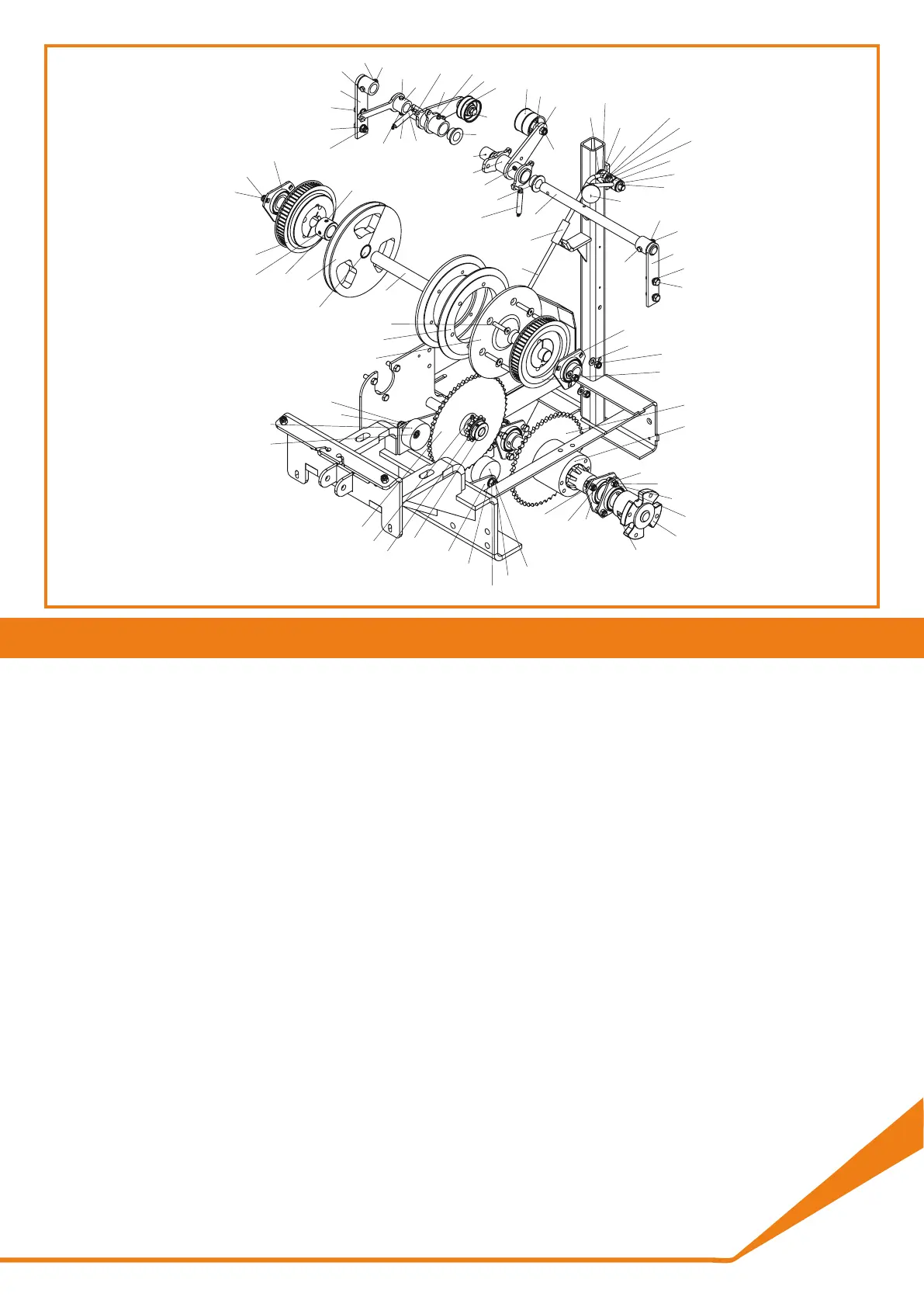

2.02 Drive Assembly 2
Item No. Part No. Description Quantity
5 401650 Axle Diff M/C 1
17 402042 Pulley 1
18 402045 Pulley 1
19 402048 Pulley 1
20 402051 Spacer 1
21 402052 Spacer 1
22 402054 Collar 2
27 402077 Tensioner Arm 1
39 402118 Top Shaft 1
41 402120 Tensioner Block 2
42 402121 Tension Pivot 1
43 402122 Tension Pivot 1
44 402123 Spring Retainer 1
49 D1792 Extension Spring 2
50 D1947 Grease Nipple M6 9
51 D1955 Oilite Bush 25ID, 30OD, 25LG 2
52 D1986 Hex Set Screw M5 x 20 1
54 D8068 Grub Screw M6 x 12 4
56 D8295 Pulley 1
57 D8435 Pulley 1
58 D8522 Cap Head M10 x 35 2
61 E1-1100 Hex Set Screw M6 x 35 2
62 E1-1116 Hex Set Screw M8 x 70 2
68 F21150 Bearing 2
74 F21784 Key 8 x 7 x 30 4
75 F21872 Bearing 4
76 F21885 Oilite 6
79 F21923 Oilite 2
83 F21989 Pulley Assembly 2
88 F33607 Wheel Hub 2
93 F36340 Duel Sprocket 1
94 F36345 Pully & Sprocket 1
95 F36346 Spacer 1
98 F36375 50T Plate Sprocket 1
103 F36510 Drive Lever 1
107 F37184 Top Mount 2
113 F37284 Over Centre Rod 1
114 F37285 Rod 1
120 J20406 Split Pin 3/32” x 1” 2
Item No. Part No. Description Quantity
122 J20467 Grub Screw M8 x 8 2
125 SP01009 Hex Set Screw M8 x 20 12
126 SP01013 Hex Set Screw 3/8” UNF x 2” 2
132 SP01045 Hex Set Screw M8 x 25 28
139 SP01121 Csk Cap Head M8 x 40 6
140 SP02002 Nut M5 Nyloc (T) 1
141 SP02004 Nut M6 Nyloc 14
142 SP02006 Nut M8 Nyloc (T) 44
144 SP02008 Nut M10 Nyloc (T) 10
148 SP02018 Nut 3/8” Unf Nyloc (T) 2
151 SP03008 Washer M8 Form A 54
153 SP03010 Washer M6 Form A 8
154 SP03011 Washer M10 Form A 2
155 SP03012 Washer M12 Form A 17
157 SP05010 Split Pin 1/8” x 1” 1
Not Shown
- F21890 V-Belt 3
- D1558 Chain To Axle 1
- D1873 Chain To Layshaft 1
