Sisis DART - Page 9

DART SEPT ‘12
9

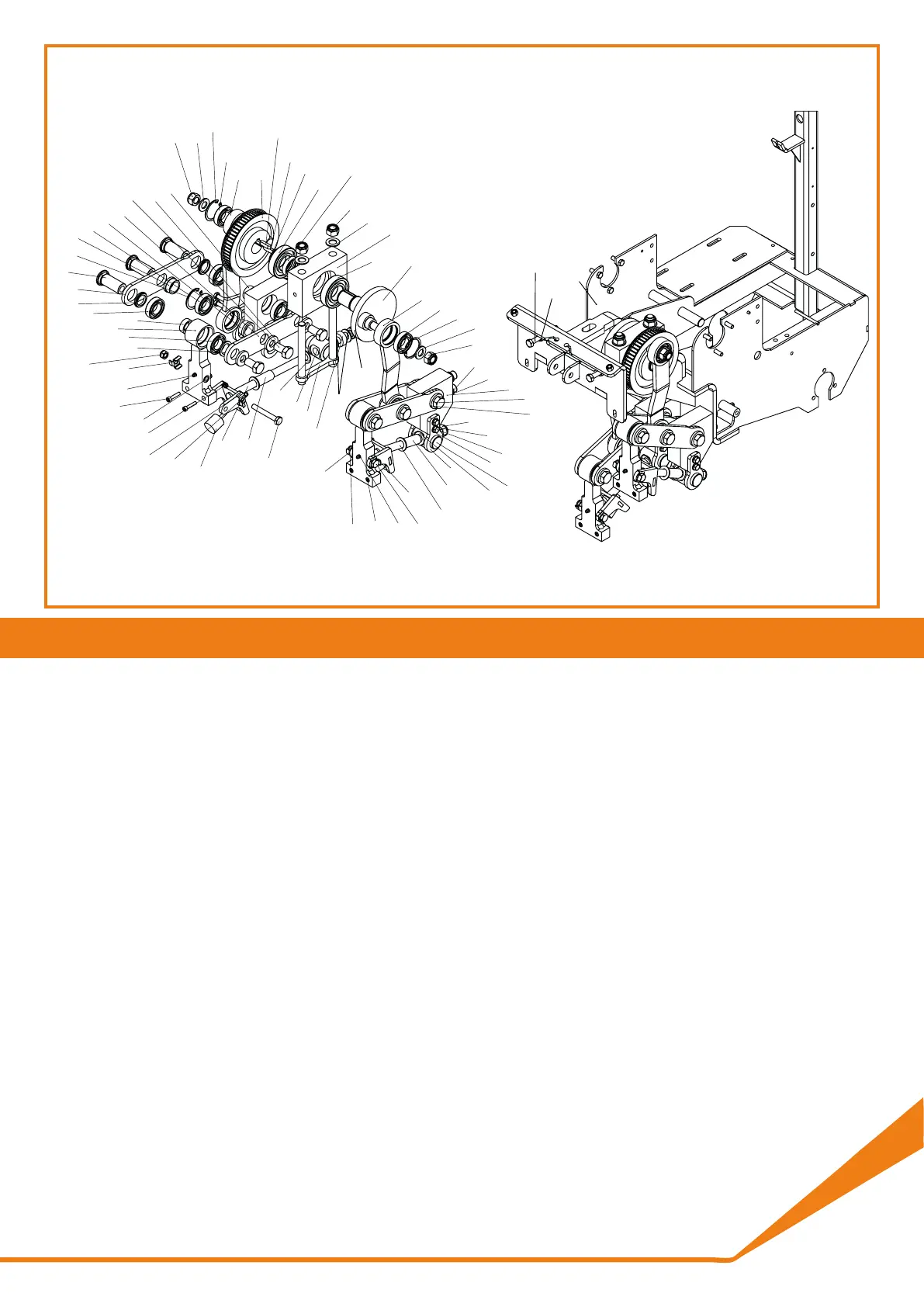

2.01 Drive Assembly 1
Item No. Part No. Description Quantity
1 62276 Bearing 6207-2RS 3 4
2 400496 Plate 8
3 401642 Tab Washer 8
7 402022 Timing Crank 2
8 402023 Drive Crank 2
9 402031 Crank 4
10 402034 Spacer 8
11 402035 Spacer 16
12 402036 Spacer 8
13 402037 Link Arm Plate 4
14 402038 Link Arm Plate 4
15 402039 Pivot Pin 12
16 402040 Washer 12
25 402075 Washer 4
26 402076 Spacer 2
28 402080 Bearing Block 2
29 402081 Block Clamp 2
36 402111 Tine Holder 4
37 402112 Bearing Housing 4
38 402113 Spring Fork 4
50 D1947 Grease Nipple M6 9
55 D8259 Bearing 6005-2RS 24
73 F21739 Rubber Buffer 7
74 F21784 Key 8 x 7 x 30 4
81 F21983 Bush 8
82 F21987 Compression Spring 4
89 F35946 Shaft Swivel 4
99 F36407 Spacer 4
121 J20430 Cap Head M6 x 30 8
123 J209006 Circlip 47 M1308-0470 8
124 J209012 Washer M16 Form B 16
131 SP01037 Hex Set Screw M16 x 30 12
132 SP01045 Hex Set Screw M8 x 25 28
137 SP01119 Hex Bolt M10 x 75 (8.8 HT) 4
138 SP01120 Cap Head M12 x 35 8
141 SP02004 Nut M6 Nyloc 14
142 SP02006 Nut M8 Nyloc (T) 44
144 SP02008 Nut M10 Nyloc (T) 10
Item No. Part No. Description Quantity
149 SP02028 Nut M16 Nyloc (T) 12
150 SP02029 Nut M16 Lock (Thin) 4
151 SP03008 Washer M8 Form A 54
155 SP03012 Washer M12 Form A 17
158 SP07009 Circlip D1400 - 035 2
Not Shown
- F21862 Timing Belt 2
149
25
123
55
9
7
74
74
158
1
26
149
124
28
1
29
9
8
55
123
25
149
150
124
99
89
124
3
138
155
37
131
16
149
150
132
151
89
124
2
82
38
3
137
50
121
144
10
16
131
13
12
55
12
123
15
14
11
55
10
36
55
11
137
82
38
144
73
142
3
141
81
121
50
3
129
147
35
