AG 02 V4 30 / 80
Seite / Page 30
Step 3

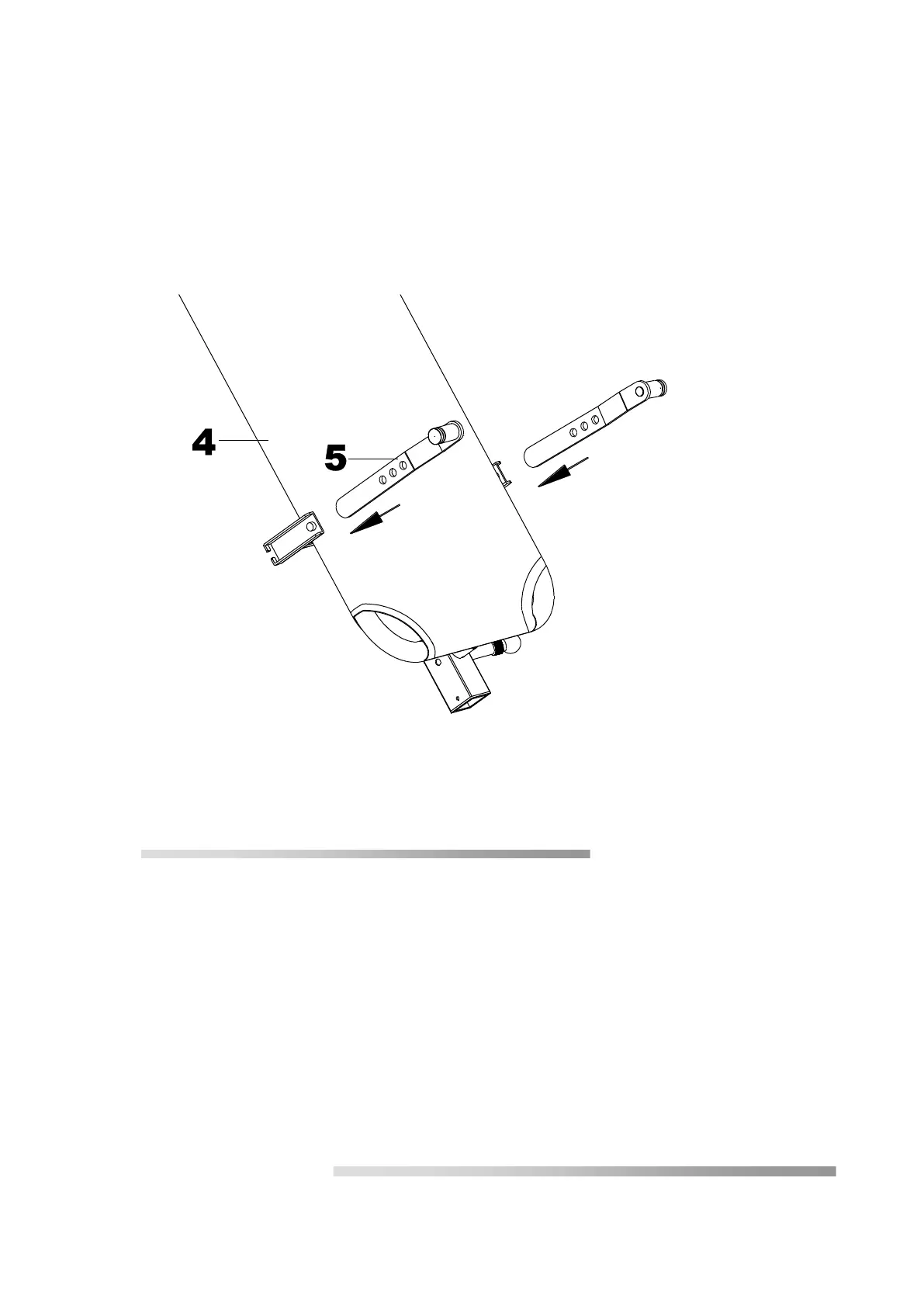

Slide the lower end of the pivot arm (5) from above into the retainers attached to each side of
the table. The axis must be pointing outwards and the table upwards (nameplate on top).
Slide each of the pins into one of the three position openings in the pivot arm. The positions
must be the same on both sides.
TIP: Start with the lower position opening until you are familiar with the device.
