SISTEMA TR2 - Parts Drawing and List; Component Identification; Key Cautions for Assembly

1
2
5
3
caution
- 7 -

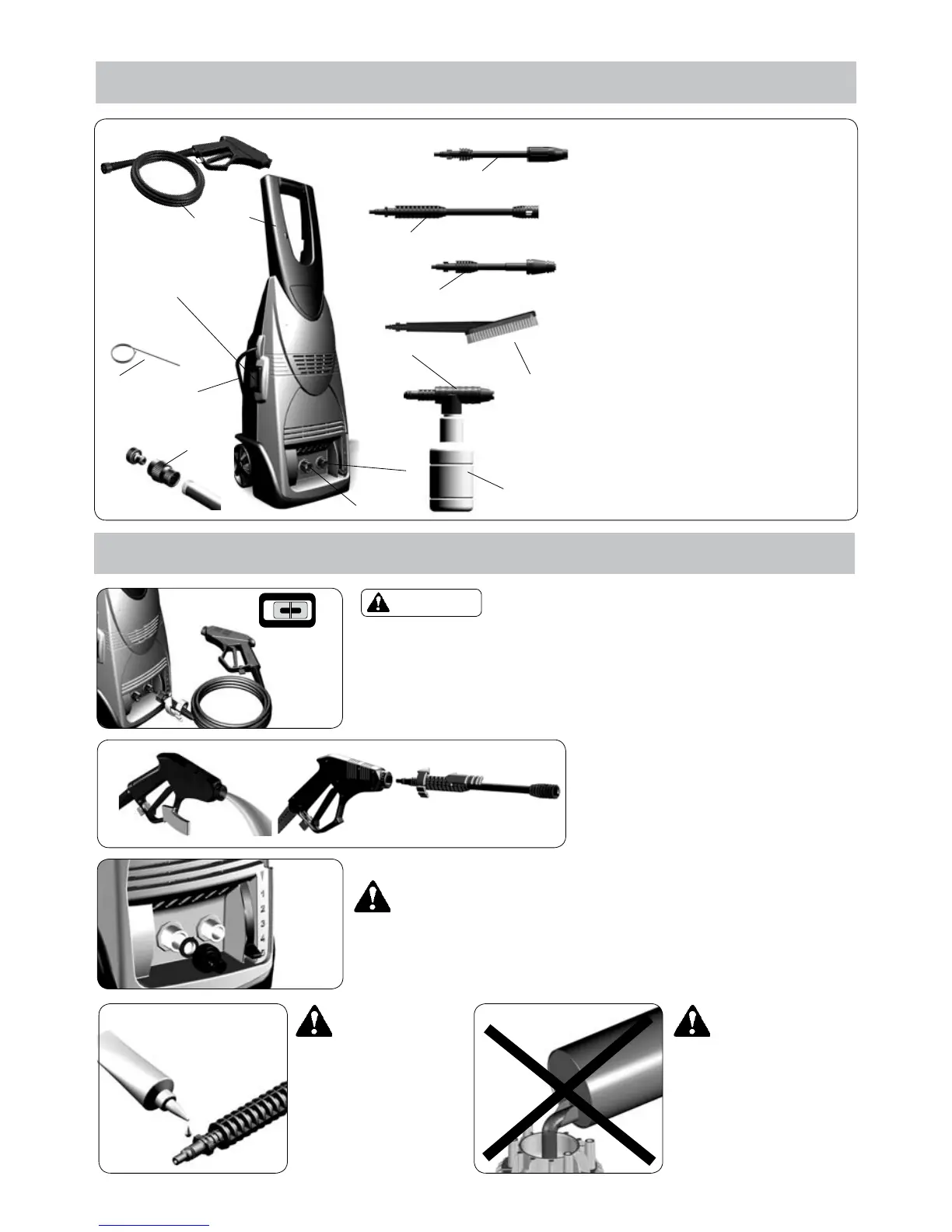

partS draWing & partS liSt
POS. No. CODE No. DESCRIPTION
1. Water inlet
2. Water outlet
3. 2410073 ON/OFF switch
4. 2440018 Power supply cord
with GFCI plug
2440025 Power supply cord
with NEMA plug
5. 3310182 Handle
6. 2210004 Detergent bottle
7. 1410009 Detergent spraying
attach.
8. 1410059 Gun and hose
9. 1410062 Adjustable lance
10. 1410050 Extension
11. 1410056 Turbo lance
12. 8100001 Fixed brush
13. 3350006 Nozzle cleaning pin
14. 2210019 Garden hose
connection
13
14
9
10
11
12
ONOFF
Do not point wand at self or others.
With wand trigger pulled, push startbutton on washer.
WARNING
BEFORE START UP ALWAYS OPE-
RATE THE MACHINE WITHOUT
THE LANCE.
ALWAYS USE THE EXTENSION.
Clean the filter
Periodically inspect the suction filter in order to avoid obstruc-
tion and damage to the machine operation.
Sand, limestone and furrings damage the pump valves.
Priming soiled water invalidates the warranty!
Use multi
purpose grease or oil
to lubricate the
o-ring on the wand.
The motor/pump
is a sealed system.
No addition of grease is
needed.
7
6
8
4
