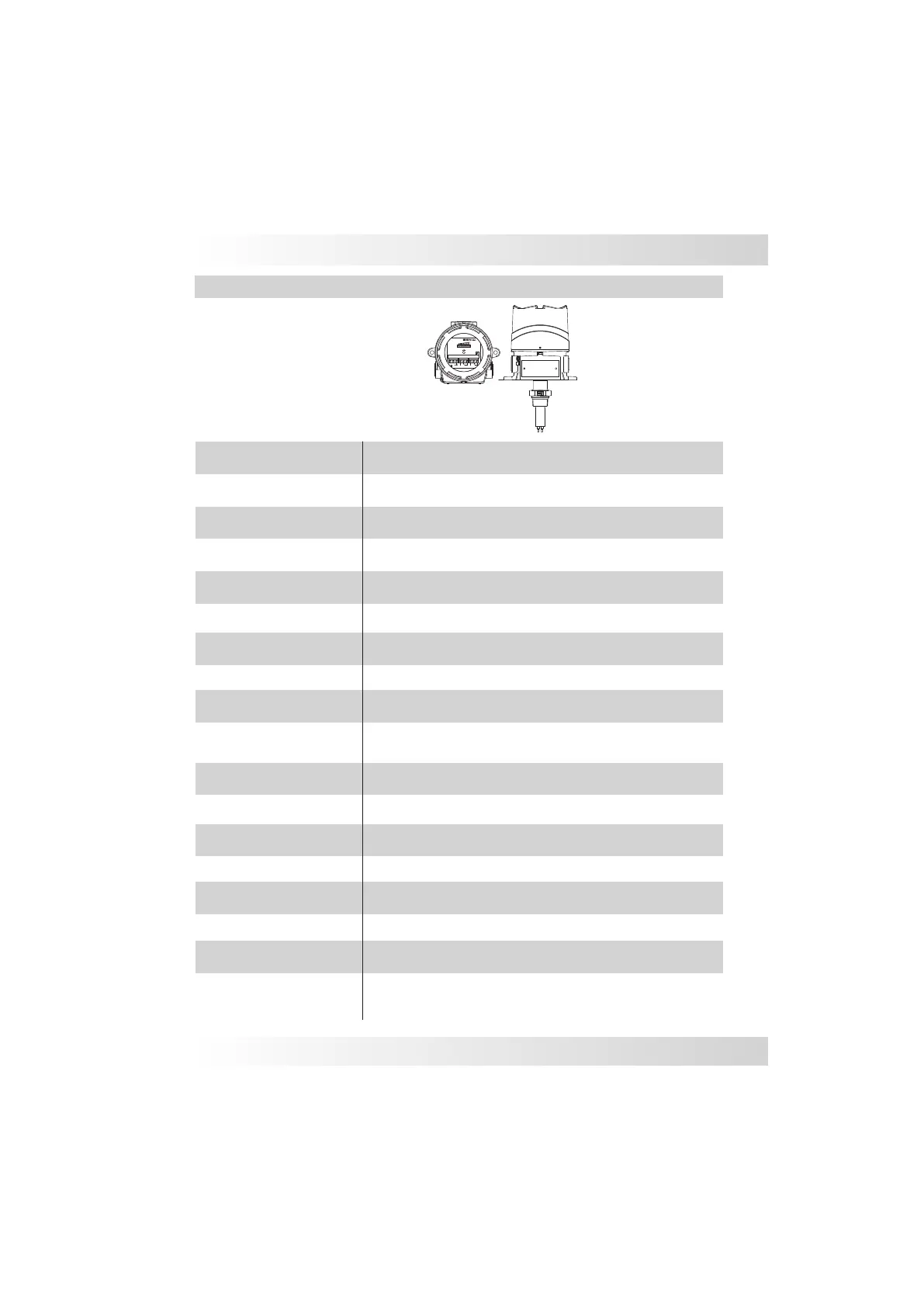

CF12 (Ex d) Housing
Repeatability
Application
Operating Voltage
Current Consumption
Electrical Connection
Operating Temperature
Gradient Temperature
Set Point Range
Output
Flow Rate Indication
Max Pressure
Accuracy
Response Time
Enclosure Material
Wetted Material
Class Protection
Process Connection
+/- 10%
1 to 10s
15ºC/min
Liquid: 3 cm/s to 3 m/s - Gas: 5 cm/s to 5 m/s
+/- 1% setpoint
3/4” NPT
Red led - flow is below setpoint / Yellow led - flow is at setpoint
Green led - flow is above setpoint
1450 PSI (100 Bar)
IP 66
Aluminum
316 Stainless Steel
½” to 1 1/2” BSP or NPT, adjustable, sanitary or flanged connections
14 to 176º F (-10 to 80ºC) sanitary option to 248ºF (120ºC)
Flow for liquids and gas level for liquids only
AC: 85-240Vac (50/60hz) & 125Vdc
DC: 24Vdc +/- 10%
+/- 100mA
Relay( 2 SPDT) 5A - 250Vac
GX Housing
CF12
Fluxo
100 %0
Ajuste
5A 250Vac
+
-
1 2
3
4
5 6
7 9
8
ATEX, DEMKO 07 ATEX 0622294,
0539 II 2 G EX d IIC Gb / 0539 II 2 D Ex tb IIIC Db
IECE / IECx UL 08.0005 / Ex d IIC Gb / Ex tb IIIC Db
Ex proof
Housing Certification
Technical Specifications
