Sitron CF12 AC - CF12 Wiring Diagrams - G3 and GX Enclosures; CF12 Wiring Diagram - G3 Enclosure; CF12 Wiring Diagram - GX Enclosure

08

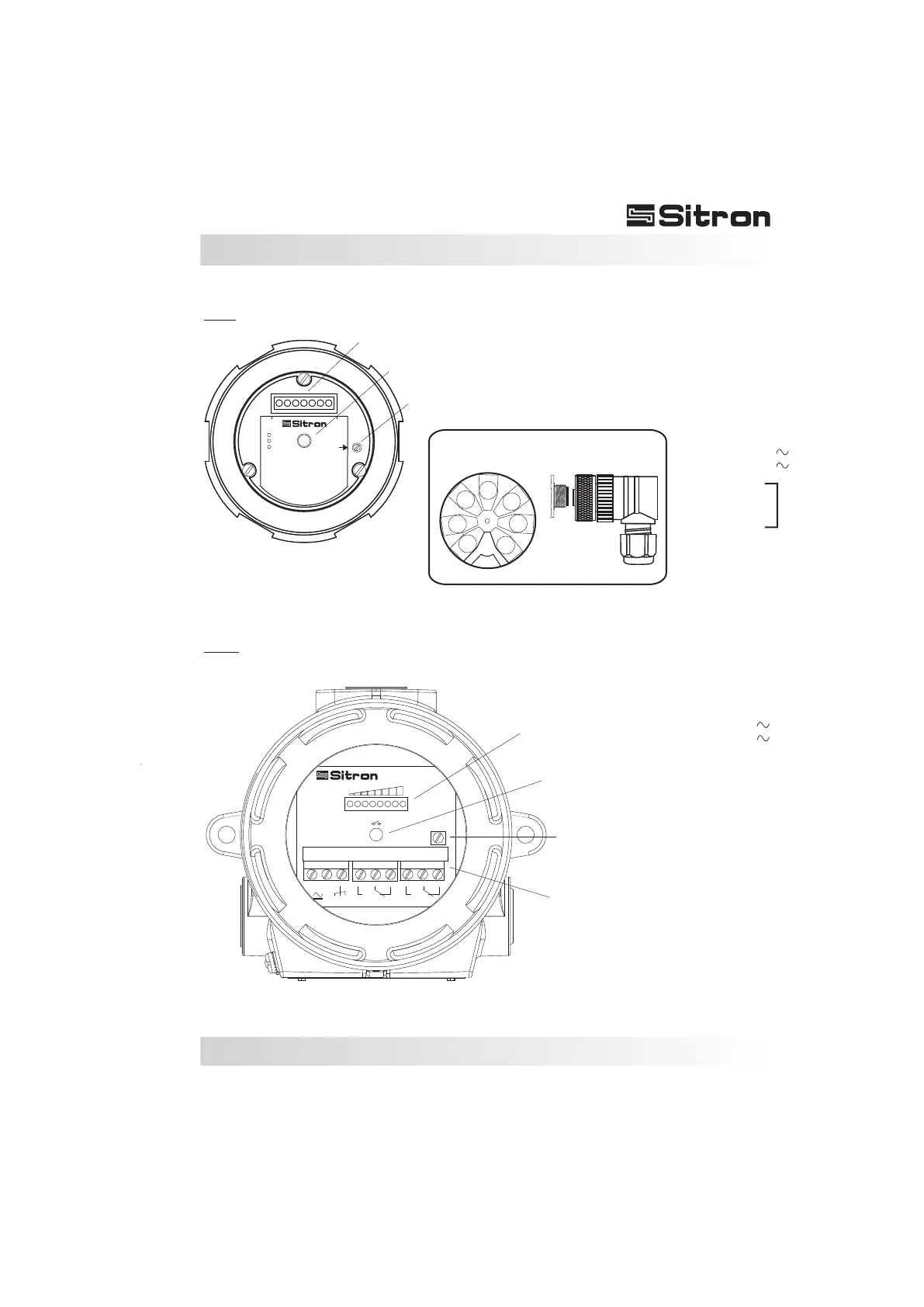

Wiring Diagram
(P1) - Set Point Potentiometer Adjust
(B1) - 8 LED´s Bargraph: Red LED
Yellow LED
Green LED
(L1) - Central LED - Green: With flow
Red: No flow
85...260 Vac 50/60 Hz
Adjust
Pin# 1/2 Power
Pin# 3 Ground
Pin# 4 N.O.
Pin# 5 N.C.
Pin# 6 Neutral
-Detect
-Switch
-Flow
CF12AC
G3
B1
P1
L1
1
2
3
4
5
6
7
Conector M12
8
CF12
Flow
100 %0
Adjust
5A 250Vac
+
-
1 2
3
4
5 6
7 9
8
2 SPDT
Bargraph (B1)
GX
1
2 - Power Supply
3 - Ground
4 - N.O. Contact
5 - N.C. Contact
6 - Common
7 - None
8 - None
- Power Supply
( )
( )
Central LED(L1)
Red/Green
Adjust (P1)
1
2 - Power Supply (-)
3 - Ground
4 - NO Contact
5 - Common
6 - NC Contact
7 - NO Contact
8 - Common
9 - NC Contact
- Power Supply (+)
( )
( )
