SIUI CTS-9009 - 1.7 Measure Data Area

Shantou Institute of Ultrasonic Instruments Co., Ltd.
7

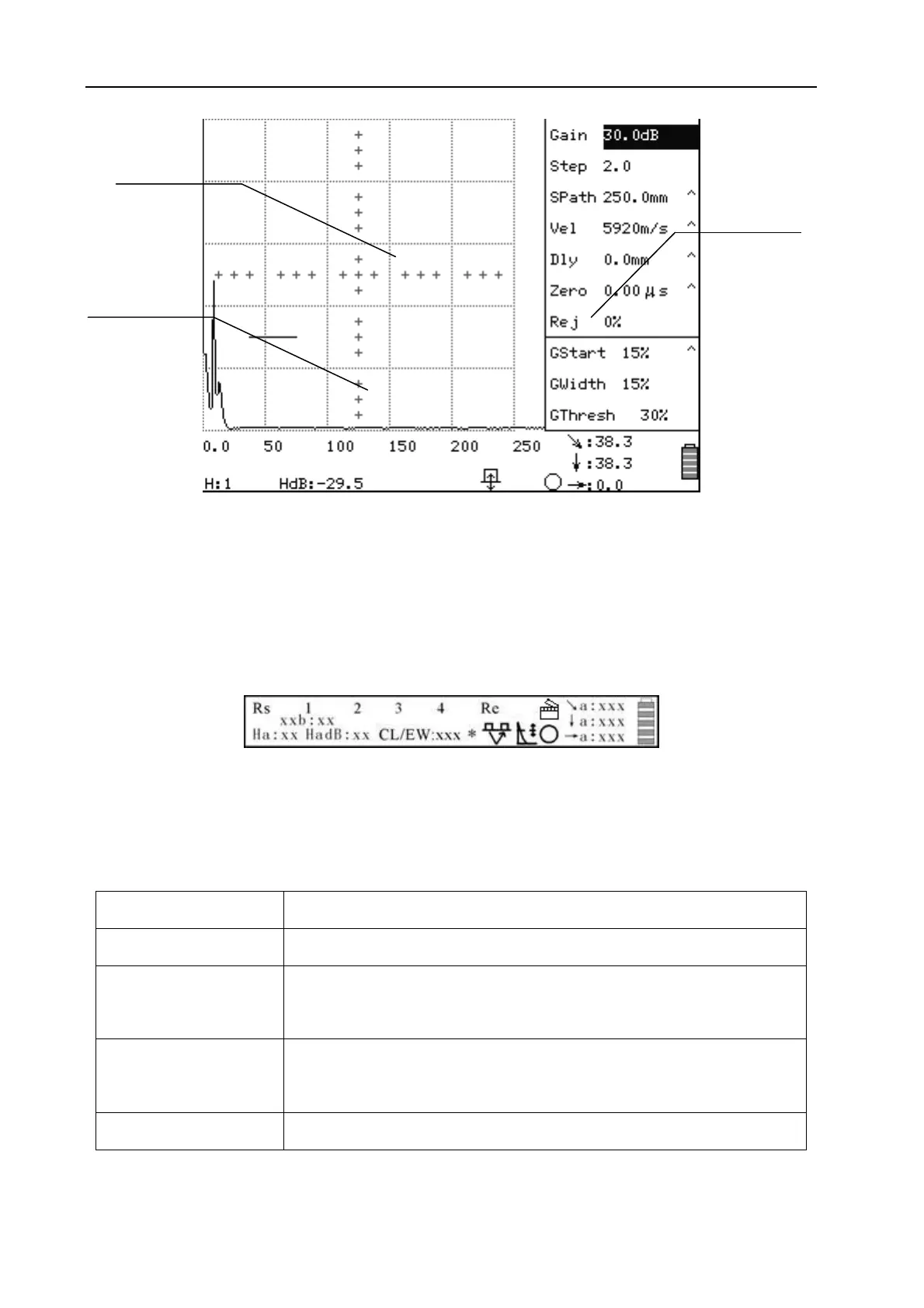

Fig. 1-5 System Display
1.7 Measure Data Area
See Fig. 1-6 for the measure data area, and Table 1-4 for the meanings of parameters and symbols.
Fig. 1-6 Measurement Data Area
Table 1-4 Description of Parameters and Symbols
Parameter & Symbol Description
↘a Echo measurement point sound path within gate a.
↓a
Echo measurement point depth within gate a when testing with an
angle probe.
→a
The horizontal distance between probe flank and echo measurement
point within gate a when testing with an angle probe.
Ha Echo measurement point amplitude percentage within gate a.
Waveform
Display
Measure Data
Menu Display
