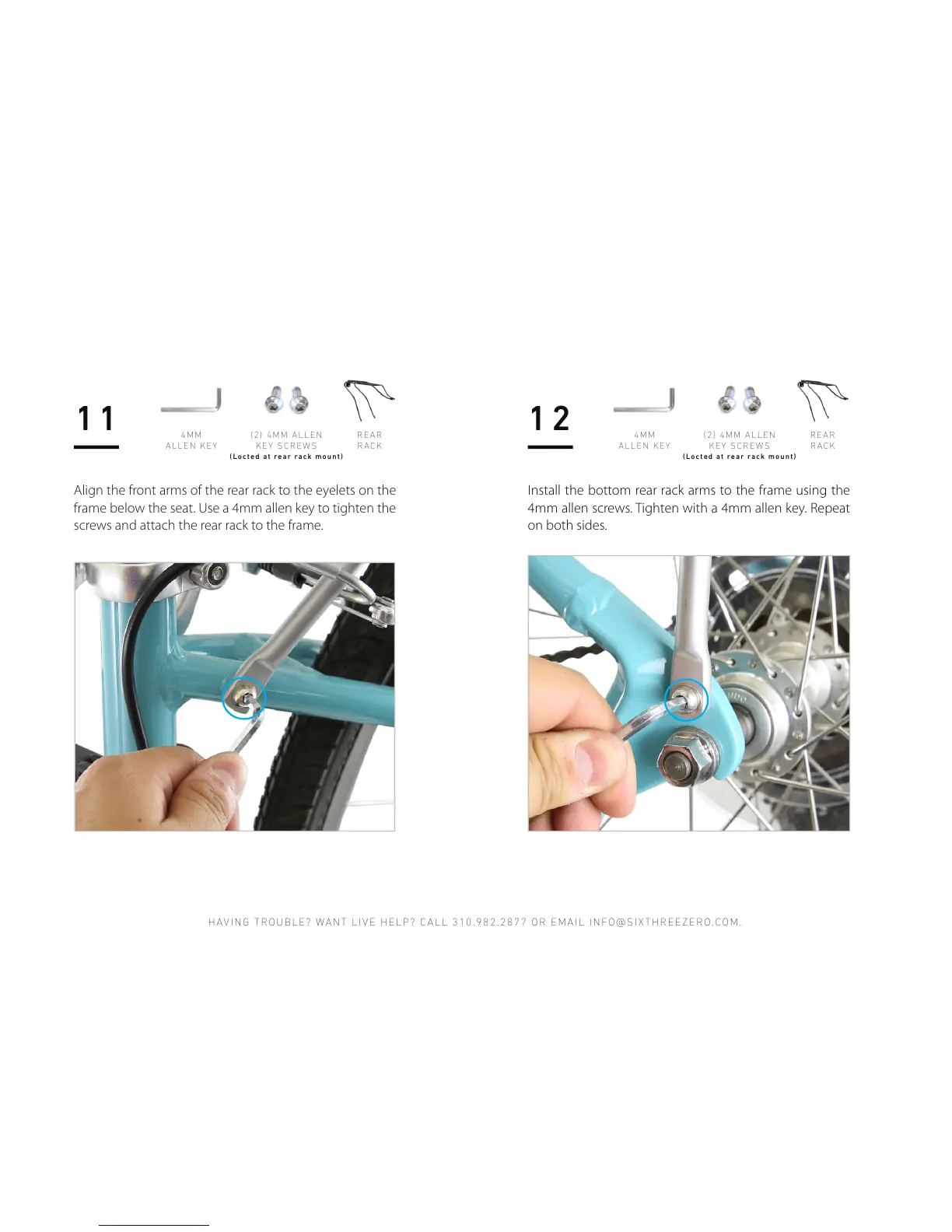

Align the front arms of the rear rack to the eyelets on the
frame below the seat. Use a 4mm allen key to tighten the
screws and attach the rear rack to the frame.
11 12
4 M M
ALLEN KEY
4 M M
ALLEN KEY
REAR
RACK
REAR
RACK
( 2 ) 4 M M A L L E N
KEY SCREWS
( Locted at rear rack mount)
( 2 ) 4 M M A L L E N
KEY SCREWS
( Locted at rear rack mount)
Install the bottom rear rack arms to the frame using the
4mm allen screws. Tighten with a 4mm allen key. Repeat
on both sides.
