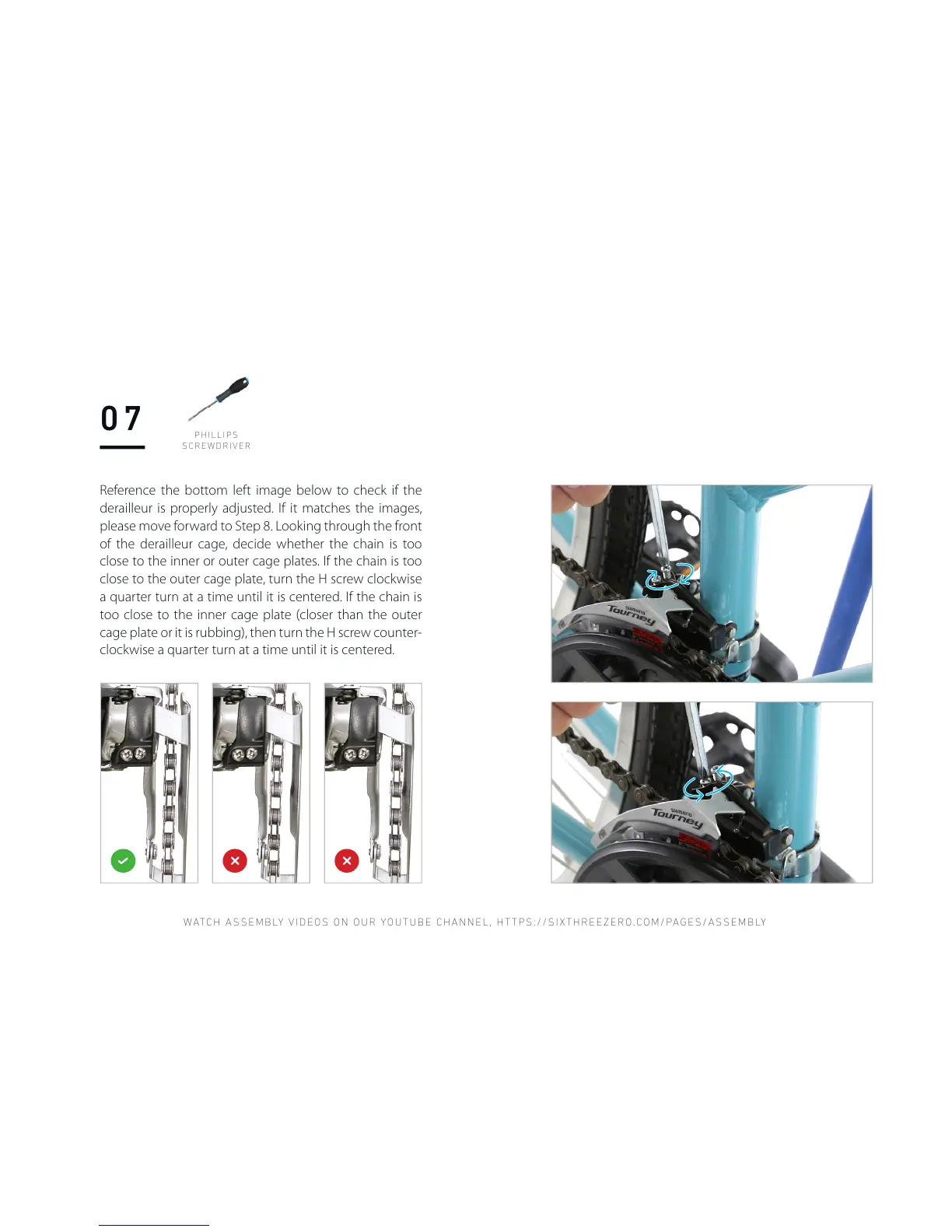

Reference the bottom left image below to check if the
derailleur is properly adjusted. If it matches the images,
please move forward to Step 8. Looking through the front
of the derailleur cage, decide whether the chain is too
close to the inner or outer cage plates. If the chain is too
close to the outer cage plate, turn the H screw clockwise
a quarter turn at a time until it is centered. If the chain is
too close to the inner cage plate (closer than the outer
cage plate or it is rubbing), then turn the H screw counter-
clockwise a quarter turn at a time until it is centered.
07
P H I LL I P S
SCREWDRIVER
