08

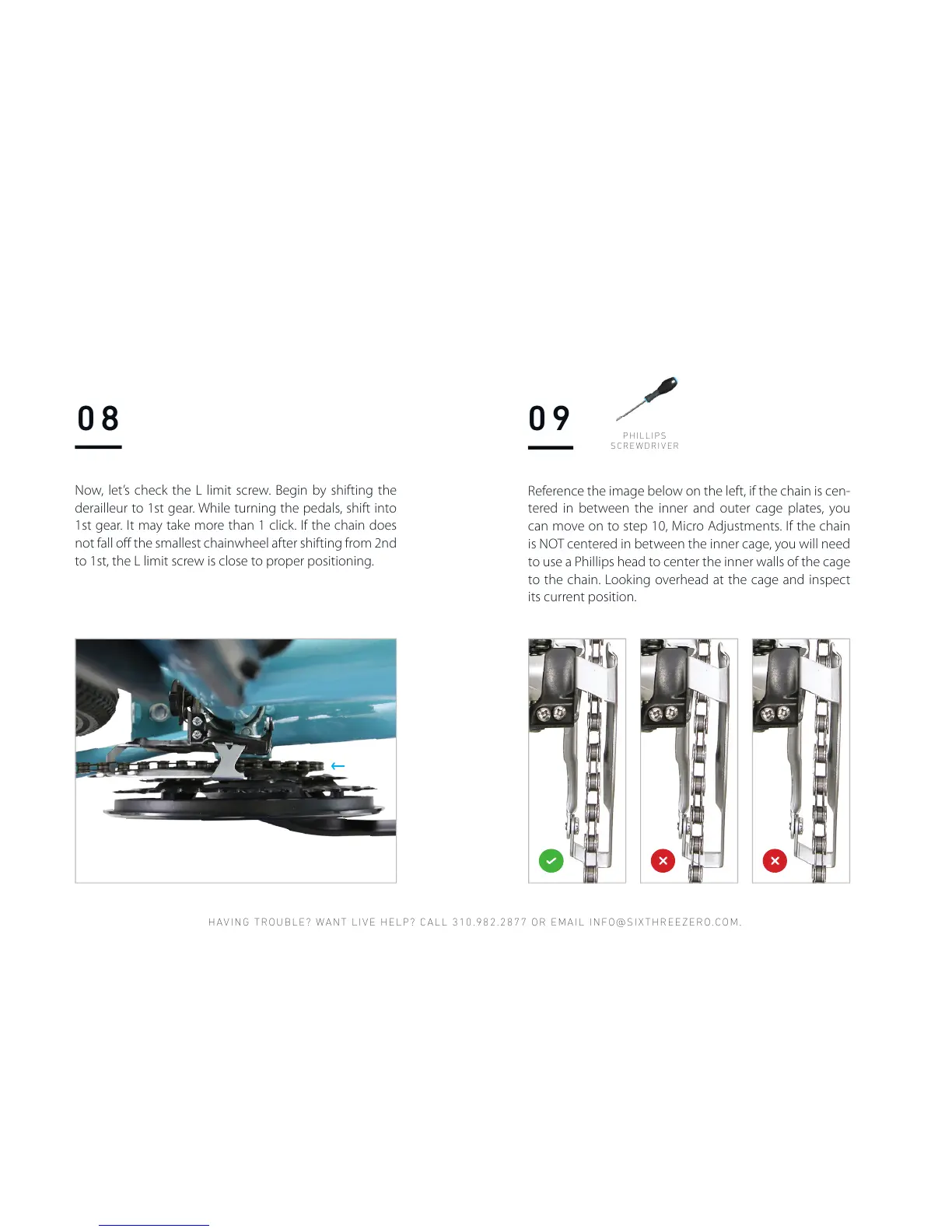

Now, let’s check the L limit screw. Begin by shifting the
derailleur to 1st gear. While turning the pedals, shift into
1st gear. It may take more than 1 click. If the chain does
not fall off the smallest chainwheel after shifting from 2nd
to 1st, the L limit screw is close to proper positioning.
Reference the image below on the left, if the chain is cen-
tered in between the inner and outer cage plates, you
can move on to step 10, Micro Adjustments. If the chain
is NOT centered in between the inner cage, you will need
to use a Phillips head to center the inner walls of the cage
to the chain. Looking overhead at the cage and inspect
its current position.
09
P H I LL I P S
SCREWDRIVER
