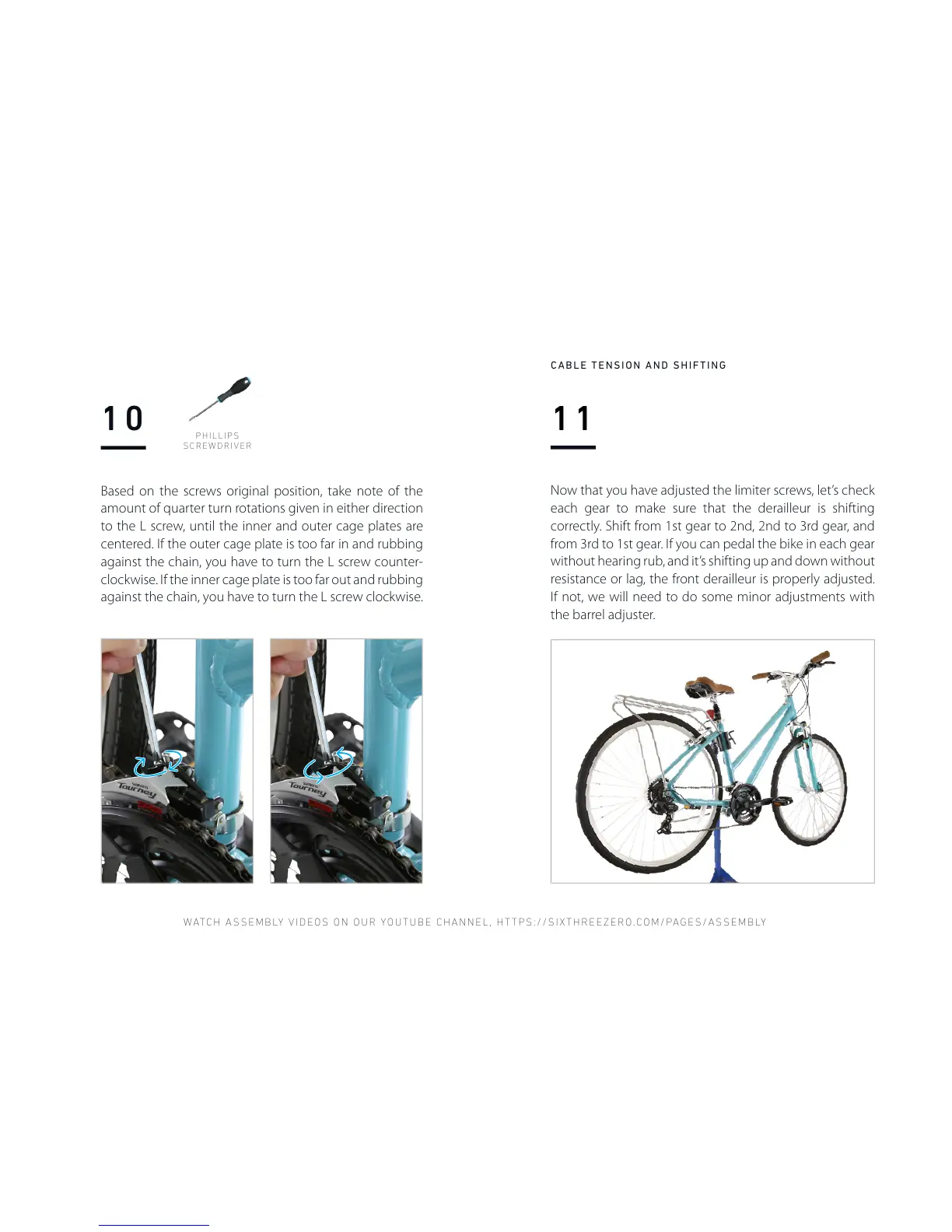

Based on the screws original position, take note of the
amount of quarter turn rotations given in either direction
to the L screw, until the inner and outer cage plates are
centered. If the outer cage plate is too far in and rubbing
against the chain, you have to turn the L screw counter-
clockwise. If the inner cage plate is too far out and rubbing
against the chain, you have to turn the L screw clockwise.
10
P H I LL I P S
SCREWDRIVER
11
Now that you have adjusted the limiter screws, let’s check
each gear to make sure that the derailleur is shifting
correctly. Shift from 1st gear to 2nd, 2nd to 3rd gear, and
from 3rd to 1st gear. If you can pedal the bike in each gear
without hearing rub, and it’s shifting up and down without
resistance or lag, the front derailleur is properly adjusted.
If not, we will need to do some minor adjustments with
the barrel adjuster.
CABLE TENSION AND SHIFTING
