Installing the Voltage Cable

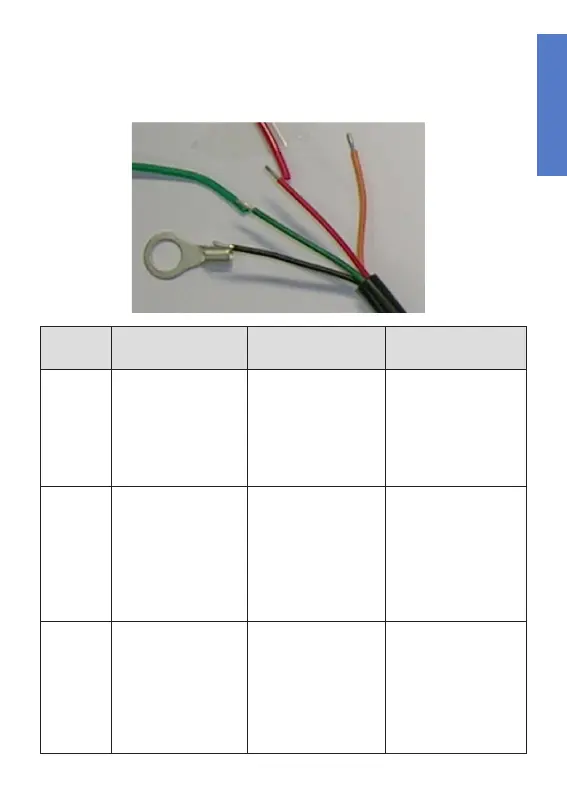

The following chart covers the manner by which the voltage
cable should be connected to the car’s electrical system.
Green: Ignition
Red: VCC
Black: GND
Orange: Mute
(usually unused)
Wire
Color
Function Must be
connected to…
Ensure…
Red
To provide the
device with fixed
voltage
12V/24V fixed
voltage.
Connect with red
fuse case which
provided to a fixed
voltage source (+)
Ensure a 3A fuse
is used
Black
To provide a fixed
minus (–)
Car body (minus) Ensure the
connection point
is on the car body
only.
Use a cable shoe,
tin screw and
springy disc
Green
To turn on the
cellular Device
after switching
the ignition on
and turn it off
after car ignition
is switched off
IGN voltage.
Connect with
green fuse case
which provided
Determine the
correct point with
a voltmeter.
Ensure a 3A fuse
is used
