BASS BOATS
3-17

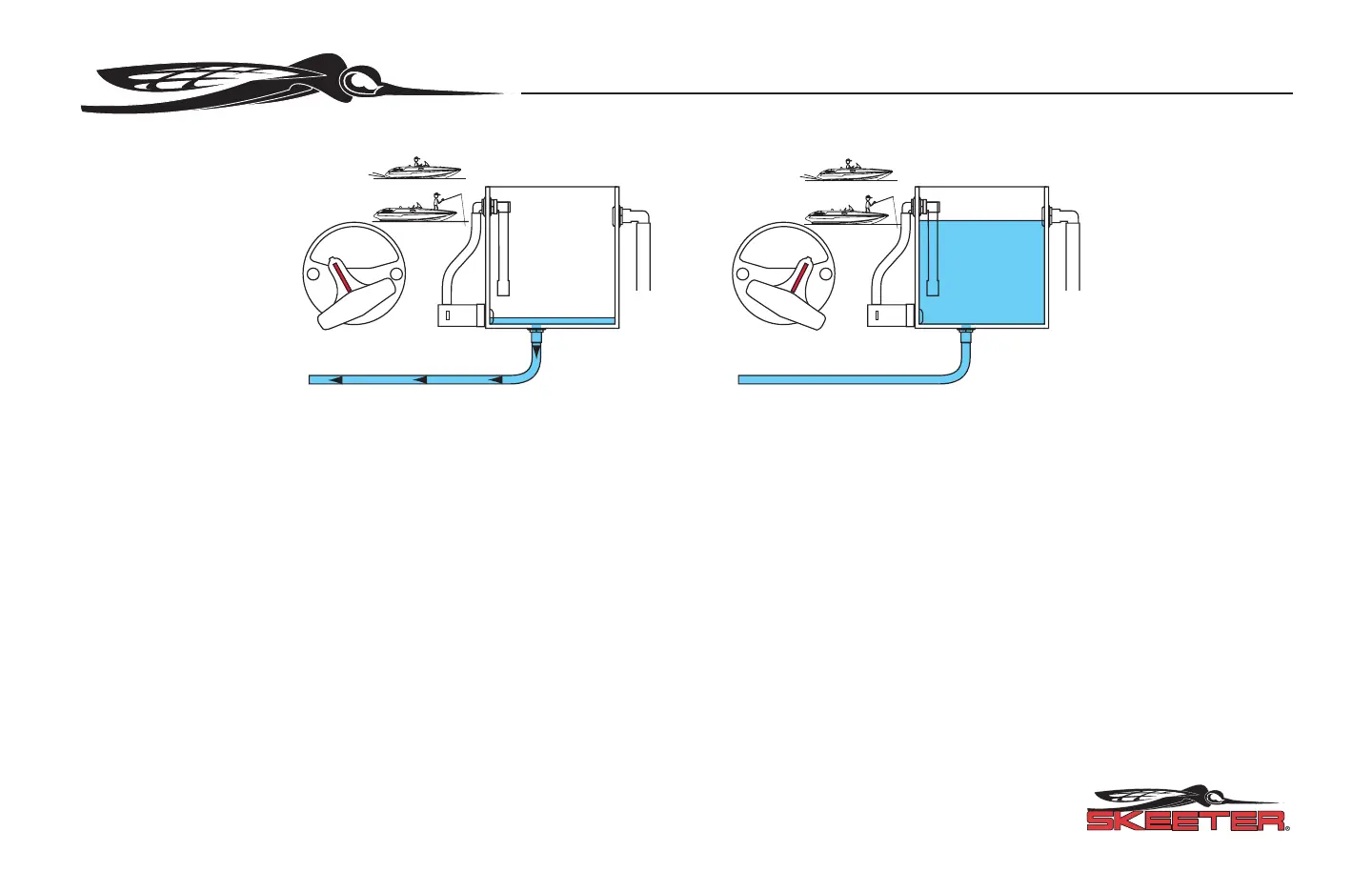

ZX Livewell System
Figure 3-10
Use the selector switch to drain or maintain a full livewell.
OPEN – On/Off plane: Actuator in “OPEN” drains the livewell after the aerators are turned off.
CLOSED – On/Off plane: Actuator in “CLOSED” position is used to seal the livewell when it is full and prevent
water from entering the livewell if it is empty.
9343-021
CLOSED
OFF
OPEN
AERATOR
FILL
CLOSED
OFF
CLOSED
AERATOR
FILL
On Plane
At Rest
On Plane
At Rest
