SKF 086500 Installation Guide

Quick Setup/Installation Guide for Lubrication Monitor Controller LMC 301
951-150-029-EN
8
4. Assembly

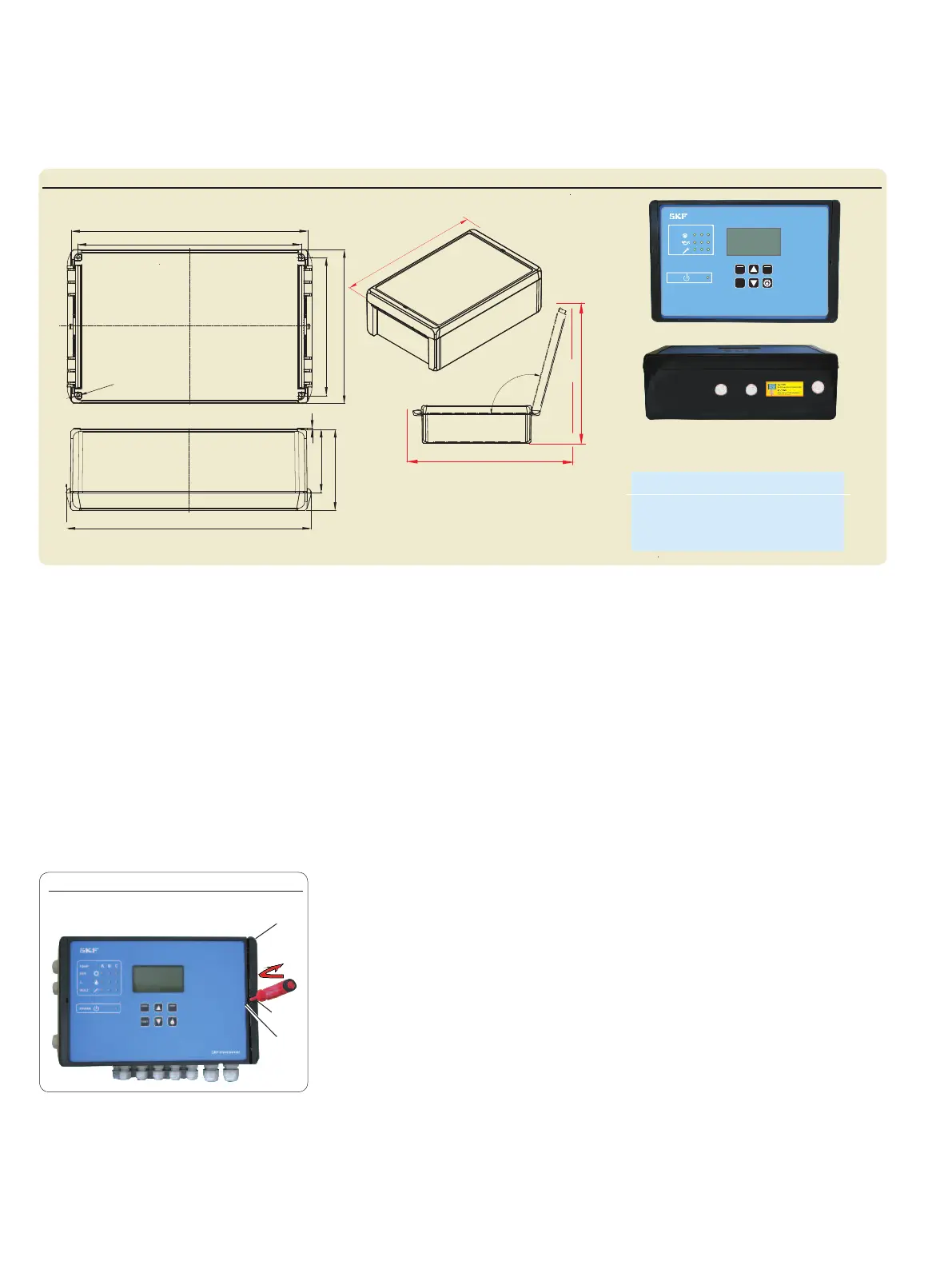

Fig. 1
4.1 Port dimensions, assembly holes, and minimum mounting dimensions
Minimum mounting dimensions
A = width: 12.99 in
B = height 17.72 in
C = depth 13.78 in
4.2 Open the control unit
Opening the controller unit, Fig. 2
• Insert a flat tip screwdriver (1) with a maxi-
mum blade width of 5.5 mm into the open-
ing slot (2).
• Tilt the screwdriver (1) slightly to the right
to open the cover (3).
)Open the cover by briefly clicking and then
opening the cover by hand.
) see Figures 1 and 2
1
2
3
∅
C
B
A
6.02
10.31
9.72
10.67
6.6899
2.76
3.54
105 °
0.17
0.04
PUMP A B C
RUN
LL
FA U LT
POWER
RESET
LMC 301
4.3 Assembly of the control unit
) See Figure 1
The controller unit is installed using 4
cheese-head screws of thread size M4.
If M4 tapped bores are used to fasten the
unit, the screws must have a minimum length
of 15 mm.
Fastening material to be provided by the
customer:
o Cheese-head screws with hexagon socket
4x acc. to DIN6912-M4x. -8.8
o Washers (4x) acc to.
DIN EN ISO 7090-4-200HV
o Self-locking nuts M4 (4x) acc. to
DIN EN ISO 10511; drill assembly holes
(Ø 4.3 mm) acc. to assembly drawing
(Fig. 4) and the conditions on the surface.
• Clean surface to remove drilling chips.
• Open the control unit, place it on the sur-
face and roughly align it.
• Pass cheese-head screws (4x) through
the fixing holes on the controller unit and
mounting surface.
• Apply washers to cheese-head screws,
gently tighten cheese-head screws.
• Align the controller unit, tighten cheese-
head screws.
Torque 4 Nm
