Section 07 REAR SUSPENSION
Sub-Section 01 (SUSPENSION SC-10 HIGH PERFORMANCE, CROSS-COUNTRY AND
07-01-6
1. 1
st
hole
2. 2
nd
hole
A. 11 N•m (97 lbf•in)

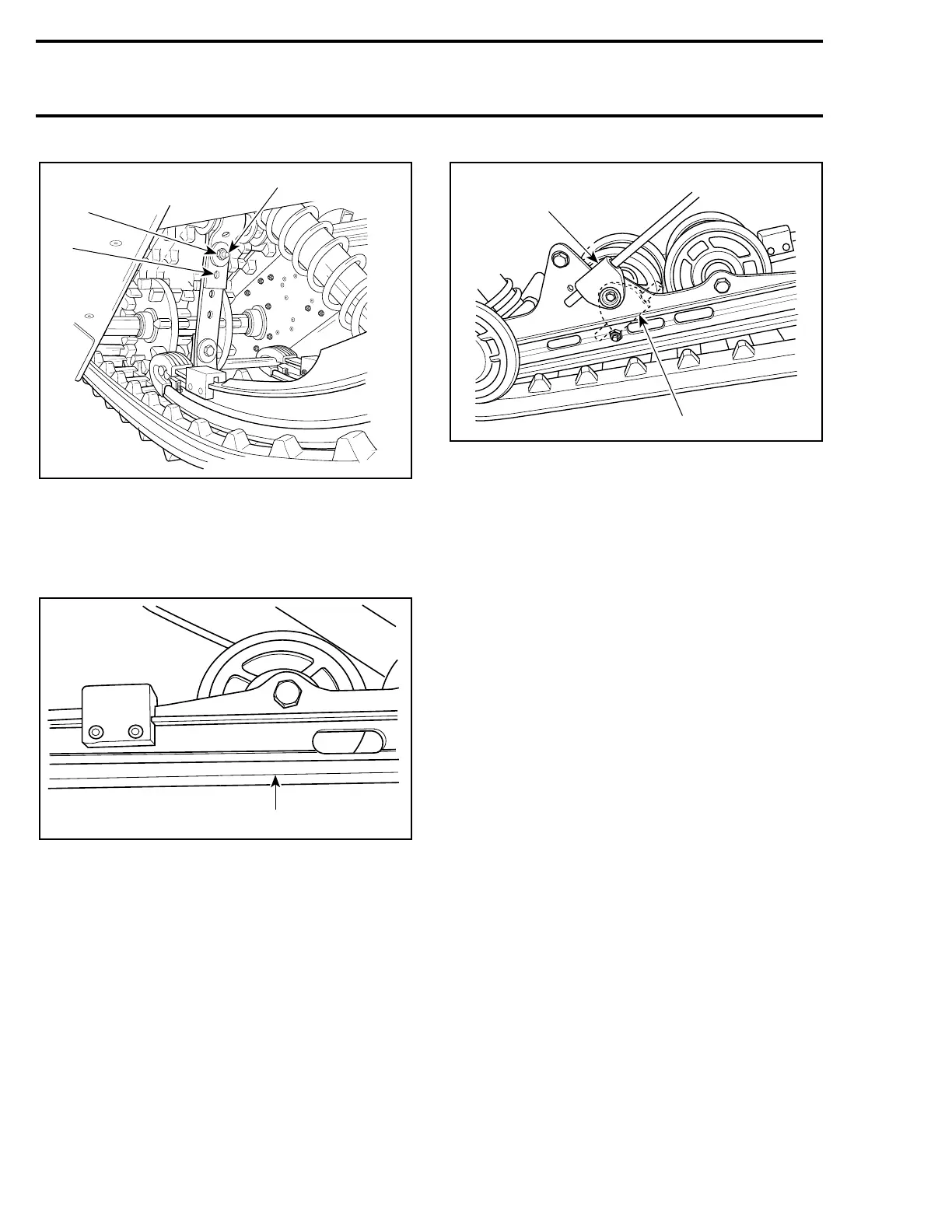

17, Slider Shoe
Replace slider shoes when it is worn to the line.
1. Wear limit line
CAUTION : Slider shoes must always be
re-placed in pairs.
18, Spring Support
CAUTION : To avoid track damage, spring
supports must be mounted upward.
RIGHT SIDE SHOWN
1. Right position : upward
2. Wrong position
SHOCK ABSORBER SERVICING
All Models Equipped with HPG Shock Except
MX Z 440
Because of gas pressure, strong resistance is felt
when compressing shock. When released, the
shock will extend unassisted. Renew as required.
HPG, T / A (Take Apart) Shock Servicing
MX Z 440 Only
This damper is completely rebuildable. It offers
the options of replacing valves or revalving and /
or the option of replacing seals (should it be need-
ed).
Although the adjustments are internal, rather than
external as in the MVA, the rider is able to select
the exact damping adjustment required for his /
her riding style.
Bombardier offers 2 valving adjustment options
through normal parts channels. A standard setting
with each damper (either from parts or on the
snowmobile) and a cross country setting, which
will offer a stiffer or harder ride for high speed
riding or racing.
A03F0QA
A
1
2
A03F0YA
1
A03F0VA
1
2
