Skil 1815 User Manual

-7-

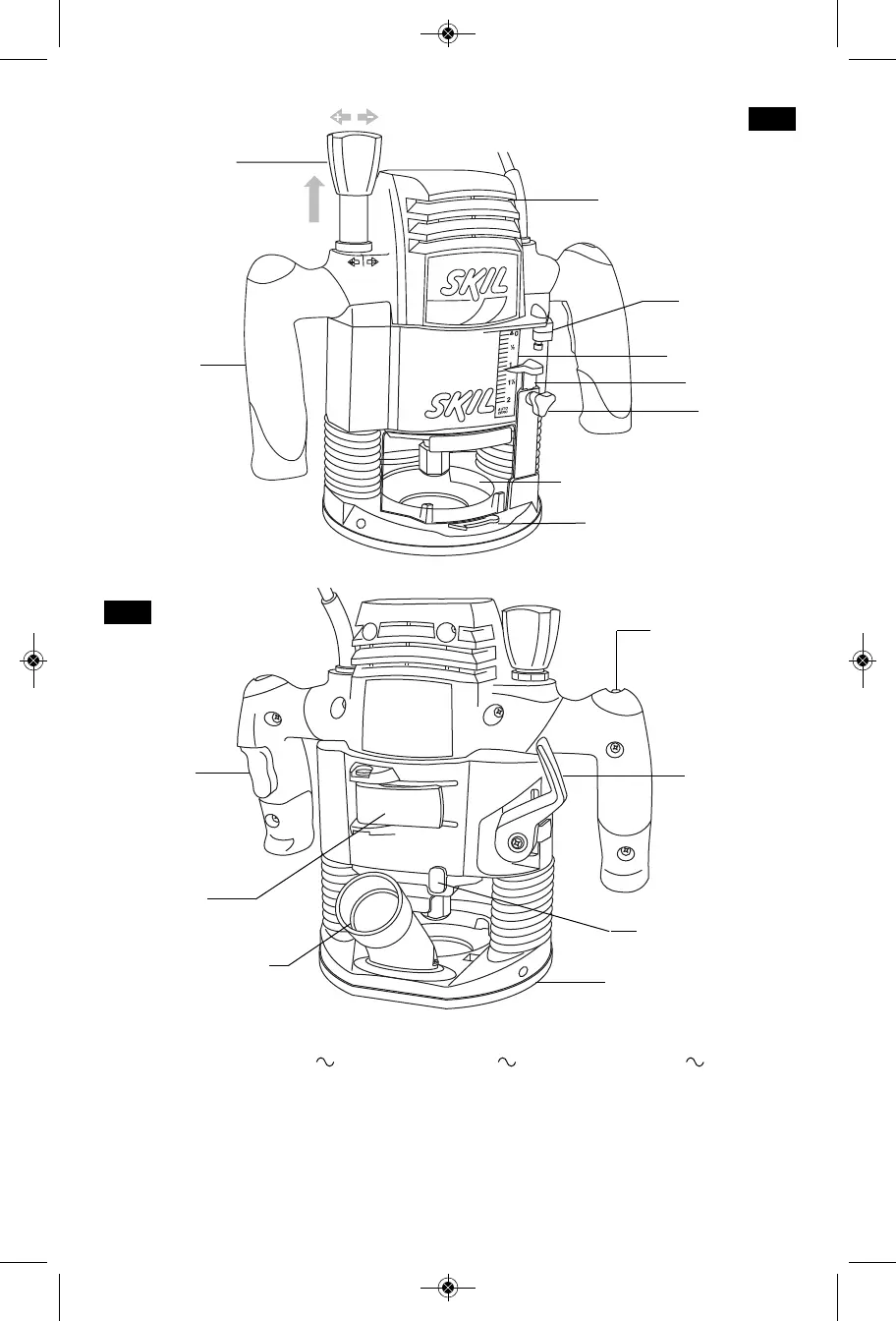

FIG. 3
PLUNGE
HANDLE
CHIP DEFLECTOR
AIR VENTS
BIT ROTATION ARROW
Model number 1810 1815 & 1820 1825
Voltage rating 120V 50 - 60Hz 120V 50 - 60Hz 120V 50 - 60Hz
Amperage rating 9A 10A 11A
No load speed n
0
25,000/min n
0
25,000/min n
0
10,500-25,000/min
Collet capacities 1/4" 1/4" 1/4", 1/2"
On models 1810, 1815, 1820, & 1825 router motor unit must be used with either fixed base
type A, or plunge base Type B.
KNOB
DEPTH STOP
TURRET
DEPTH SCALE
POP-UP
FINE ADJUSTMENT
K
NOB
DEPTH GAUGE
VARIABLE
SPEED DIAL
(Model 1825 only)
ON/OFF
TRIGGER
SWITCH
DUST PORT ADAPTER
(Not included, available
as accessory)
BASE CLAMP
LEVER
SUB-BASE
PLUNGE
LOCK LEVER
BASE RELEASE
BUTTON
FIG. 4
SM 1619X03874 04-09:SM 1619X03874 04-09 4/20/09 9:45 AM Page 7
