-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
IN
2
1
1

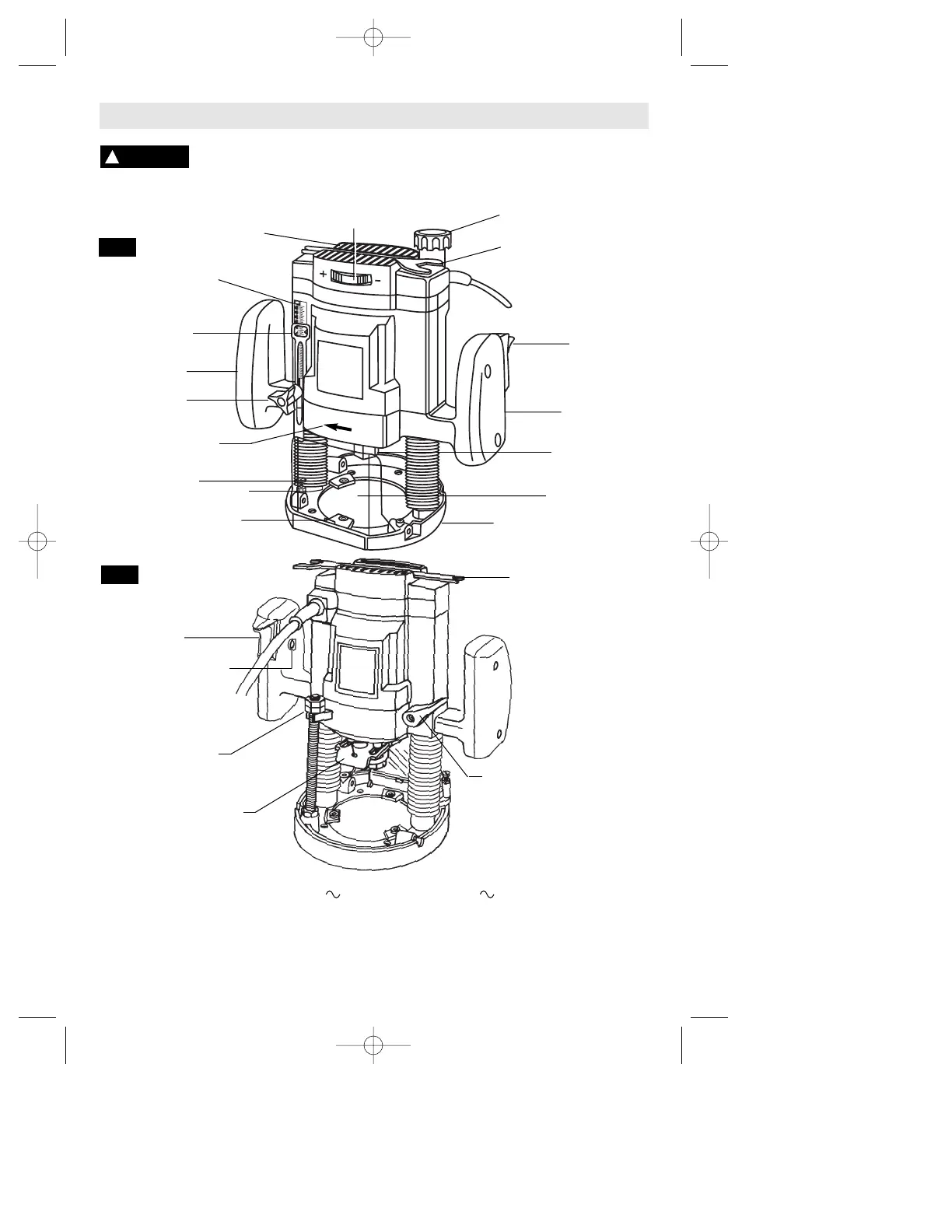

FIG. 1
FIG. 2
DEPTH
SCALE
VENTS
FINE ADJUSTMENT KNOB
(Model 1845 only)
SPEED CONTROL DIAL
(Model 1845 only)
WRENCH & STORAGE AREA
(Standard models only)
BASE
RIGHT
HANDLE
DIRECTION OF BIT
ROTATION
LEFT
HANDLE
FINE DEPTH
ADJUSTMENT
KNOB
NUT
TAB
DEPTH
GAUGE
CHIP DEFLECTOR
“LOCK-ON”
BUTTON
ON/OFF
TRIGGER
SWITCH
ON/OFF TRIGGER
SWITCH
LOCK
LEVER
UPPER TRAVEL
STOP (HEX NUTS)
(Model 1840 only)
COLLET LOCK
(Standard models only)
BACK VIEW
COLLET NUT
Routers
Model number 1840 1845
Voltage rating 120 V 50 - 60Hz 120 V 50 - 60Hz
Amperage rating 9 A 10 A
No load speed n
0
25,000/min n
0
8,000-25,000/min
Collet capacities 1/4" 1/4"
WRENCH & STORAGE AREA
(Standard models only)
