-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
MAXIMUM CAPACITIES
Model Blade Blade Stroke
No. Thickness Action Length Wood Aluminum Steel
4290 Minimum .7mm - Maximum 1.7mm Orbital 13/16" 2" 1/2" 1/4"
NOTE: For tool specifications refer to the nameplate on your tool.

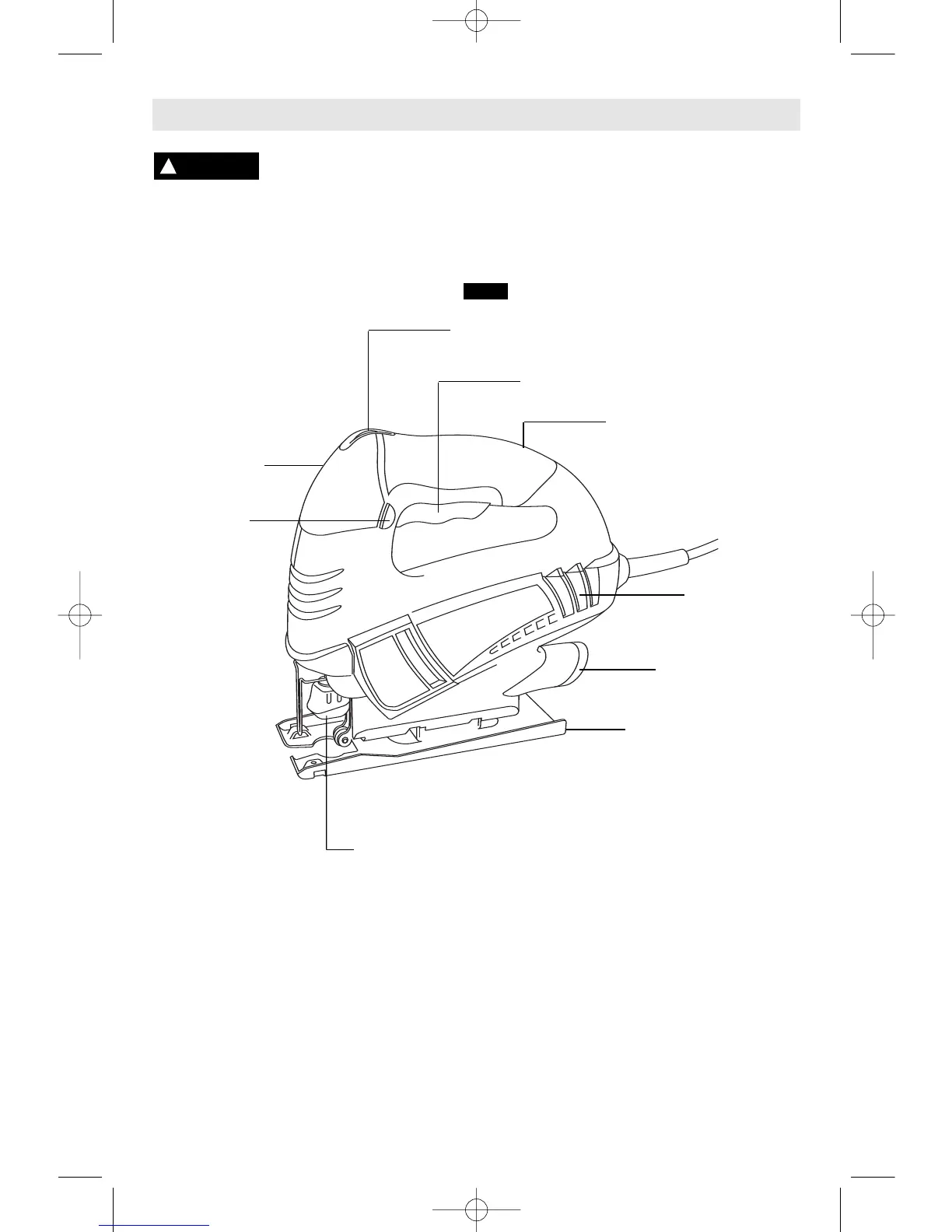

Jigsaw
TRIGGER SWITCH
TOP OF FRONT
HOUSING
FOOT
VENTILATION
OPENINGS
BLADE STORAGE
COMPARTMENT
TOOL-LESS BLADE
CHANGE COVER
“LOCK-ON”
BUTTON
VARIABLE SPEED
CONTROL DIAL
RUBBERIZED GRIP
FIG. 1
SM 2610948279 02-07 2/22/07 4:28 PM Page 6
