Functional Description and Specifications
Disconnect the plug from the power source before making any
a
ssembly, adjustments or changing accessories
.
Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
MAXIMUM CAPACITIES
Model Blade Stroke
No. Thickness Length Wood Aluminum Steel
4395 & 4495 Minimum .7mm - 13/16" 2-9/16" 1/2" 1/4"
Maximum 1.7mm
NOTE: For tool specifications refer to the nameplate on your tool.

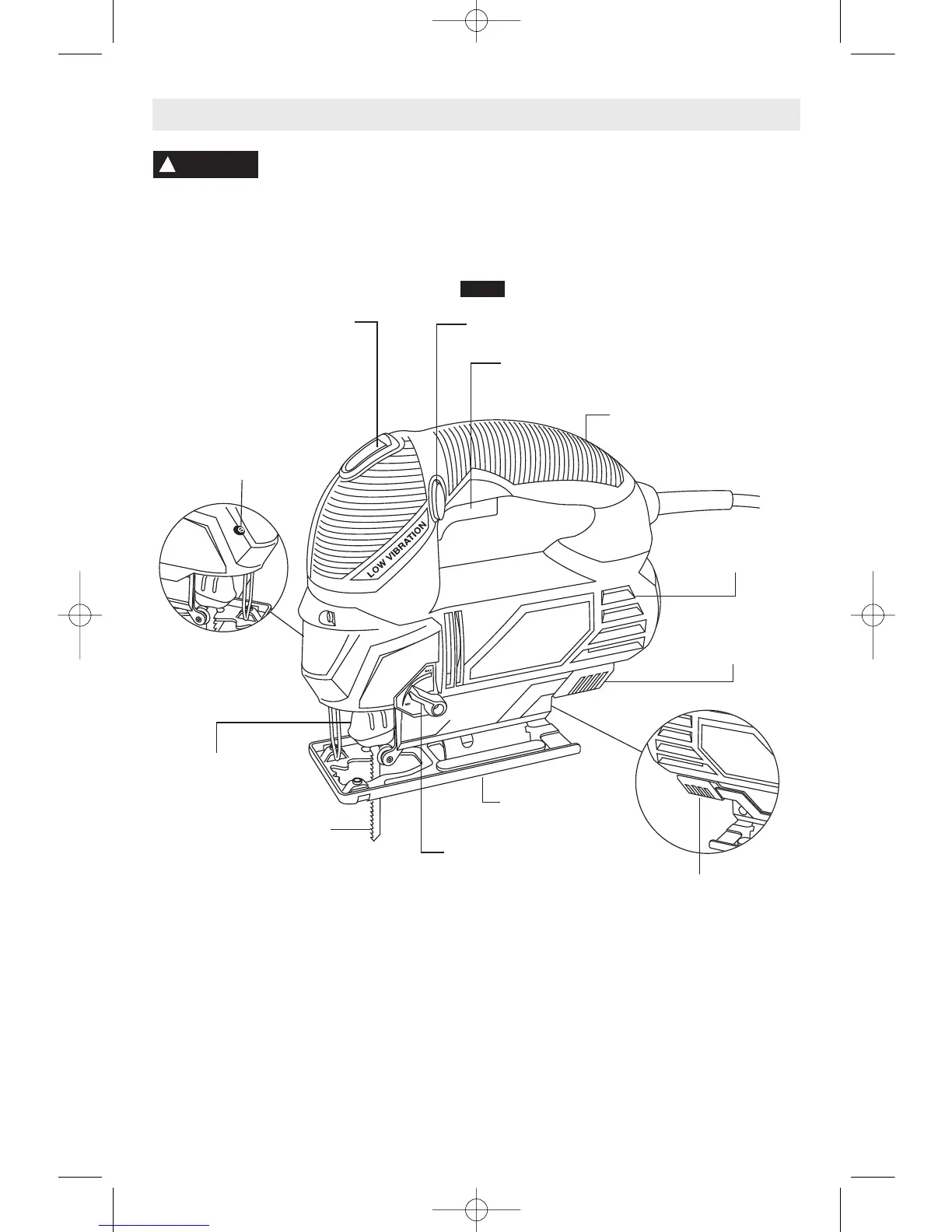

Jigsaws
VARIABLE SPEED CONTROLLED
TRIGGER SWITCH
FOOT
VENTILATION
OPENINGS
BLADE STORAGE
COMPARTMENT
TOOL-LESS
BLADE CHANGE
COVER
ORBIT CONTROL
LEVER
LASER LIGHT ON/OFF BUTTON
(Model 4495 only)
RUBBERIZED GRIP
FIG.1
LASER LIGHT
ADJUSTMENT
SCREW
“LOCK-ON” BUTTON
BLADE
FOOT ADJUSTMENT
LEVER
