Variable loading floor in the luggage compartment (Fabia Estate)
Introduction
This chapter contains information on the following subjects:
Dividing up the luggage compartment with variable loading floor
72
Removing and refitting the variable loading floor 72
Removing and installing carrier rails 73
The variable loading floor makes handling of bulky items of luggage easier.
CAUTION
The maximum permissible load of the variable loading floor is 75 kg.
Note
The room under the variable loading floor can be used to stow objects.
Dividing up the luggage compartment with variable loading floor

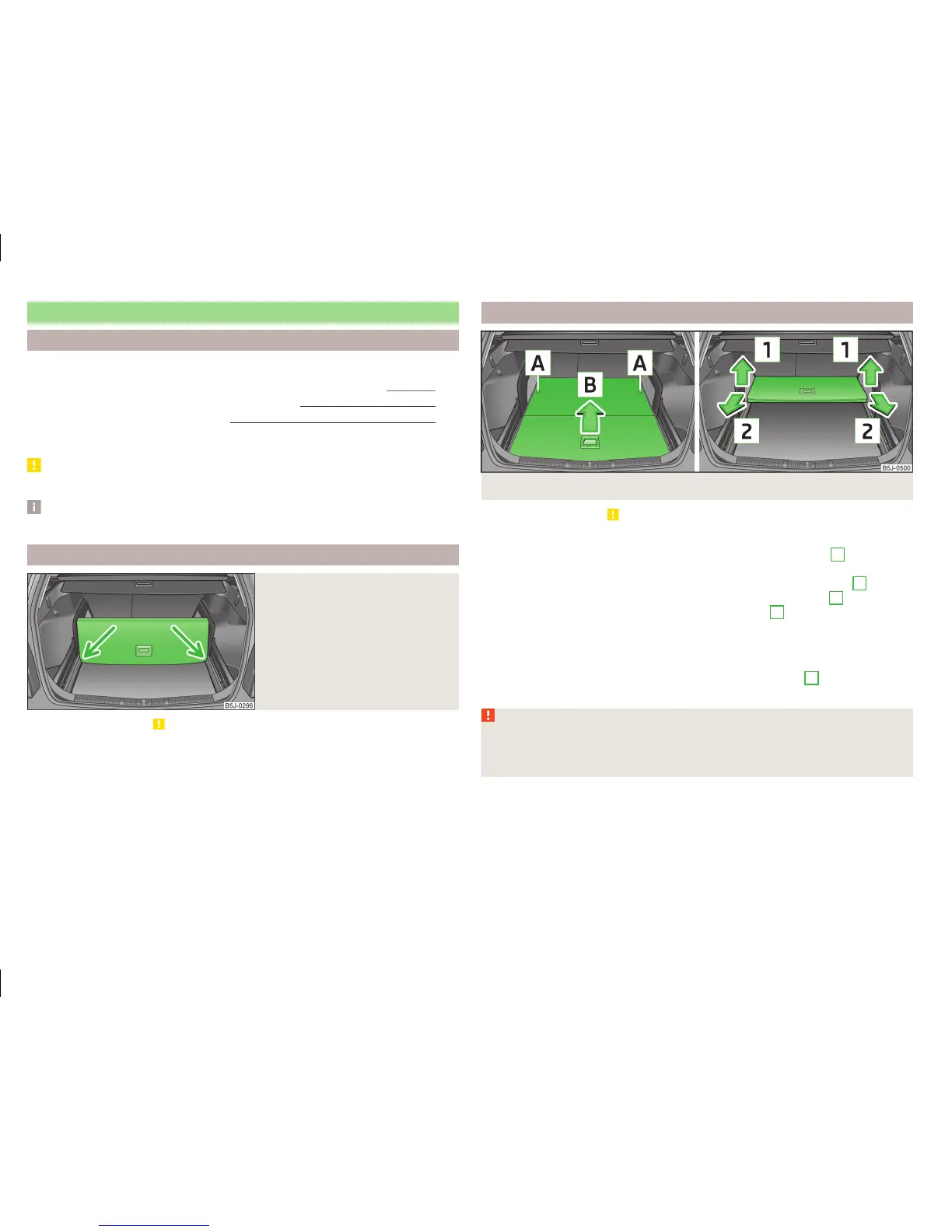

Fig. 67
Dividing the boot with variable
loading floor
Read and observe on page 72 first.
›
Lift up the part with the grip and secure it by sliding it into the grooves
marked with the arrows » Fig. 67.
Removing and refitting the variable loading floor
Fig. 68 Fold up variable loading floor/remove
Read and observe
on page 72 first.
Removing
›
Unlock the variable loading floor by turning the securing bolts
A
around
180° anticlockwise » Fig. 68.
›
Fold up the loading floor by moving it in the direction of the arrow
B
.
›
Fold up the variable loading floor in the direction of the arrow
1
» Fig. 68
and remove by pulling in the direction of the arrow
2
Fitting
›
Fold up the variable loading floor and place it on the carrier rails.
›
Fold out the variable loading floor.
›
Lock the variable loading floor by turning the locking bolt
A
to the right by
approx. 180°.
WARNING
Ensure that the carrier rails and variable loading floor are correctly fastened
when fitting the variable loading floor. If this is not the case, there is a risk
of injury for the occupants.
72
Using the system
