5.1.4

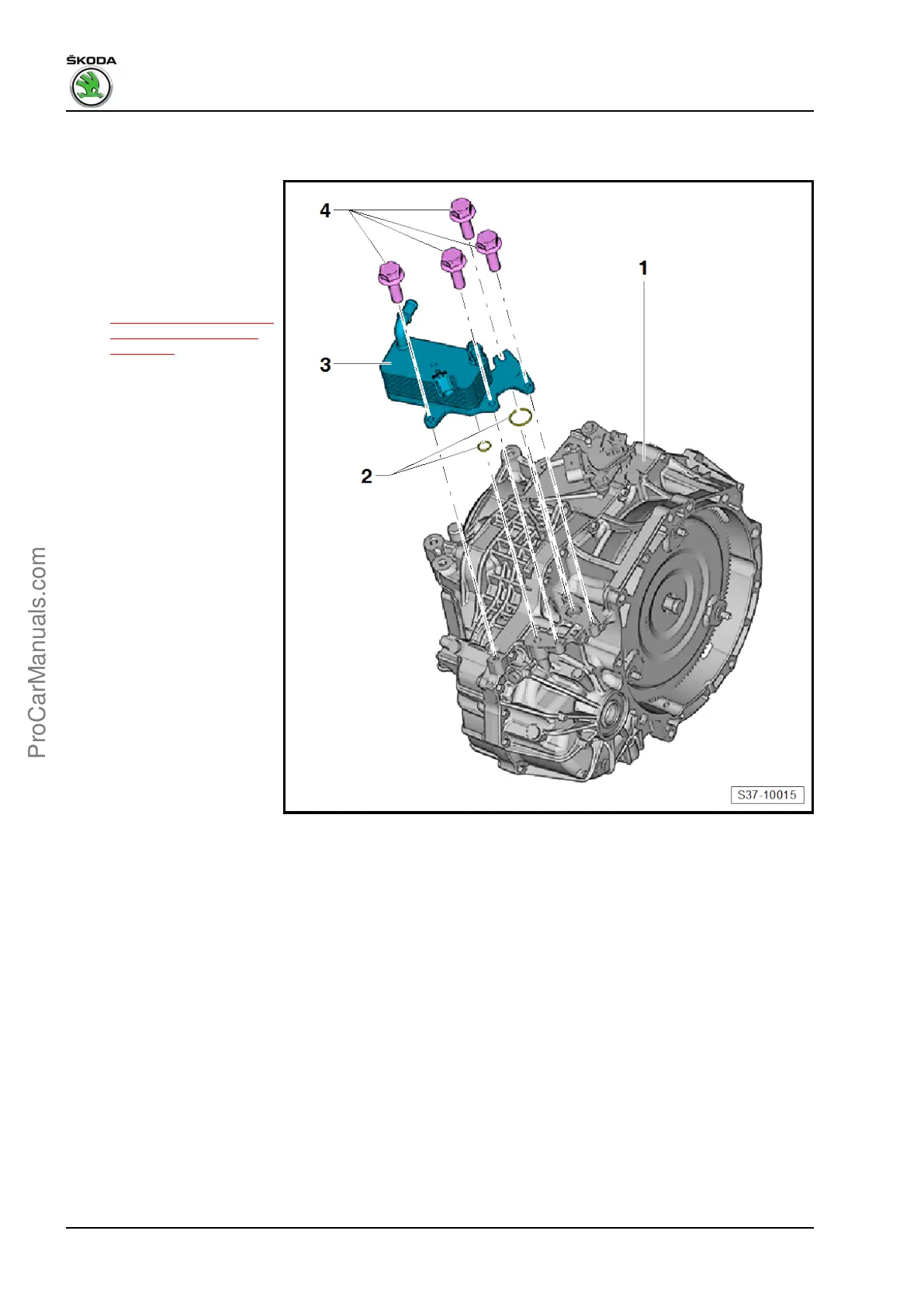

ATF radiator - Summary of components Octavia III, Yeti
1 - Gearbox housing
2 - O-ring
❑
always replace ⇒ Elec‐
tronic Catalogue of
Original Parts
3 - ATF radiator
❑
⇒
“5.2
Removing
and
in‐
stalling ATF radiator”,
page 159
4 - Screw
❑
20 Nm
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
158
Rep. gr.37 - Controls, housing
ProCarManuals.com
161
163
Table of Contents
Default Chapter
2
Service
2
Table of Contents
3
Technical Data
5
Identification of the Gearbox
5
Location on the Gearbox
5
Identification Characters, Aggregate Assignment, Ratios
6
Identification Characters, Aggregate Assignment, Ratios (Octavia II)
10
Identification Characters, Aggregate Assignment, Ratios (Fabia II)
10
Identification Characters, Aggregate Assignment, Ratios (Roomster)
11
Identification Characters, Aggregate Assignment, Ratios (Rapid India)
12
Identification Characters, Aggregate Assignment, Ratios (Rapid)
12
Identification Characters, Aggregate Assignment, Ratios (Superb II)
13
Identification Characters, Aggregate Assignment, Ratios (Octavia III)
13
Torque Con- ⇒ Electronic Catalogue of Original Parts
13
Gear
13
Reverse Gear
13
Intermediate Drive Wheel
13
Gear Output Gear
13
Ratio
13
Final Drive Output Shaft
13
Crown Wheel
13
Contents
14
Information for the Automatic Gearbox 09G
16
Torque Converter
16
Atf
16
Information and Repair Instructions for the Automatic Gearbox 09G
16
Repair Instructions
17
Explanation of the Terms Used in this Workshop Manual
19
Draining the Torque Converter
21
Removing and Installing Gasket Ring for Torque Converter
21
Checking the Torque Converter
22
Installing the Torque Converter
22
Controls, Housing
24
Electric and Electronic Components, Fitting Locations of the Automatic Gearbox
24
Summary of Components
24
Summary of Components - Electric and Electronic Components, Fitting Locations of the Automatic Gearbox
30
Removing and Installing Automatic Gearbox Control Unit J217
42
Install
43
Removing
43
Removing and Installing Automatic Gearbox Control Unit
43
Assembly Overview - Shift Mechanism
45
Repairing Shift Mechanism
45
Summary of Components - Gearshift Mechanism -Octavia II up to 10.2009
45
Summary of Components - Gearshift Mechanism - Octavia II as of 11.2009
48
Summary of Components - Gearshift Mechanism -Superb II
50
Summary of Components - Shift Mechanism up to 10.2011
51
Summary of Components - Shift Mechanism as of 11.2011
53
Gearshift Mechanism
55
Inspecting the Gearshift Mechanism
58
Inspecting and Adjusting the Selector Lever Control Cable
59
Check the Function of the Ignition Key Removal Lock
61
Removing and Installing the Cover for the Shift Mechanism
62
Removing and Installing and Installing Selector Lever Handle up to 10.2012
69
Removing and Installing Retractor Spring
70
Removing and Installing Selector Lever Handle
73
Removing and Installing Selector Lever Handle as of 11.2012
74
Installing the Lock Button at the Selector Lever Handle
76
Removing and Installing Selector Mechanism
78
Removing and Installing Slave Cylinder
84
Remove and Install Shift Mechanism
88
Removing and Installing Shift Mechanism
92
Removing and Installing the Selector Lever Control Cable
96
Removing and Installing Selector Lever Lock Solenoid N110
104
Removing and Installing the Tiptronic Switch F189
104
Checking the Plug Connections at the Gearshift Mechanism
108
Emergency Release of Gearshift Mechanism out of Position "P
109
Removing and Installing the Gearbox
111
Removing the Gearbox
111
Removing Gearbox
115
Installing the Gearbox
136
Tightening Torques
138
M10
142
M12
142
Screws 1) -1
142
Screws/Nuts M6
142
Nm + Torque a Further Mounting, Screws / 4 Turn)
143
Screws / 4 Turn)
143
Attaching Gearbox to Assembly Stand
149
Transporting an Automatic Gearbox
149
Check the ATF Level Level and Top up
151
Change ATF or Top up after Repair
156
ATF Coolant Circuit
159
ATF Radiator - Summary of Components
159
Summary of Components for Gearboxes with KGV, KGU
160
Removing and Installing ATF Radiator
163
Gears, Control
169
General Instructions
169
Removing and Installing Oil Pan, Oil Filter, Slide Valve Body and Internal Wiring Looms
169
Summary of Components - Oil Pan, Oil Strainer, Slide Valve Body, Internal Wiring Looms
169
Components at Wiring Loom of 8-Pin Plug
171
Components at Wiring Loom of 8-Pin Plug
172
Removing and Installing Oil Pan
172
Removing and Installing the Oil Filter
174
Removing and Installing the Slide Valve Body
175
Removing and Installing Wiring Loom with 14-Pin Plug
184
Removing and Installing Wiring Loom with 8-Pin Plug and Integrated Gearbox Oil Temperature Sender G93
185
Removing and Installing the Gearbox Input R.p.M. Sender G182
187
Removing and Installing the Gearbox Output R.p.M. Sender G195
188
Removing, Installing and Setting Multi-Function Switch F125
189
Setting Multi-Function Switch F125
191
Final Drive - Differential
193
Replacing the Left Flange Shaft Gasket Ring
193
Replacing the Right Flange Shaft Seal Ring
194
Replacing the Gasket Ring for the Gearshift Shaft
197
