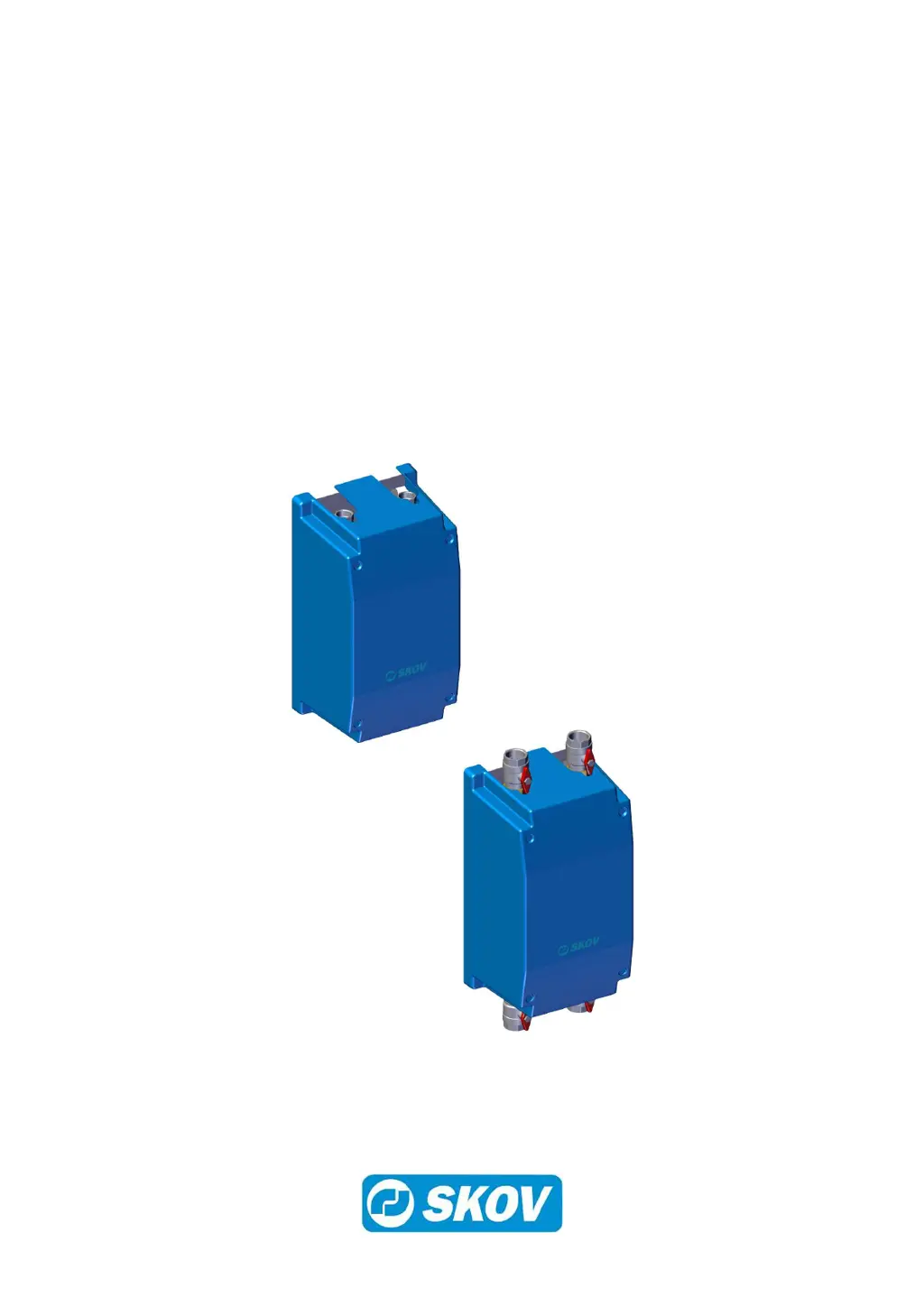

Skov DA 4200 - User Manual

Questions and Answers

E
Emily BurnettAug 6, 2025
Why is there no heat from my Skov DA 4200?
- M
  Mark DavisAug 6, 2025
  If your Skov Heating System isn't producing heat, several factors could be at play. The heat source itself might be defective, so you should investigate the reason for the defect. Ensure the ball valve is open to allow flow. The system may need more water, so try filling it up. Also, check if the supply flow temperature is set correctly and adjust it if necessary. If the circulation pump or actuator is defective, call SKOV-service or a local plumber/electrician for replacement.
K
Kristin MasseyAug 10, 2025
What to do if my Skov Heating System does not turn off?
- S
  Scott LopezAug 10, 2025
  If your Skov Heating System won't turn off, it could be due to a lack of signal from the controller or a defective actuator. In this case, call SKOV-service or a local plumber/electrician for replacement.
A
Amanda NguyenAug 16, 2025
What does a sensor alarm mean on my Skov DA 4200 Heating System?
- Z
  Zachary LawrenceAug 16, 2025
  If you are getting a sensor alarm with your Skov Heating System, it is likely due to a defective sensor. Check the connections to the sensors or mount a new sensor.
D
Denise MichaelAug 20, 2025
Why is there no heat in my Skov Heating System?
- T
  Tara GravesAug 20, 2025
  Several factors can cause a lack of heat in your Skov Heating System. It could be due to a defective heat source, so you should check the reason for the defect. Other potential causes include a closed ball valve (open it), a defective circulation pump or actuator (call SKOV-service or a local plumber/electrician for replacement), a clogged piping filter (clean it), insufficient water in the system (fill it up), or an incorrectly set supply flow temperature (adjust it).
R
Ryan ChavezAug 26, 2025
What to do if the temperature rises slowly in Skov Heating System?
- J
  Jacob ReevesAug 26, 2025
  If the temperature in your Skov Heating System rises slowly, it could be because the heating system hasn't reached its maximum capacity; check why the heating system isn't producing heat. Alternatively, if the house is very cold at start-up, allow the heating system sufficient time to warm up the house.
B
Bryan GrimesAug 30, 2025
Why my Skov Heating System does not turn off?
- M
  Matthew CooperAug 30, 2025
  If your Skov Heating System doesn't turn off, it could be due to a lack of signal from the controller or a defective actuator. In this case, call SKOV-service or a local plumber/electrician for replacement.

Summary

Product Description and Overview

Overview of DA 4200 Heating System

Describes the DA 4200 heating system for livestock houses, its components, and applications.

Product Survey and Components

Regulation Unit Specifications

Details the DA 4200 heating units for regulation, including specifications and types.

Heating Unit Accessories

Describes optional accessories like the SmartHeat kit and thermometer kits for heating units.

Pipe Types and Specifications

Details various pipe types, including Spiraflex and welded tubes, and their connection specifications.

Mounting Hardware and Brackets

Explains mounting hardware for walls, ceilings, and specific mounting brackets for pipe installations.

Mounting Sets for Pipe Systems

Details various mounting sets for finned and smooth tubes, including set configurations and components.

Expansion Joints and Pipe Fittings

Covers expansion joints for pipe systems and a range of fittings like elbows, tees, and U-bends.

Additional Heat Exchanger Unit

Details the SKOV heat exchanger unit, its capacity, and intended use for preheating cleaning water.

Mounting and Installation Guide

Recommended Tools for Assembly

Provides a list of tools recommended for the assembly of the heating system components.

Heating Unit and Pipe Coupling Installation

Guides on mounting the heating unit, connecting pipes, and managing pipe couplings and expansion.

Finned and Smooth Tube Placement

Explains the recommended placement height and general guidelines for finned/smooth tubes.

Pipe Support and Wall Mounting Methods

Details pipe support spacing and methods for wall mounting on smooth-faced solid walls and sandwich panels.

Ceiling and Obstacle Mounting Procedures

Covers mounting procedures for walls with obstacles and ceiling mounting configurations using brackets and chains.

Pipe Connecting and Shortening

Guides on connecting pipes using couplings, including expansion and shortening procedures for smooth pipes.

Installation Guide

Electrical Connection and Safety

Specifies requirements for electrical connections and the installation of power supply isolators for safety.

Controller Settings and Operation

Guides on setting up the controller, including voltage checks and terminal connections for heating units.

Circuit Diagrams and Letter Codes

Explains circuit diagram symbols, letter codes, and reference designations for system components.

Cable Plans and Wiring

Presents cable plans and detailed circuit diagrams for connecting the heating unit, controller, and other components.

Actuator and Pump Setup

Explains the operation of the actuator and the setup procedures for circulation pumps like UMP3 and UMPXL.

Maintenance Instructions

Routine Maintenance and Cleaning

Details maintenance routines for checking valves, piping, and cleaning circulation pumps and finned tubes.

Recycling and Disposal Guidelines

Provides information on recycling procedures and proper disposal of system components, marked with pictograms.

Trouble Shooting Instructions

Diagnosing and Resolving Heating Issues

Lists common symptoms like no heat, lists causes, and provides solutions for heating system malfunctions.

Service and Maintenance of System

System Service and Pump Checks

Provides instructions for servicing the heating unit, checking actuators, pumps, and water pressure.

Pump Deblocking Procedure

Explains the procedure for deblocking the shaft of the UMP3 circulation pump if it is seized.

Technical Data

Room Heating Unit Specifications

Lists technical data for DA 4200 heating units, including electrical, water, mechanical, and environmental parameters.

Pump Performance and Unit Dimensions

Presents performance diagrams for circulation pumps and dimensioned sketches of heating units DN 25 and DN 32.

Actuator and Component Specifications

Details technical specifications for the actuator, finned tubes, pipe couplings, and heat exchangers.

Enclosure

Heating Unit Replacement Guide

Compares phased-out heating units with new DA 4200 units for replacement, detailing dimensional and functional differences.

Skov DA 4200 Specifications

General

Brand	Skov
Model	DA 4200
Category	Heating System
Language	English
