RECORD about leveling of airplane Skyboy
Type
Skyboy
Producer
Interplane s.r.o. Zbraslavice - CZECH REPUBLIC
Serial number
Matriculation
MEASURING OF CONTROL SURFACES
DEFLECTIONS :
- The measuring of elevator and ailerons deflections was
made with help of common measuring jig, which
consists from the pro- tractor with a clamp for
clamping to the control surface and the plumb bob,
which is clamped in the center of the protractor.
- The measuring of rudder deflection was made with
help of the protractor or we simplify the measuring
so, that we measure a distance from the rudder
surface to the hollow of elevator. This distance
would be circa 15 mm in the narrowest place.
THE TENSION OF THE RUDDER CONTROL CABLES :
cable : demanded :
measured :
left
100 + 30 N
right
100 + 30 N
VERIFICATION OF FUNCTIONAL ABILITY OF THE ALL CONTROLS :
Date : Technician worker :
demanded : measured values :
ELEVATOR
up
30
O
+ 1.5
O
down
15
O
+ 1.5
O
RUDDER
to left
25
O
±
±±
± 2
O
to right
25
O
±
±±
± 2
O
neutral
0 °
°°
°
AILERONS
ailerons up
18 °
°°
° ±
±±
± 1 °
°°
°
ailerons down
10 °
°°
° ±
±±
± 1 °
°°
°
left aileron right aileron

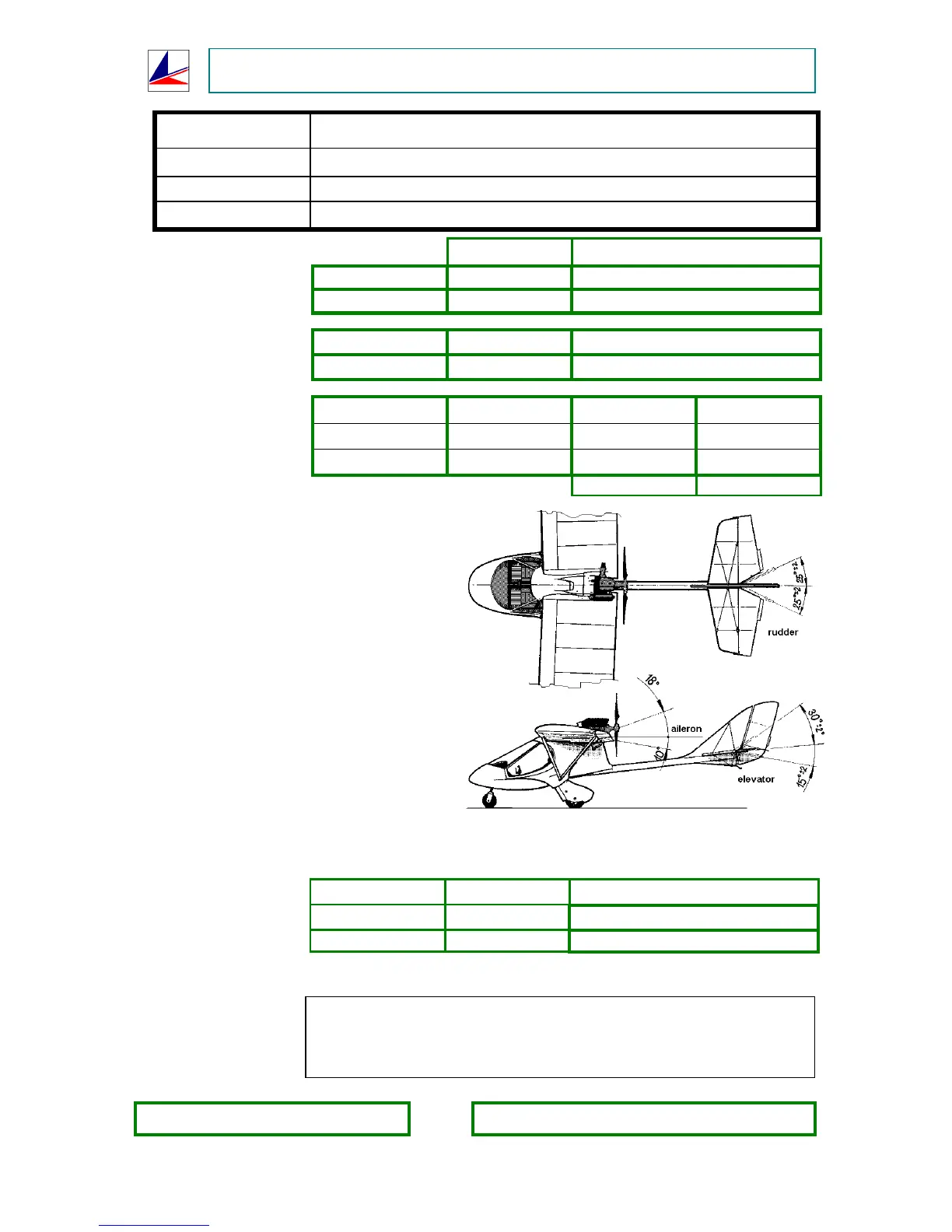

Picture : Control surfaces deflections
