P
age 14
December 2007
DC Electric Full-size R
T
s

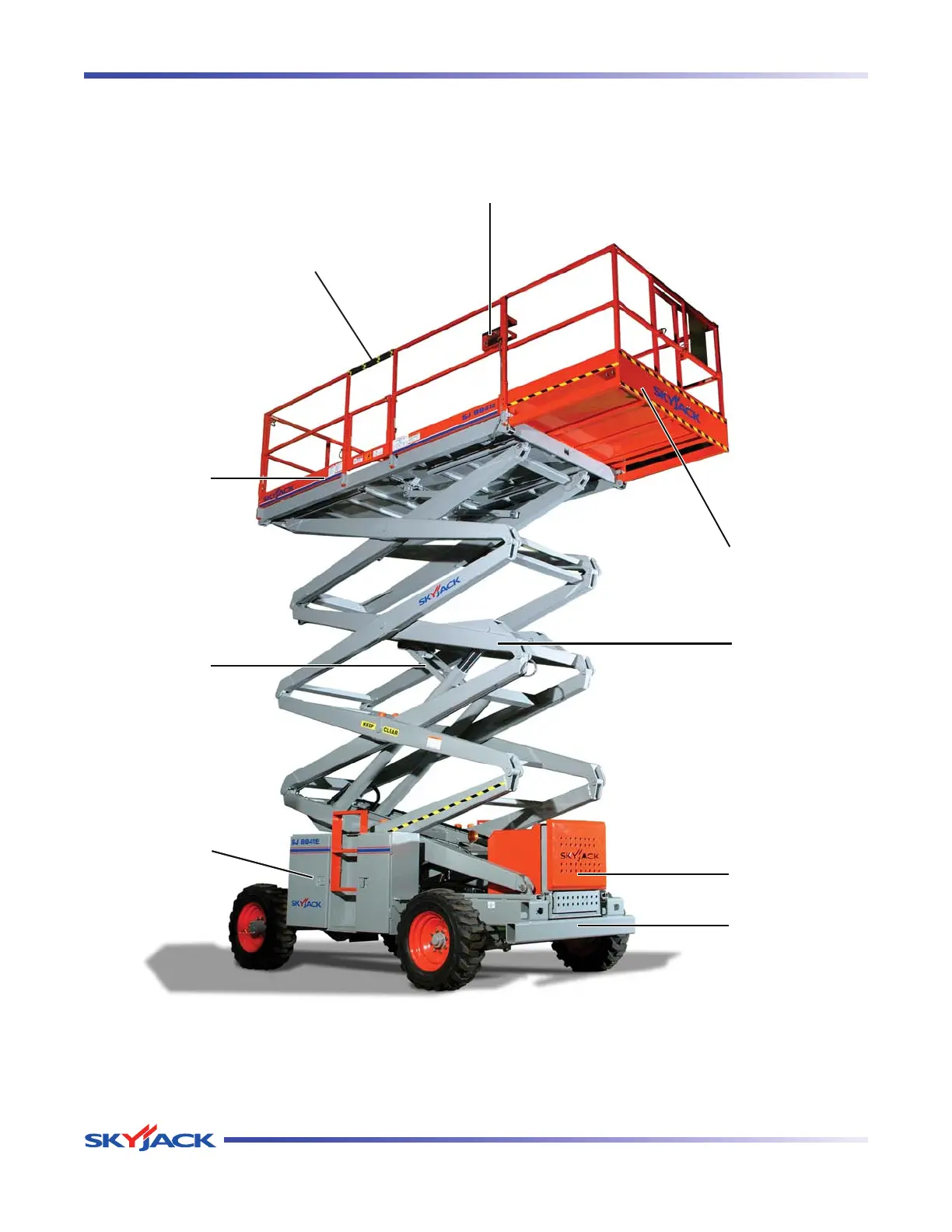

Section 2 - Operation
SKYJA
CK SJ-800E Series Aerial Platform
Platform Control Console
Entry Gate
Base
Main Platform
Maintenance
Support
Battery Charger/
Hydraulic
Compartment
Extension
Platform
Lifting
Mechanism
2.2
Major Components
Battery T
ray
12
14
Table of Contents
Table of Contents
4
Section 1 - about Your Aerial Platform
6
Aerial Platform Definition
6
Purpose of Equipment
6
Use of Equipment
6
Manual
6
Operator
6
Service Policy and Warranty
6
Optional Accessories
6
Scope of this Manual
6
Safety Rules
7
Operator Safety Reminders
7
Electrocution Hazard
8
Safety Precautions
9
Section 2 - Operation
12
General
12
Operator Qualifications
12
Operator's Responsibility for Maintenance
12
Maintenance and Inspection Schedule
12
Owner's Inspections
12
Major Components
13
Major Assemblies
14
Base
14
Lifting Mechanism
14
Platform
14
Serial Number Nameplate
14
Component Identification
15
Battery Connectors
15
Motion Alarm
15
Tilt Alarm
15
Electrical Panel
15
Base Control Console
15
Brake System
16
Emergency Lowering System
16
Maintenance Support
16
Manual Storage Box
16
10 Folding Guardrail System
17
11 Lanyard Attachment Anchorage
17
12 AC Outlet on Platform
17
13 Battery Charger
17
14 Platform Control Console
18
Component Identification (Special Options)
19
Outrigger Control Console (if Equipped)
19
Powered Extension Control Console (if Equipped)
19
1500W AC Inverter (if Equipped)
20
Operator's Responsibility
21
Visual and Daily Maintenance Inspections
22
Function Tests
30
Start Operation
36
To Activate Base Control Console
36
To Raise or Lower Platform Using Base Console
36
To Activate Platform Control Console
37
To Raise or Lower Platform Using Platform Control Console
37
To Drive Forward or Backward
38
To Steer
38
To Extend or Retract Manual Extension Platform
39
To Extend or Retract Powered Extension Platform (if Equipped)
39
Hydraulic Outriggers (if Equipped)
40
10 Electrical Inverter (if Equipped)
41
11 Shutdown Procedure
41
Lifting
42
Loading/Unloading
43
Driving
43
To Release the Brakes Manually
44
Winching and Towing Procedure
45
Emergency Lowering Procedures
45
Guardrail Folding Procedure
47
Maintenance Support Procedure
48
Battery Maintenance
50
Table 2.1 Standard and Optional Features
52
Table 2.2 Owner's Annual Inspection Record
53
Tables
54
Table 2.3 Specifications and Features
54
Table 2.4 Maximum Platform Capacities (Evenly Distributed)
55
Table 2.5 Floor Loading Pressure
56
Table 2.6 Tire Specifications
58
Table 2.7 Maintenance and Inspection Schedule
59
Table 2.8 Operator's Checklist
60
Labels
62
