SJ46AJ SJ51AJ SJ63AJ
December 2007 Page 107
Section 2 - Operation Labels

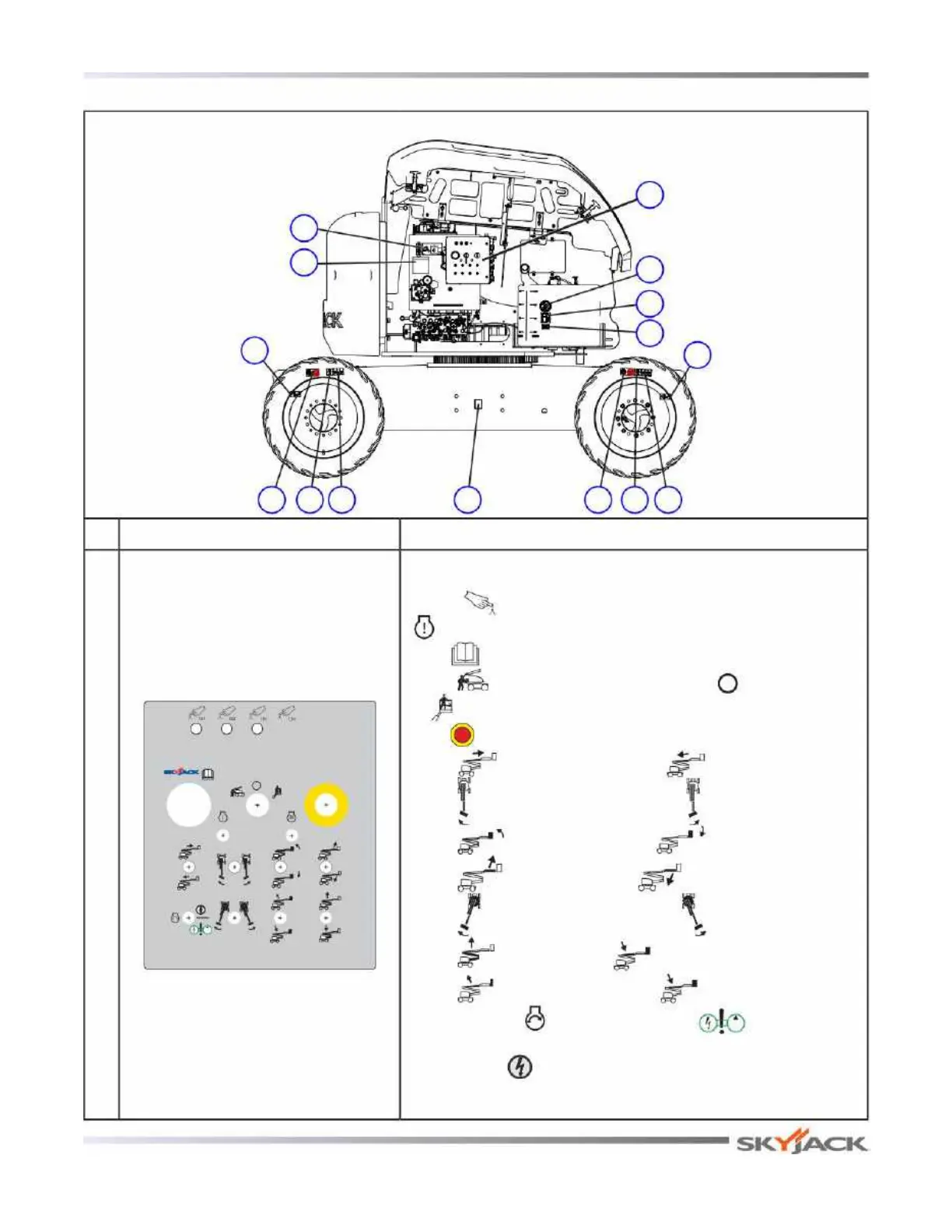

Model SJ63AJ
No. Label Pictorial Description
11
Base Control Console
Push “ ” breaker back in to reset. S e l e c t and h o l d
“ ” to enable error blink code for engine control unit (ECU).
Read “ ” operating manual.
Select “ ” to enable base control console, “ ” to turn engine off
or “ ” to enable platform control console.
Push “ ” emergency stop to stop engine and disable controls.
Select “ ” to extend y boom or “ to retract y boom.
Select “ ” to rotate platform to the left or “ ” to rotate to the right.
Select “ ” to tilt platform up or “ ” to tilt platform down.
Select “ ” to move jib up or “ ” to move jib down.
Select “ ” to rotate turret to the left or “ ” to rotate to the right.
Select “ ” to raise riser or “ ” to lower riser.
Select “ ” to raise main boom or “ ” to lower main boom.
Push and hold “ ” to start engine or “ ” to enable the
emergency power unit.
Push and hold “ ” in either direction to enable base control functions.
102962AC
ZZ
D
3
10
8
7 65654 4
1
9
3
2
11
Control Compartment (Continued)
To Next Page
