It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the MEWP.
FAMILIARIZATION
1. Base/Off/Platform Key Switch - This three-way
selector switch allows operator to “ ” turn off
power to MEWP or to activate either “ ” base
or “ ” platform control console.
2. Hourmeter - This gauge records accumulated
operating time of engine.
3. Engine Fault - This light indicates failure in engine
control system.
4. Fly Boom Extend/Retract Switch - This switch
controls “ ” extension or “ ” retraction
of y boom.
5. Start/Function Enable/Emergency Power
Switch - This momentary switch, when held in
“ ” start position, starts engine. When held in
“ ” function enable position, allows base control
functions to operate. With engine off, and when
held in “ ” emergency power unit position,
allows base control functions to operate using
emergency power unit.
6. Platform Rotation Switch - This switch controls
“ ” left or “ ” right rotation of platform.
7. Turret Rotation Switch - This switch controls
“ ” left or “ ” right rotation of turret.
8. Main Boom Raise/Lower Switch - This switch
controls “ ” raising or “ ” lowering of
main boom.
9. Platform Leveling Override Switch - This switch
overrides automatic leveling of platform and
controls “ ” tilting up or “ ” tilting
down of platform.
10. Riser Raise/Lower Switch - This switch controls
“ ” raising or “ ” lowering of riser.
11. Jib Up/Down Switch - This switch controls
“ ” up or “ ” down movement of jib.

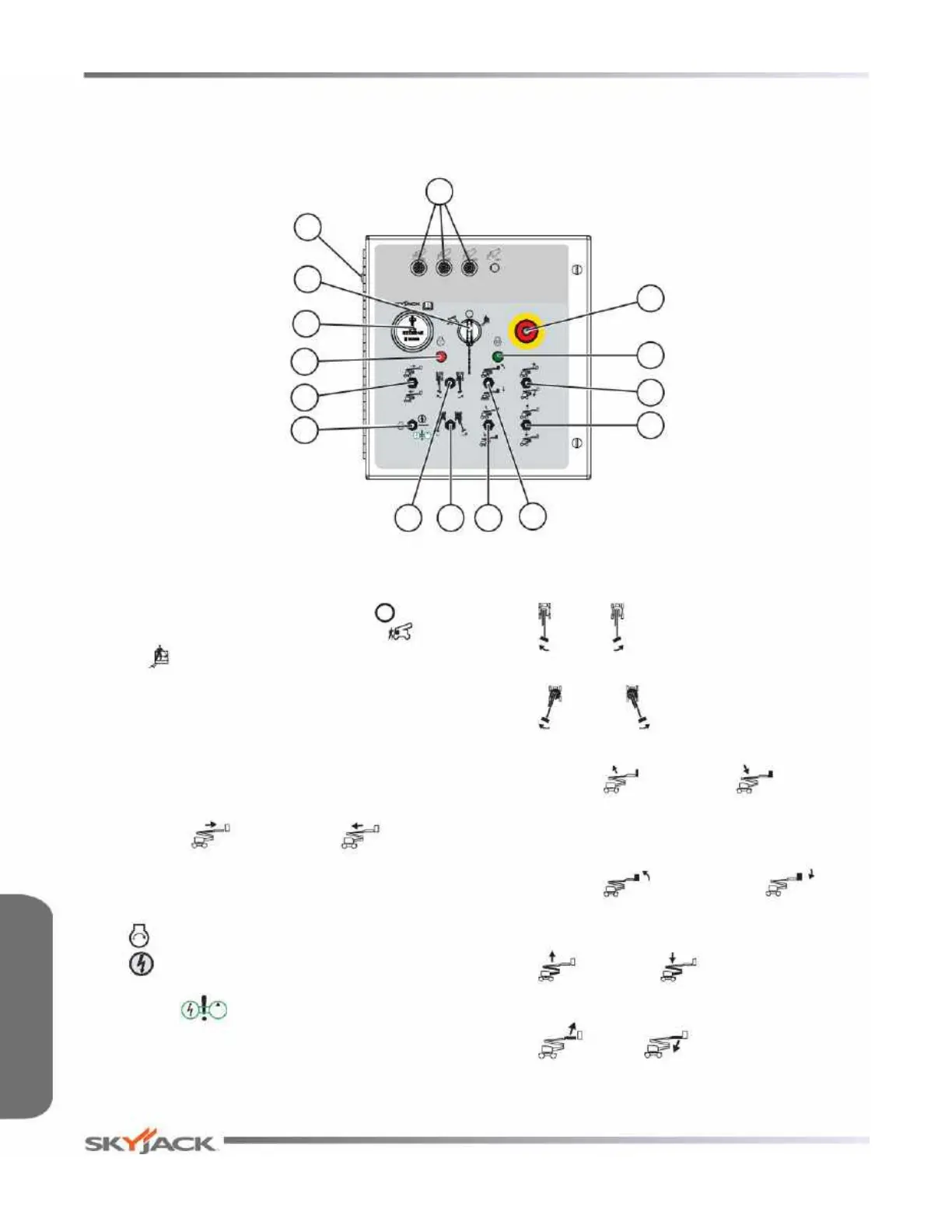

2.2-8 Base Control Console
This control console is located in the panel mounted in the control compartment.
5
13
10
7
4
2
1
8
9
11
15
14
12
6
3
Figure 2-5. Base Control Console
