SECTION 6, Page 41SJKB-40-D, SJKB-40-D/F JUN. 1999

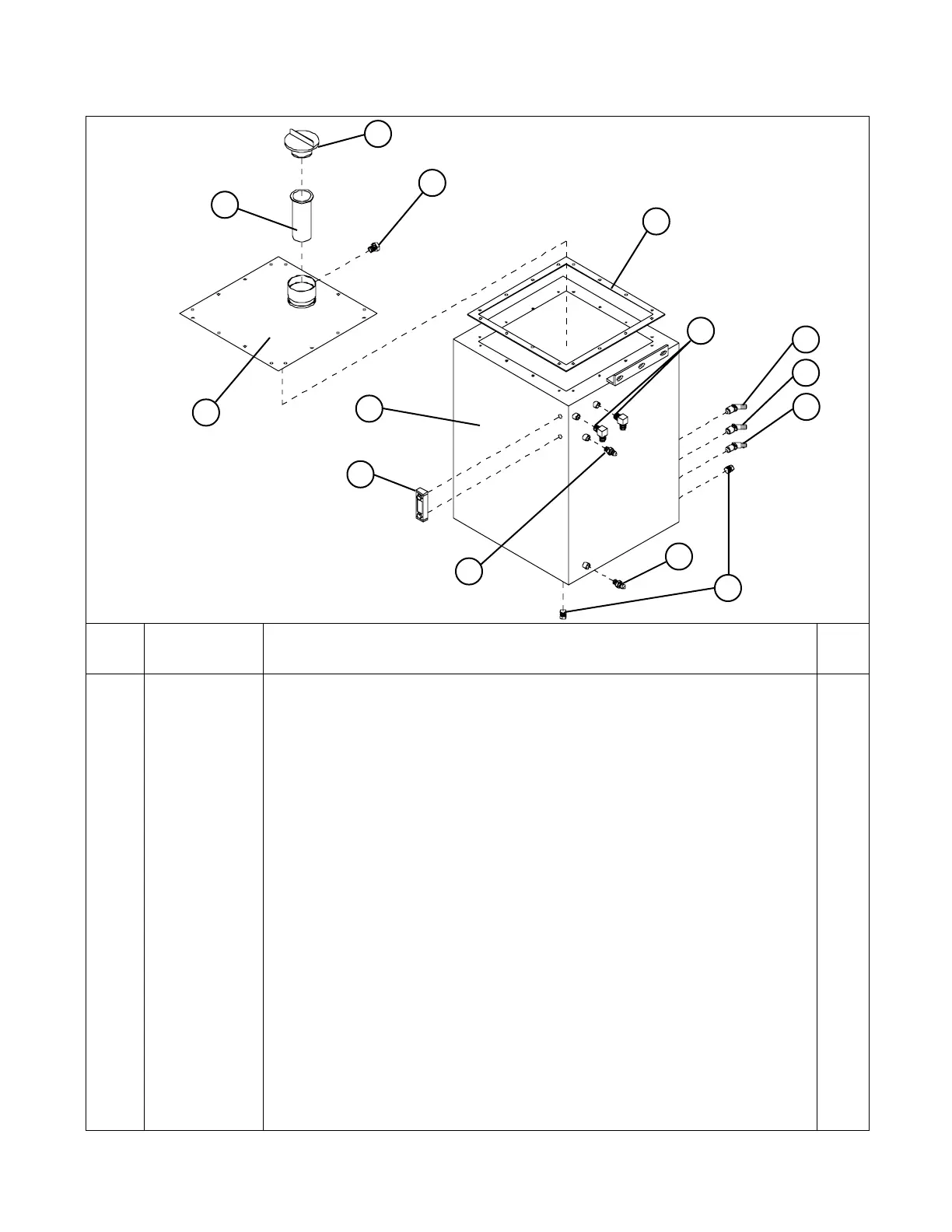

FIGURE 6-20. HYDRAULIC TANK ASSEMBLY
Ma40-617
706079 ASSEMBLY, Hydraulic tank -
1 704466 • WELDMENT, Hydraulic tank 1
2 103236 • GAUGE, Oil level temperature 1
3 702541 • FITTING, Elbow 90° #12NPT - #12 2
4 707120 • FITTING, Connector #12 - #8 1
5 103339 • PLUG, 3/4”NPT magnetic zinc plated 2
6 703118 • FITTING, Connector #6NPT - #6 1
7 707117 • FITTING, Elbow 45° #12NPT - #16 1
8 707116 • FITTING, Elbow 45° #12NPT - #12 1
9 706137 • FITTING, Elbow 45° #12NPT - #8 1
10 706188 • GASKET, Hydraulic tank cover plate 1
11 706076 • WELDMENT, Hydraulic tank cover plate 1
103856 • • BOLT, HHCS 1/4-20 x 3/4” lg. grade 5 16
103995 • • WASHER, Flat 1/4” 16
104000 • • WASHER, Lock 1/4” 16
12 700506 • PLUG, Breather vent 1
13 702290 • STRAINER, Hydraulic tank filler cap 1
14 702291 • FILLER CAP, Hydraulic tank 1
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
