Skyjack SJKB-40-XRT - Page 210

SECTION 6, Page 97
SJKB-40-D, SJKB-40-D/F
JUN. 1999

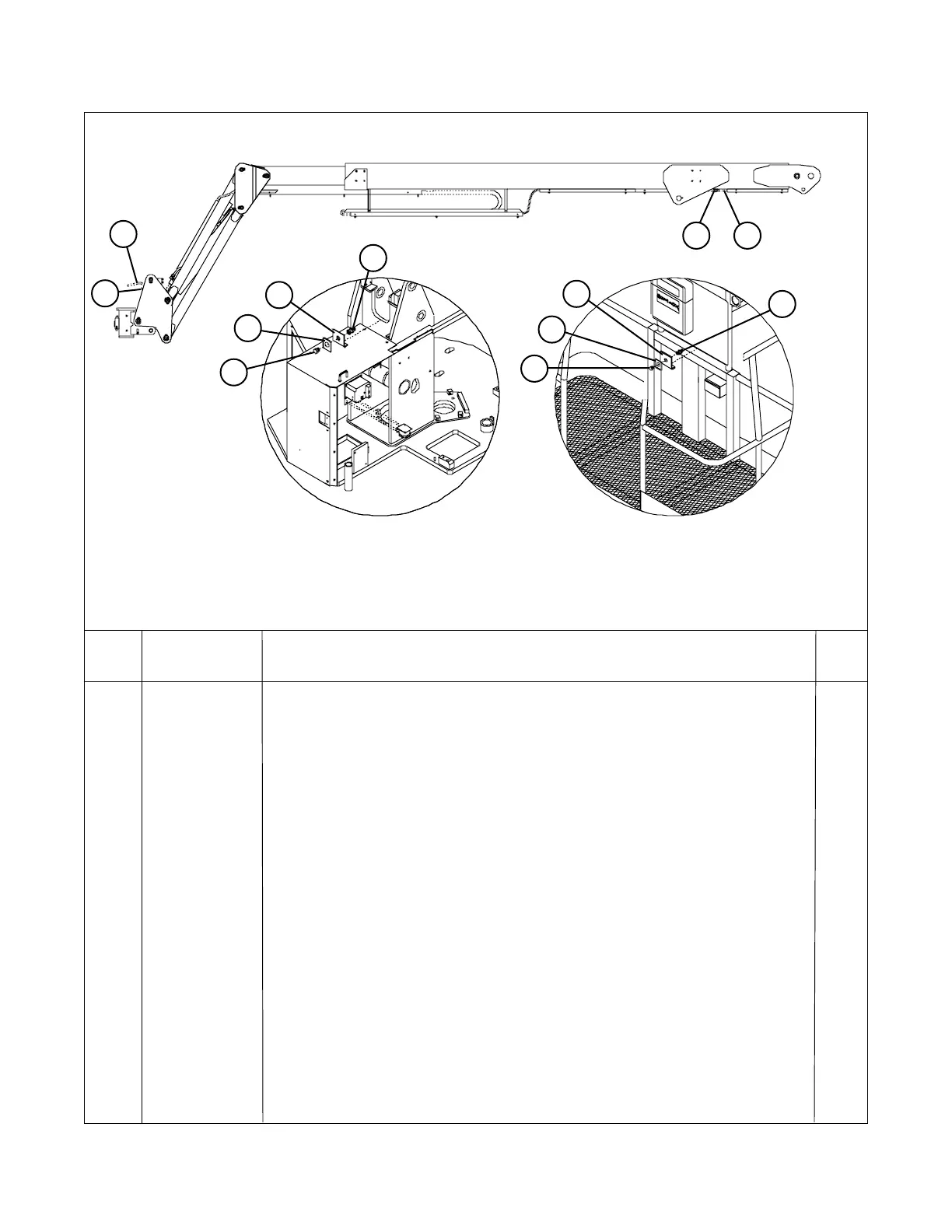

FIGURE 6-54. AIR LINE TO PLATFORM
Ma40-663
706972 AIR LINE TO PLATFORM OPTION -
1 704036 • CLAMP, Hose 2
2 708342 • HOSE ASSEMBLY (H308 0343 00-0) 1
3 708343 • HOSE ASSEMBLY (H108 0173 00-0) 1
4 702125 • FITTING, Tube union #8 1
5 709116 • BRACKET, Air line platform 1
6 706970 • BRACKET, Air line turret 1
7 703683 • FITTING, Pipe - 1/2” NPT plug zinc 2
8 703681 • FITTING, Bulk head connector (LN8) - female 2
9 703671 • LABEL, Air line 2
NOTE: Refer to Standard Hose Numbering System
(SECTION 5, Page 30) for explanation of hose
numbering.
