Skyjack SJKB-40-XRT - Page 44

SJKB-40-D, SJKB-40-D/F SECTION 3, Page 21

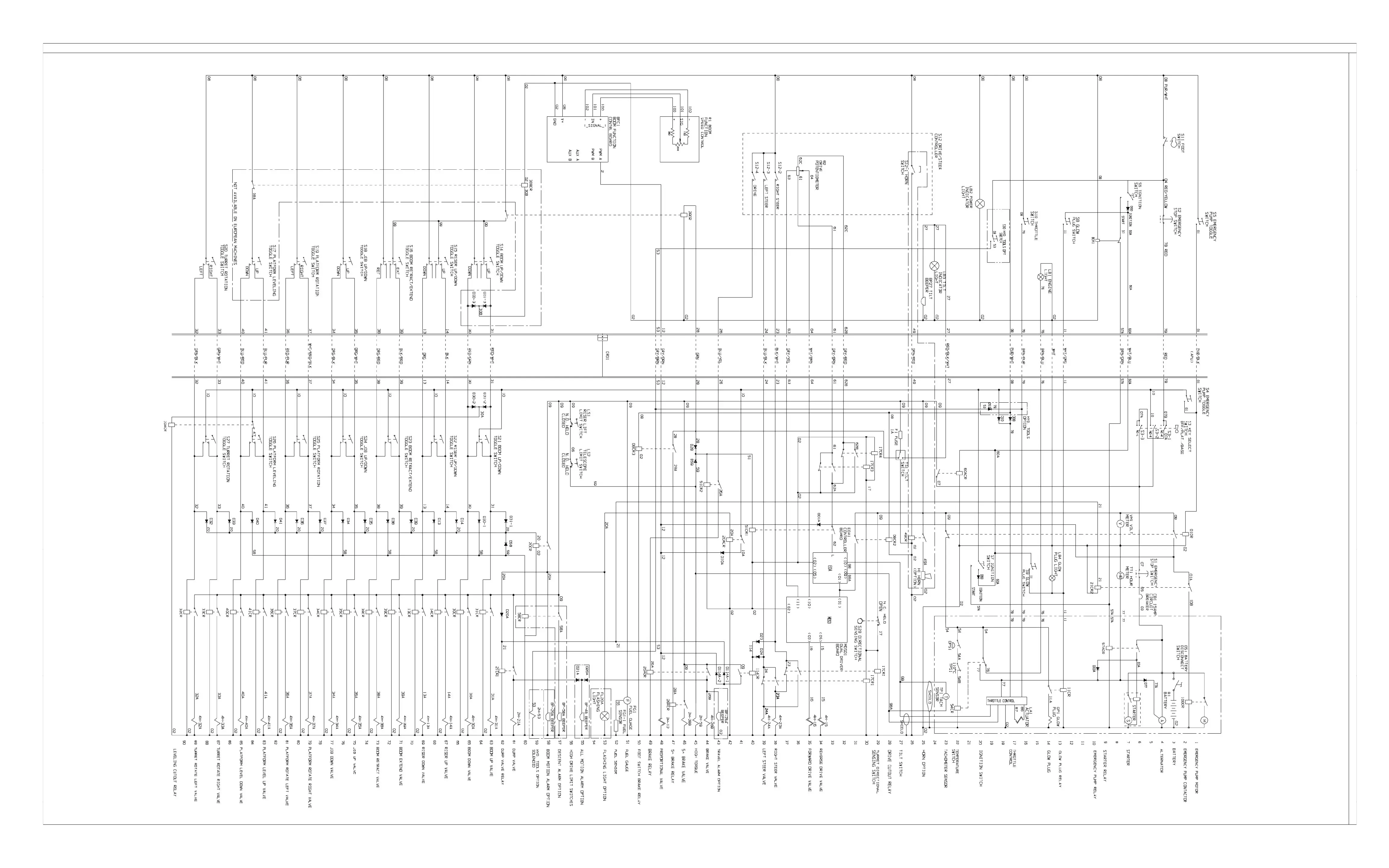

FIGURE 3-10. ELECTRICAL SCHEMATIC (Diesel)(S/N 95088 and above.)
706969AF
AUG. 1999
MLG KIHF JEDCBA
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
N
20 19 18 17 16 23 22 21
