SECTION 5, Page 11SJKB-40-D, SJKB-40-D/F
JUN. 1999
SET POTS ACCORDING TO CHART BELOW
PRIOR TO ADJUSTING EDA BOARD
CW until you hear the pot click
CCW until you hear the pot click
CW until you hear the pot click
CCW until you hear the pot click
CW until you hear the pot click
WIRE 59
STRAIGHTENED PAPER CLIP
PUSH SWITCH HERE TO
SET SWITCH “OFF”
PUSH SWITCH HERE TO
SET SWITCH “ON”
Ma40-504
SET DIP SWITCHES ACCORDING TO CHART BELOW

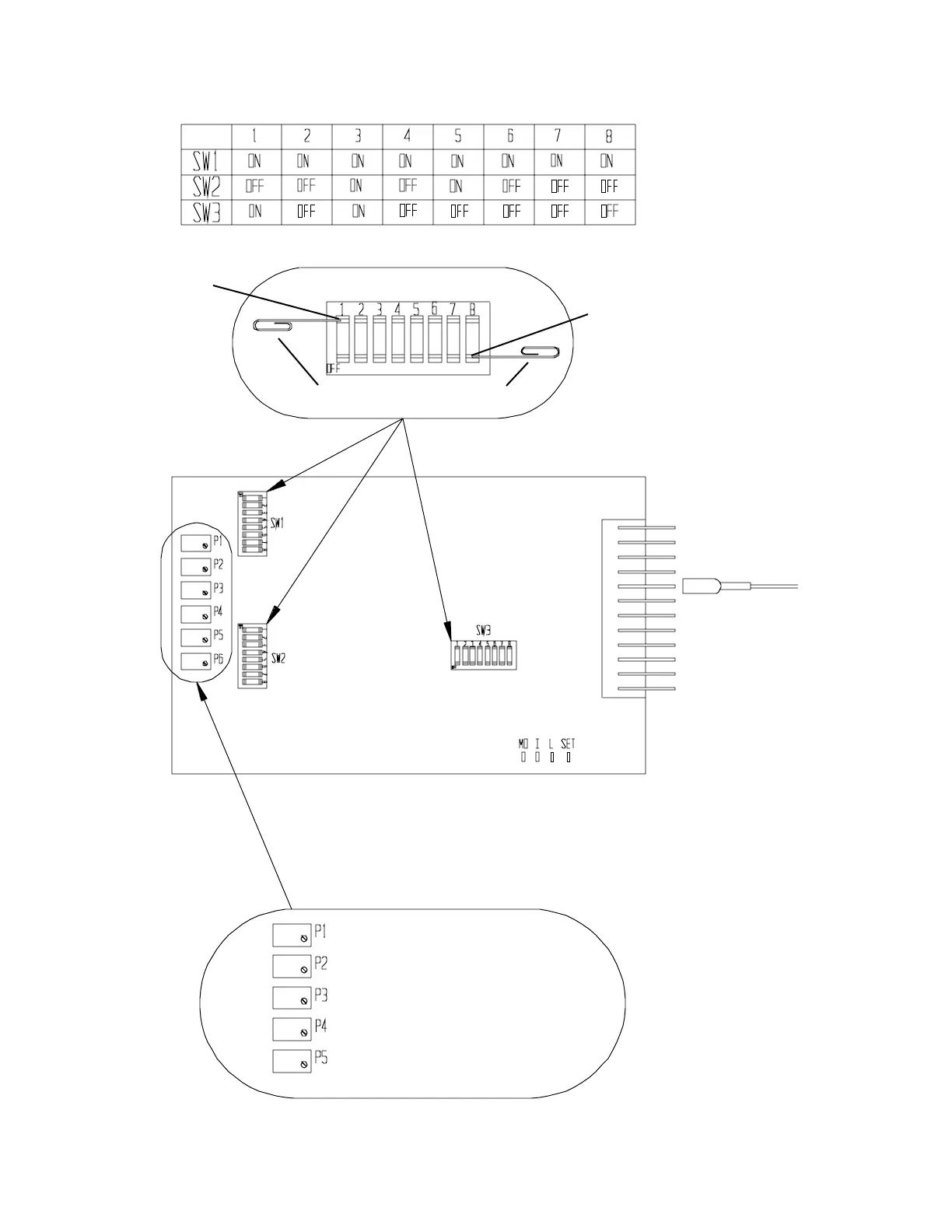

Figure 5-4. Base EDA Board Settings.
