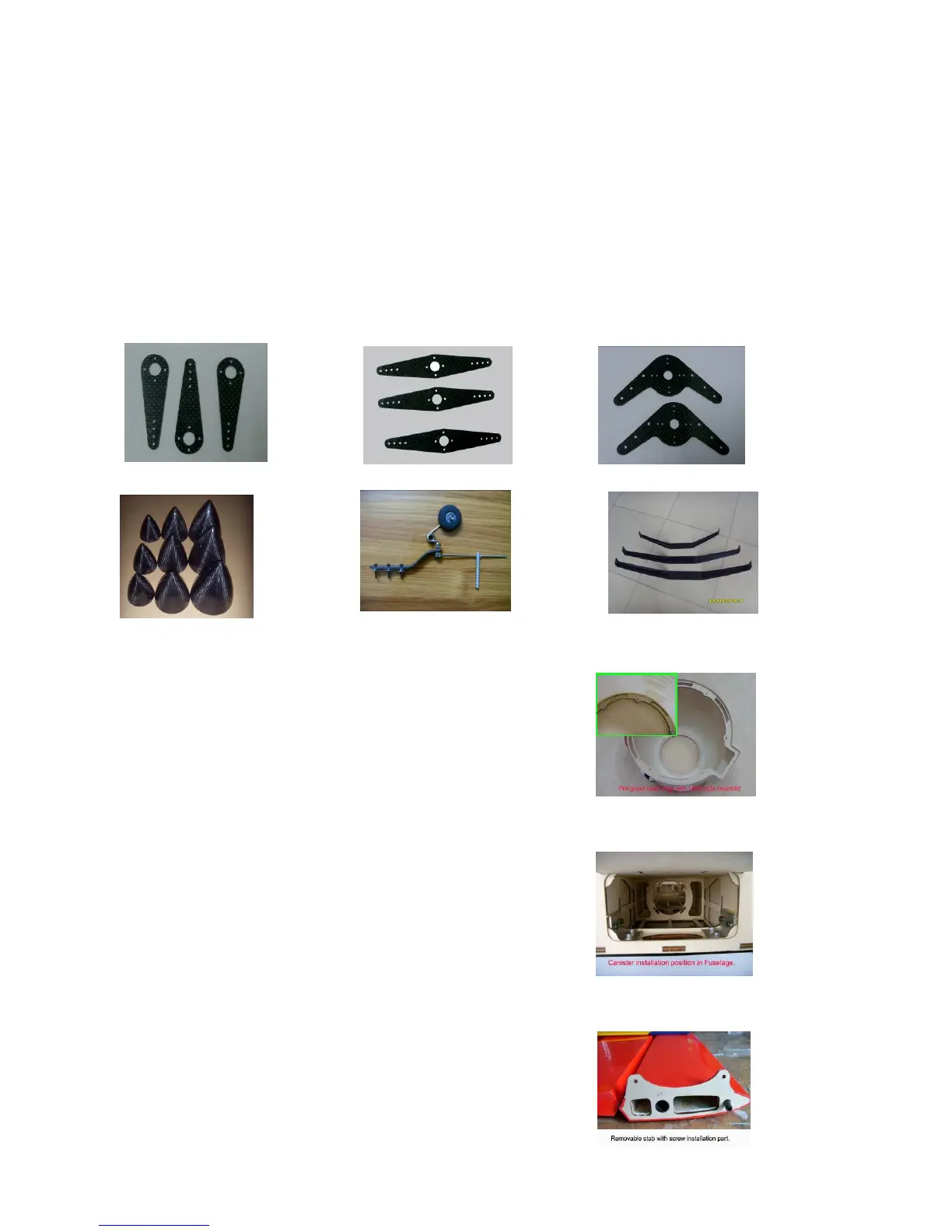

Our airplane model:
1
All our plane have the matching carbon fiber servo arms, carbon
fiber main and tail landing gear, carbon fiber spinner and wood
propeller available.
2
3
4
Removable wings and stabs
Pre-glued cowling ring with
blind nuts mounted.
Canister installation position
in Fuselage
1
3
Table of Contents
Tail Wheel Unit
5
Main Landing Gear Istallation
7
Main Wing Assembly
9
Rudder Installation
12
Parts for Rudder Installation
12
Stabilizer Installation
16
Parts for Stabilizer
16
Sbach 30Cc / Sbach 50Cc / Mxsr 30Cc's Exterior Servo
17
Mxsr 50Cc's Hidden Servo
17
Engine Installation
18
Muffler and Canister
22
Fuel Tank
23
Cowl Assembly
24
Center of Gravity
25
Power on to Trim Your Plane
26
Control Throw
26
