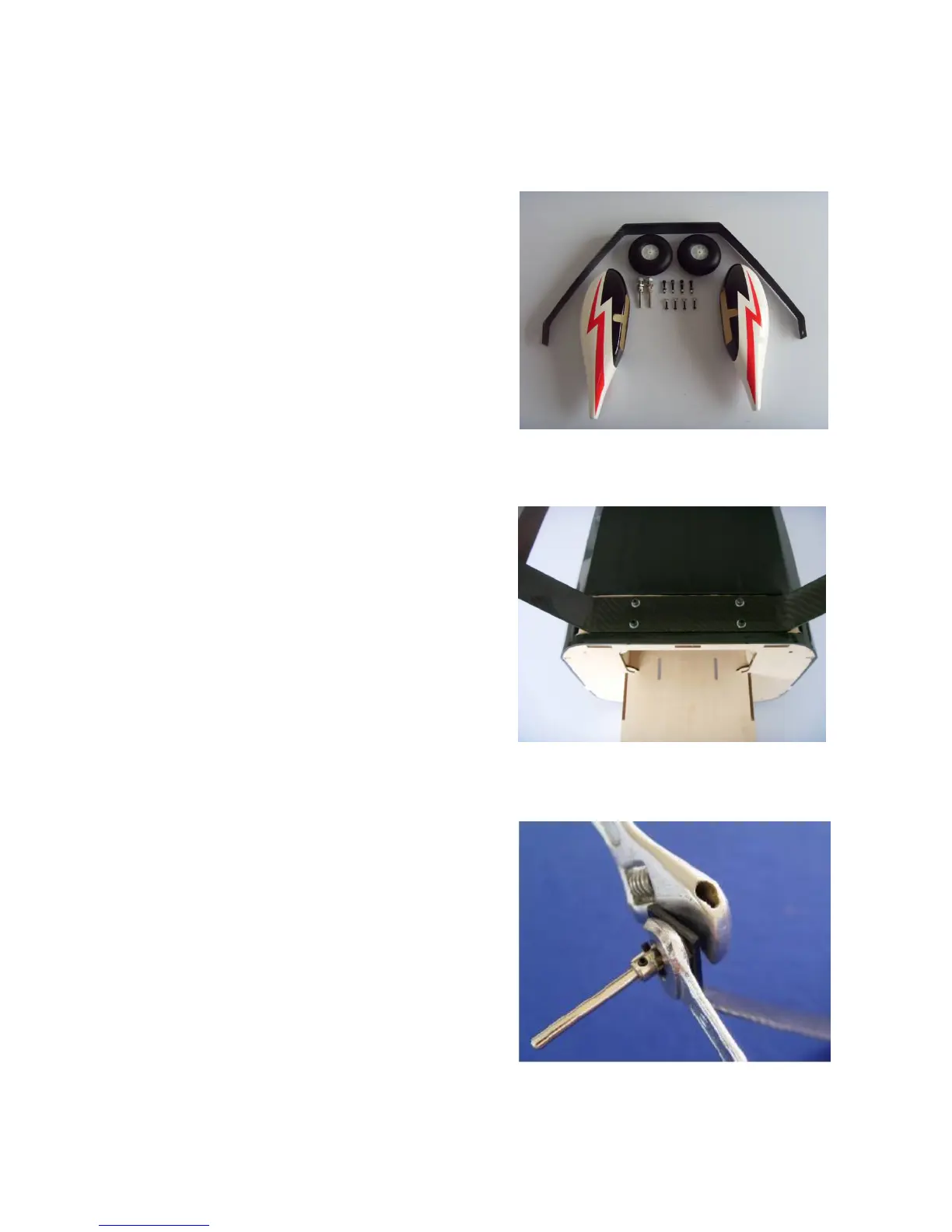

Main Landing Gear Istallation
1
2
Install the landing gear in the
pre-drilled holes with the
supplied bolts and locking
nuts.
Secure the bolts with Blue
Loctite
Install the landing gear axles
with lock nuts but do not
tighten yet.
All parts for the main landing
gear
6
8
Table of Contents
Tail Wheel Unit
5
Main Landing Gear Istallation
7
Main Wing Assembly
9
Rudder Installation
12
Parts for Rudder Installation
12
Stabilizer Installation
16
Parts for Stabilizer
16
Sbach 30Cc / Sbach 50Cc / Mxsr 30Cc's Exterior Servo
17
Mxsr 50Cc's Hidden Servo
17
Engine Installation
18
Muffler and Canister
22
Fuel Tank
23
Cowl Assembly
24
Center of Gravity
25
Power on to Trim Your Plane
26
Control Throw
26
