Battery Resistance Meter
The user can check battery's total resistance, the highest resistance, the lowest
resistance and each cell's resistance.
Please connect the battery to the charger main battery lead to battery socket and balance
wires to balance socket.
Press the START/ENTER to enter the Lithium
Battery Resistance program.
The screen indicate each cell's resistance.
The screen indicate the total resistance, the highest
resistance and the lowest resistance.
Start
Enter
B ATT / P R OGRA M
B ATT R E S I STAN C E
0 12 00 5 0 0 5 mΩ
0 06 mΩ
T ATA L :2 8mΩ
H :12mΩ L :5 mΩ
DECINC
0 0 5 0 03 0 03 mΩ
0 0 5 0 03 0 03 mΩ
0 0 5 0 03 0 03 mΩ
0 0 5 0 03 0 03 mΩ
· 30
D400

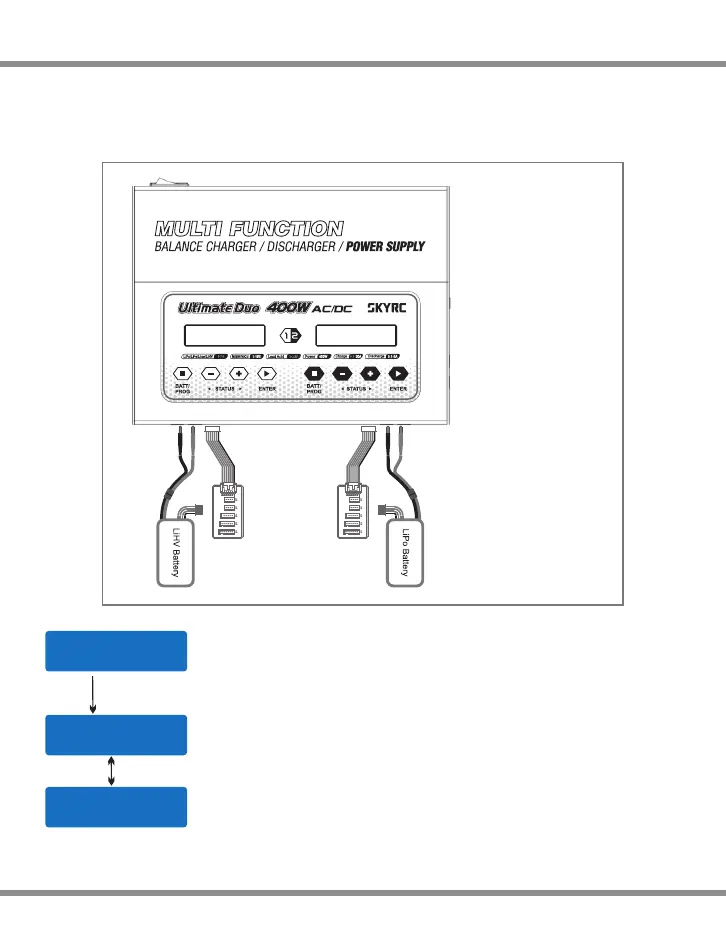

This diagram shows the
correct way to connect
your battery to check
the resistance.
To Next Page
