About the enclosure
The enclosure and baffle of this range of speakers are made of polypropylene co-polymer. The use of
co-polymer allows features such as stand mounting sockets, handholds, ports and high frequency
horns to be molded directly into the cabinet. Not only do you get contemporary appearance, you also
get lots of functionality.

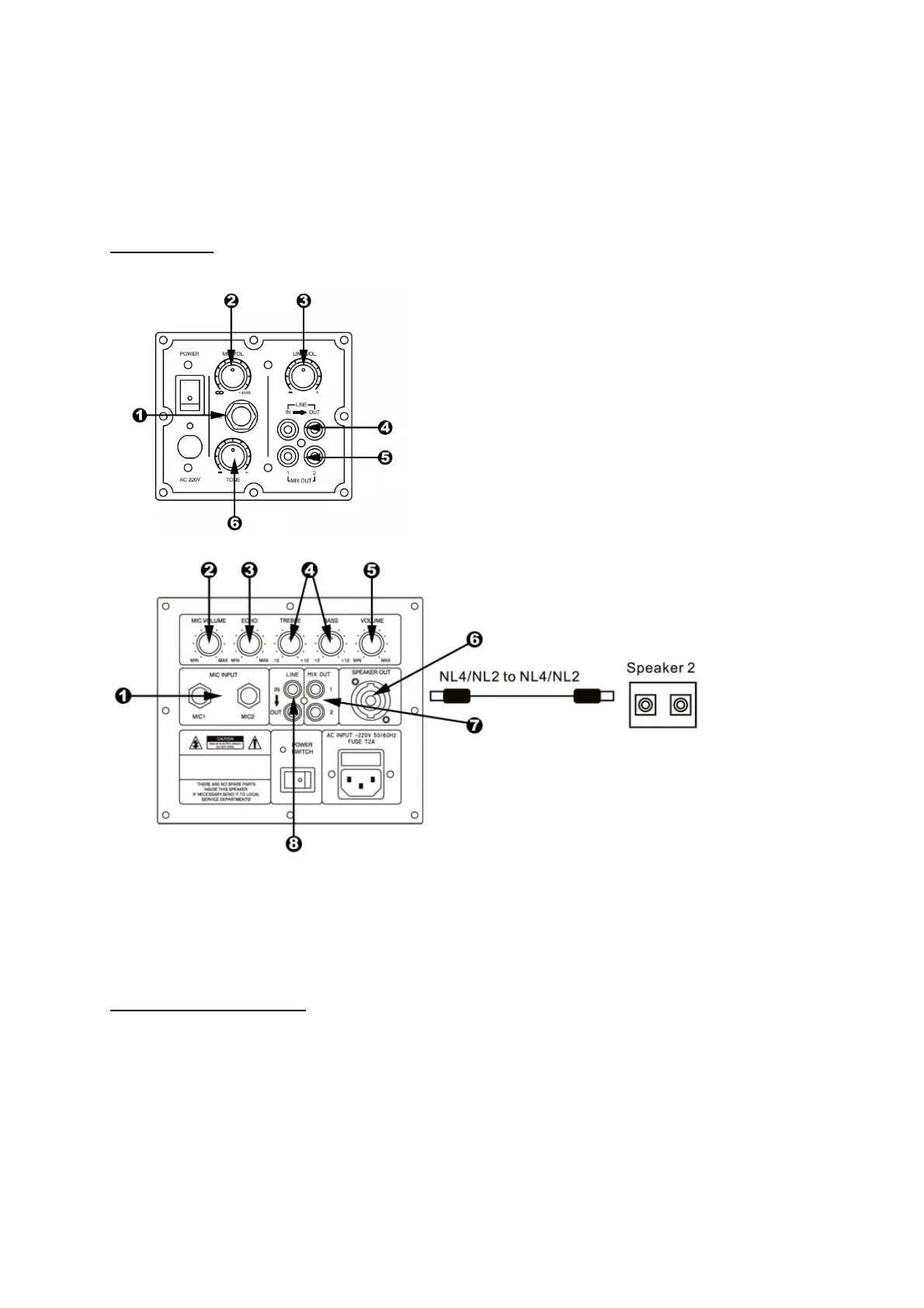

INPUT PANEL
8” & 10” Versie:
1. Input connector for microphone
2. Volume control for the microphone
3. Volume control for the line input
4. Line input connector for the audio input source e.g.
mixer, CD player, etc.
5. Output connector to a second box
6. Tone control for the output
12” & 15” Versie:
1. Input connector for 2 microphones
2. Volume control for the microphone
3. Echo control for microphone
4. Tone control for the output
5. Volume control for the output
6. Output connector to a pasive box (8 Ohm)
7. Output connector to a second box
8. Line input connector for the audio input source e.g.
mixer, CD player, etc.
CABLE CONNECTIONS (6)
(12” and 15” versions only)
This range of speakers features 4-p loudspeaker connectors. These connectors are hooked in a
parallel “loop-through” configuration for connection to additional speakers. For optimum performance
it’s important to use cables specifically designed for speaker use. Do not use shielded “guitar” signal
cables for connection to these speakers.
Selection of the appropriate wire gauge is important for system operation. A cable that is too light will
result in amplifier power being wasted due to the series resistance of the cable. In addition, loss of
low-frequency performance may be experienced due to a degraded damping factor. The chart below
