POWER PANEL:
POWER ADAPTER(IEC): Insert the includ ed power cable here to charge the unit. Note that the can run off the
power adapter while it simultaneously charges the battery. The charge indicator illuminates when the battery is
charging.
5.
POWER ON/OFF SWITCH
6.
USB/SD CHARGING SWITCH
8.
BATTERY LEVEL INDICATOR: While the uni t is power ed ON, these four light s indi cate the power left in the
battery. Battery life varies based on volume and usage.
9.
LINK OUTPUT: This 1/4” jack is a stereo line level output that can be connected to the stereo input of an amplifier
or amplified loudspeaker such as another.
10.
MICROPHONE 1 BALANCED INPUT WITH GAIN CONTROL(1/4” AND XLR):This jack can either take a 1/4”
balanced or a XLR balanced cable. An XLR Cable is included with the microphone.
1.
INSTRUMENT/MICROPHONE 2 INPUT WITH GAIN CONTROL(1/4”): This mono input accepts a 1/4” input such
as a microphone, guitar, or other musical instrument.
2.
MASTER VOLUME CONTROL: This knob controls the master volume of the.
4.
3.
USB/SD/AUXULIARY INPUT WITH GAIN CONTR O L (STEREORCA ) : This knob controls the
lev e l o f t h e U SB/ S D a n d t he R CA i n put . T his st e reo RC A i n put ca n b e u s ed t o c onn e ct a C D ,
MP3, or o t her a udio sourc e . To conn e c t t o a p ortab l e de v ice w i th a 1/8 ” hea d phone jack , you
need a standard (1/8” to RCA) adapter which is NOT included.
CONTROL PANEL:
PA-201
1 2
3
4
POWE R SU PP LY
~115/ 23 0V,6 0/5 0H z
POWE R CO NS UMPTION 2 0 WATTS
FUSE T 2A L 25 0V
5
6
7
8 109

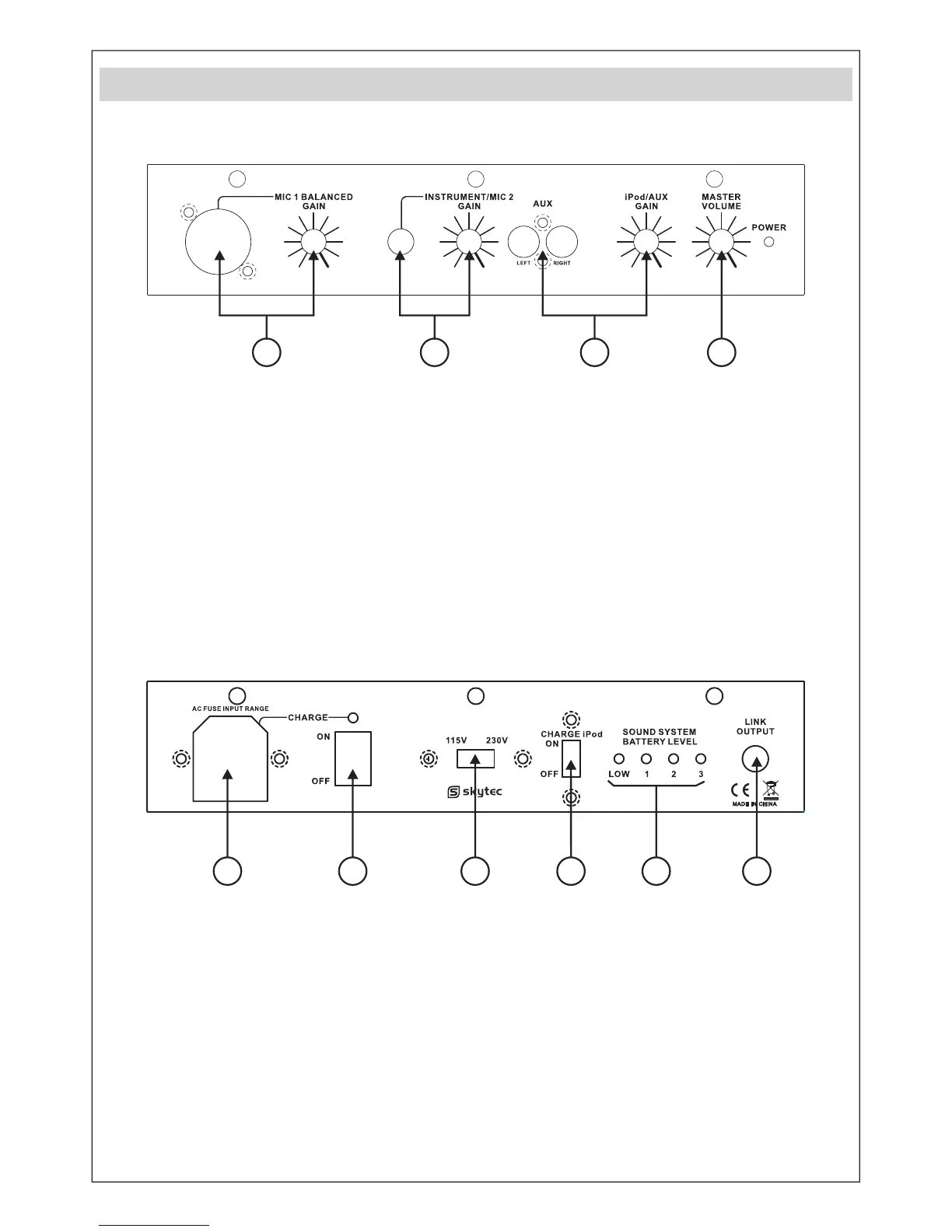

DIAGRAM AND PARTS DESCRIPTION
VOITAGE SELECTOR: Set this to the correct voltage for your location standard.
7.
