Skytec STM-2300 User Manual

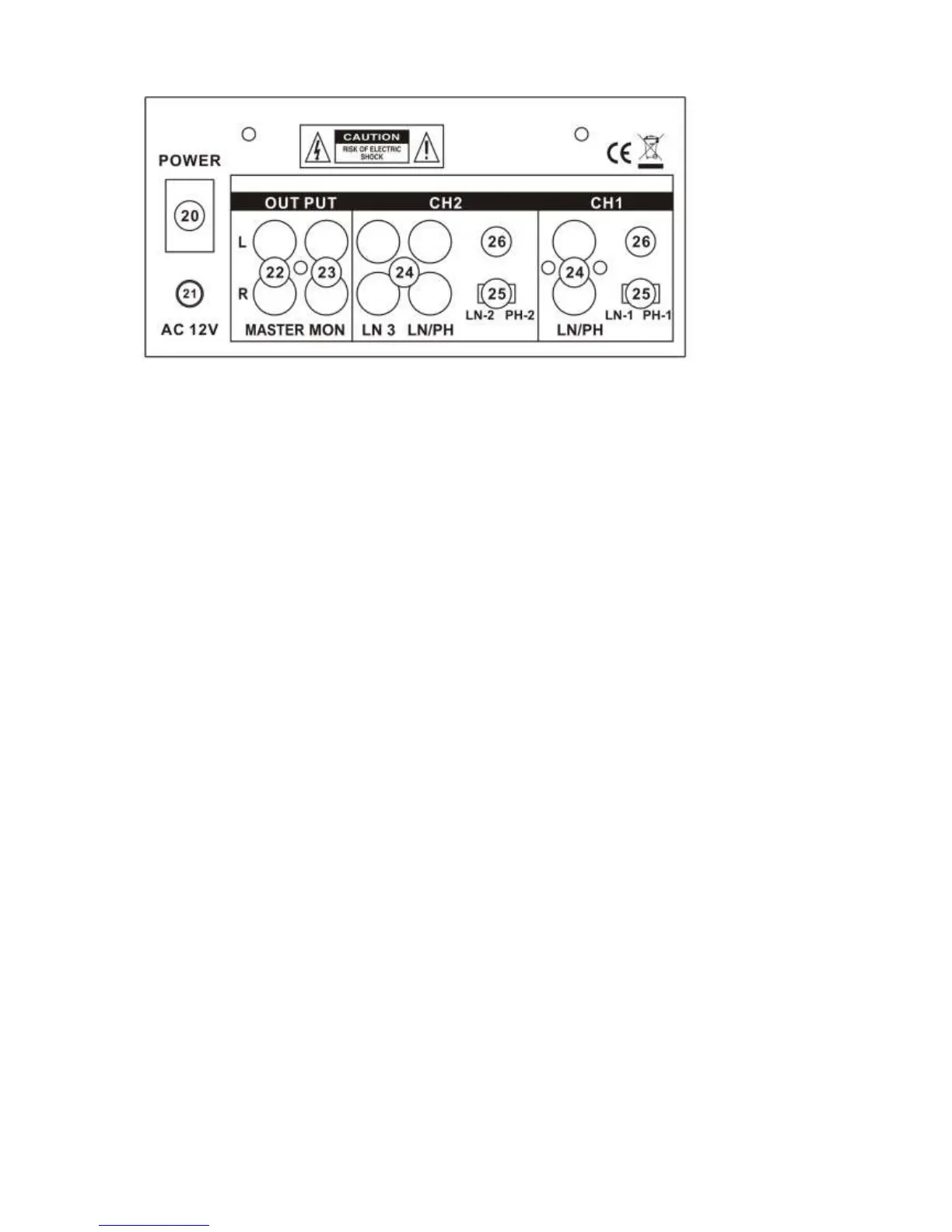

BACK PANEL DESCRIPTION
20. Power Switch
Press down the button to turn on this unit. The LED will illuminate when the power is on.
21. AC Connection
This unit comes with a 12V AC adapter. Plug into the 12V AC jack before plugging it into a proper power source.
22. Master Output
Master output connects to the main amplifier (DJ final mix after crossfader section), accepts RCA jacks。
23. MON Output
To connect your AUX unit. These jacks are RCA types. Which are suitable for connection of a recording device.
Its level is not influenced by the master/channel control.
24. Phono/Line Inputs Sockets
These inputs, for ch1-ch2 and accept RCA-plug connectors. Use phono input socket for phonograph turntables.
Use line socket for CD/MP3 players. Line level musical instruments with stereo outputs such as rhythm machines or
samplers should also be connected with the line input socket.
25. Inputs Switch
Set these switches based on what is plugged into Phono/ Line input jacks
26. GND
Connect the earth cable from the turntables. This helps to reduce humming and pop noise.

Skytec STM-2300 Specifications

General

Frequency range	50 - 20000 Hz
Channels quantity	2 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	80 dB
Microphone input impedance	2.2 Ω
Total Harmonic Distortion (THD)	0.02 %
Master (L, R) out	2
USB 2.0 ports quantity	1
DJ mixer	Yes
Video capability	No
Equalizer bands quantity	3
Cables included	AC

Weight and Dimensions

Depth	100 mm
Width	178 mm
Height	238 mm
Weight	2000 g
