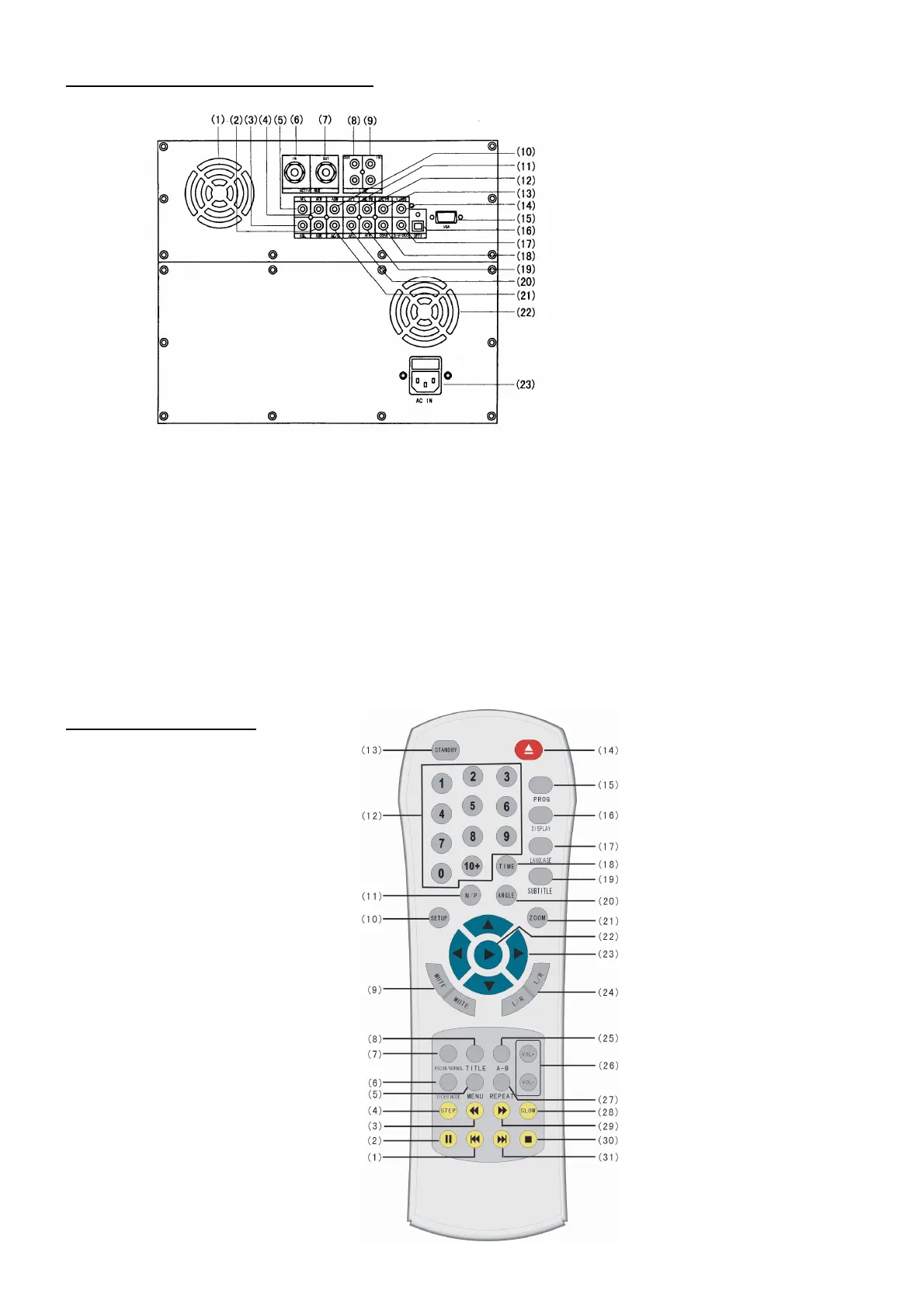

BACK PANEL OF THE AMPLIFIER:
1. Ventilate Holes.
2. Right surround output
3. Left surround output
4. Right pre.
5. Left pre.
6. Diapason connection input.
7. Diapason connection output
8. Audio output
9. Audio input
10. Super Bass output
11, 12, 13. Video separate output
14. Compound video output
15. VGA output
16. Optical fiber output
17. S-Video output
18. Figures Coaxial output
19. Right mix output
20. Left mix output
21. Midrange output
23. AC power jack.
OPERATION BOARD:
Telecontrol Instrument
1. LAST key
2. PAUSE key
3. BACKWARD key
4. STEP key
5. MENU key
6. VIDEO MODE key
7. PSCAN / NORMAL key
8. TITLE key
9. MUTE key
10. SETUP key
11. SYSTEM TYPE key
12. NUMBER key
13. STANDBY key
14. EJECT key
15. PROG key
16. DISPLAY key
17. LANGUAGE key
18. TIME key
19. SUBTITLE key
20. ANGLE key
21. ZOOM key
