15
2.
15
15
15
T-joint
Socket
Socket
Socket
T-joint
T-joint
T-joint
T-joint
T-joint
T-joint
Socket
Socket
Socket
Socket
Socket
4
1
3.
T-joint
3
3
3
2
16

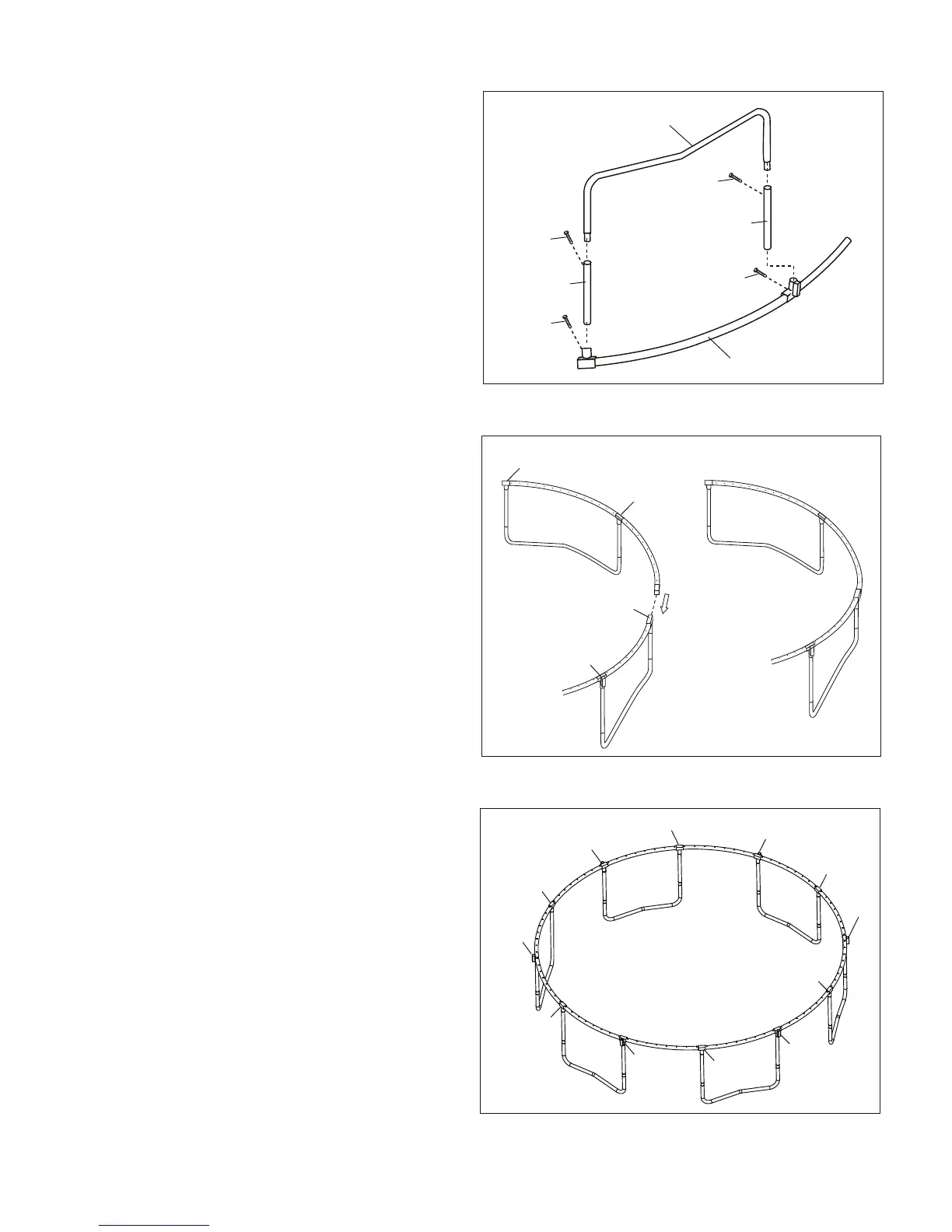

Insert the Leg Brace(4) into two Leg Extensions(3) as
shown, then tighten with two M4.8x16mm Self-
tapping screws(15).
Press down on both Leg Extensions(3) at the same
time and fully insert them into the T-joint and Socket ,
then tighten by two M4.8x16mm Self-tapping
screws(15).
Repeat above assembly steps until six frame pieces
are completed. Then flip the trampoline frame pieces
over so that the_legs are now holding the trampoline
frame pieces up.
Locate two frame pieces as shown and then fully
connect them together.
NOTE:
Connecting frame pieces upside down is much
more difficult, and will require another person to
help flip the frame over.
Repeat above step 3 in the same way, you should now
have a free standing frame as shown.
