19
small belt
11

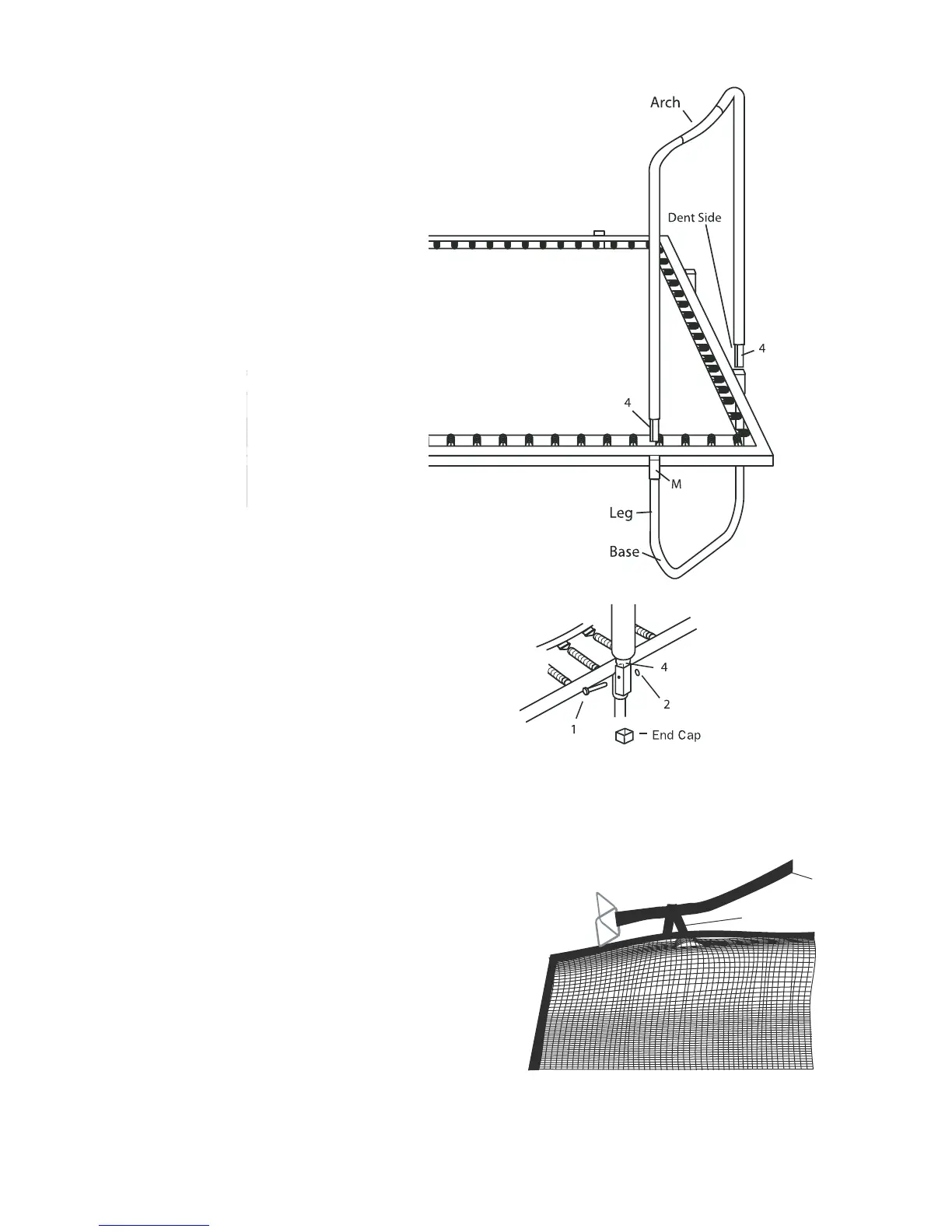

4. Locate one strap(11) with D-rings to the upper edge of
the Netting. Lift the end of the strap(11) and insert it
through the small belt sewn on the upper edge of the
netting,see the right drawing. Then Lift D-ring and hold
it close to an L-tube(5)as shown in Inset Drawing A. Next,
thread the end of the Strap under the Foam on the L-tube (5)
and up through the two D-rings on the opposite end of the
Strap (11). (See Inset Drawing B.) Then thread the end of
the Strap (11) back down through the lower D-ring on the
Strap. (See Inset Drawing C.) Pull the loose end of the Strap
to remove any slack but do not fully tighten the Strap (11)
at this time.
