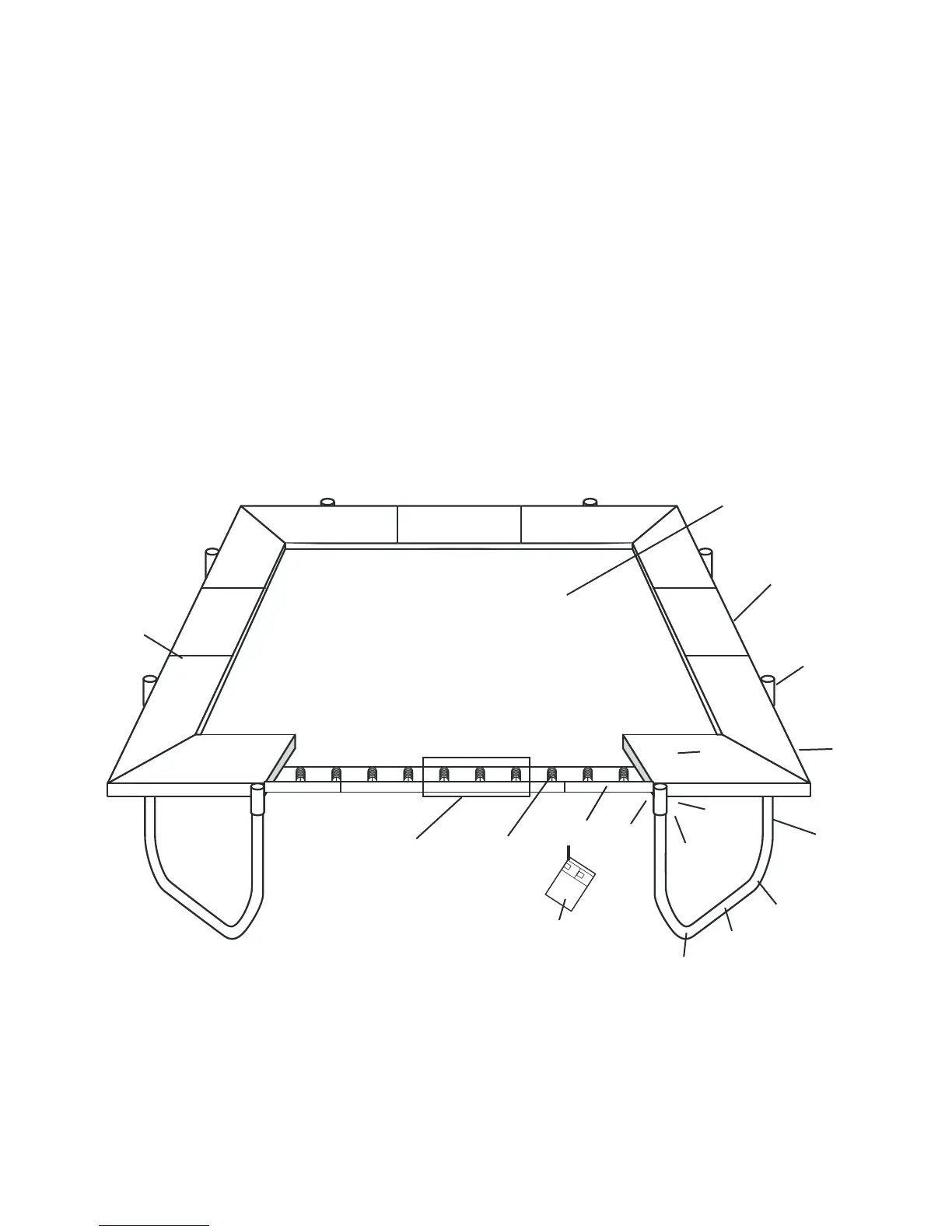

EXPLODED DRAWING AND PARTS LIST FOR TRAMPOLINE
Key
No. Qty. Description
1 4 Corner Frame Pieces
2 8 Frame Tube with Square hole
3 4 Middle Tube
4 8 Leg Posts
5 4 Female Curved Legs
6 4 Male Curved Legs
7 1 Stitched Bed with 84 V-Rings
8 72 Silver Color Springs
9 12 Gold Color Springs
10
2 Frame Pads
11 1 User
's Manual and Safety Placard
12 20 #8 Screws
13 16 M10X80 Bolt
14 16 M10 Nut
15 16 Bolt End Cap
16 16 M10 Washer
17 8 Socket
* 1 Set of ASTM Frame Labels
* These parts are not illustrated.
Specifications are subject to change without notice.
1
17
3
4
5
6
7
8
9
10
12
11
13
14
15
16
2
ORDERING REPLACEMENT PARTS
To order replacement parts, visit our web site at www.skywalkertrampolines.com or call our toll-free Customer Care
Hot Line at 1-866-603-Jump (5867), Monday through Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holi-
days). To help us assist you, please provide the following information when calling:
• the MODEL of the trampoline (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part (see the PART LIST above)
• the quantity needed
• the desired method of shipping
