Slaughter 2900 Series - Front Panel Controls

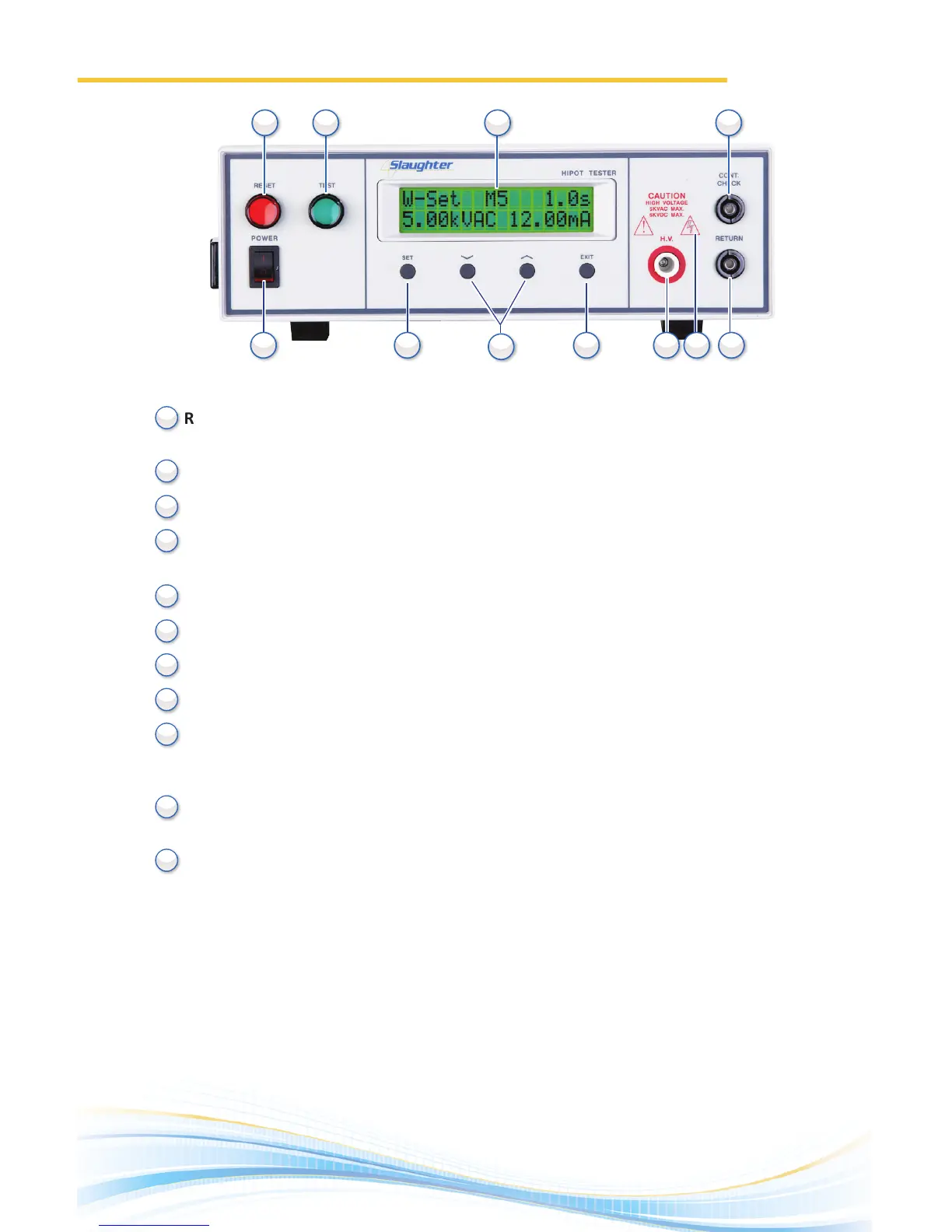

Front Panel Controls 2955/2965/2975
RESET BUTTON: Red momentary contact switch used to reset the instrument in case of a
failure. Also serves as an abort signal to stop any test in progress.
TEST BUTTON: Starts a test.
LCD DISPLAY: 16 x 2 character display.
CONTINUITY OUTPUT TERMINAL: Connector used to aach the return test lead, adapter
box return lead, or test xture return lead used during Connuity tesng.
POWER SWITCH: Rocker-style switch with internaonal ON ( I ) and OFF ( O ) markings.
SET KEY: Use this key to cycle forward through the setup menus.
UP-DOWN ARROW KEYS: Use these keys to cycle through the test parameter setup.
EXIT KEY: Use this key to exit any menu.
HIGH VOLTAGE OUTPUT TERMINAL: Provides the high voltage used during a Hipot test.
Connector used to aach the high voltage test lead, adapter box high voltage lead or test
xture high voltage lead to the instrument.
HIGH VOLTAGE INDICATOR: Indicator ashes to warn the operator that the high voltage is
present at the high voltage output terminal.
RETURN TERMINAL: Provides the return current path. Connector used to aach the
return test lead, adapter box return lead or test xture return lead to the instrument.
10
11
2
3
4
5
6
7
8
9
1
(2955 Front Panel)
1.
10 11
2 3 4
5 6
7
8 9
1
