Sloan 110 - Parts List

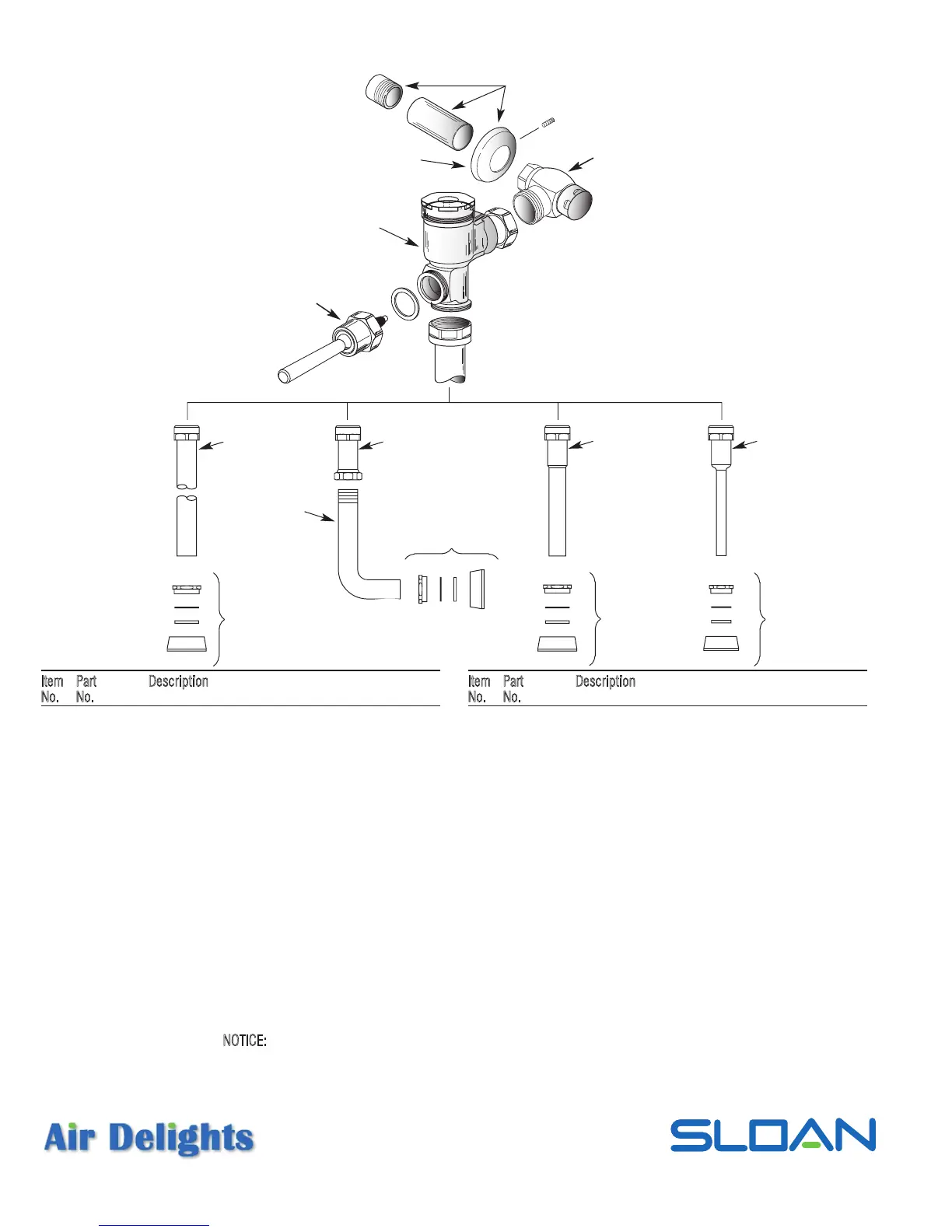

PARTS LIST
1
3
2
8 §
Item Part Description
No. No.
1 † Valve Assembly
2 G-143-A Handle Assembly
3 H-700-A Bak-Chek
®
Control Stop
4A V-500-AA 1-1/2" (38 mm) x 9" (229 mm) Vacuum Breaker
Assembly CP (Model 110/111) ‡
V-500-AA 1-1/2" (38 mm) x 21-1/2" (546 mm) Vacuum Breaker
Assembly CP (Model 115) ‡
4B V-500-AA 1-1/4" (32 mm) x 9" (229 mm) Vacuum Breaker
Assembly CP (Model 180) ‡
4C V-500-AA 3/4" (19 mm) x 9" (229 mm) Vacuum Breaker
Assembly CP (Model 186) ‡
4D V-500-A 1-1/2" (38 mm) Vacuum Breaker Assembly CP ‡
Item Part Description
No. No.
5 F-109 1-1/2" (38 mm) Elbow Flush Connection
6A CR-1010-A 1-1/2" (38 mm) Spud Coupling Assembly
(Models 110/111, 115, 120, 121 & 122)
6B CR-1009-A 1-1/4" (32 mm) Spud Coupling Assembly
(Model 180)
6C CR-1008-A 3/4" (19 mm) Spud Coupling Assembly (Model 186)
7 F-7 Supply Flange (Supplied when Valve is Not Ordered
with Sweat Solder Kit)
8 H-633-AA 1" (25 mm) Sweat Solder Kit with Cast Set Screw
Flange (YBYC Variation) §
H-636-AA 3/4" (19 mm) Sweat Solder Kit with Cast Set Screw
Flange (YBYC Variation) §
7
6A
6A
6B
6C
4A
‡
4D ‡
4B ‡ 4C ‡
5
† Part number varies with valve model variation; consult factory.
‡ If valve was specified less vacuum breaker (XYV variation), a straight flush tube is supplied in place of the vacuum breaker assembly. Consult Factory for part
number.
§
Furnished only when ordered with YBYC variation.
For a complete listing of GEM•2 Flushometer Valve Components and Repair Kits, refer to the Maintenance Guide or consult your nearest plumbing wholesaler.
For optimum water conservation and Flushometer performance, use only Genuine Sloan Parts.
