LS6500 Assembly Guide (2 of 5)
Note!
Use of the optional
SLS road cases store
the LS6500 line
array elements in
this position already.

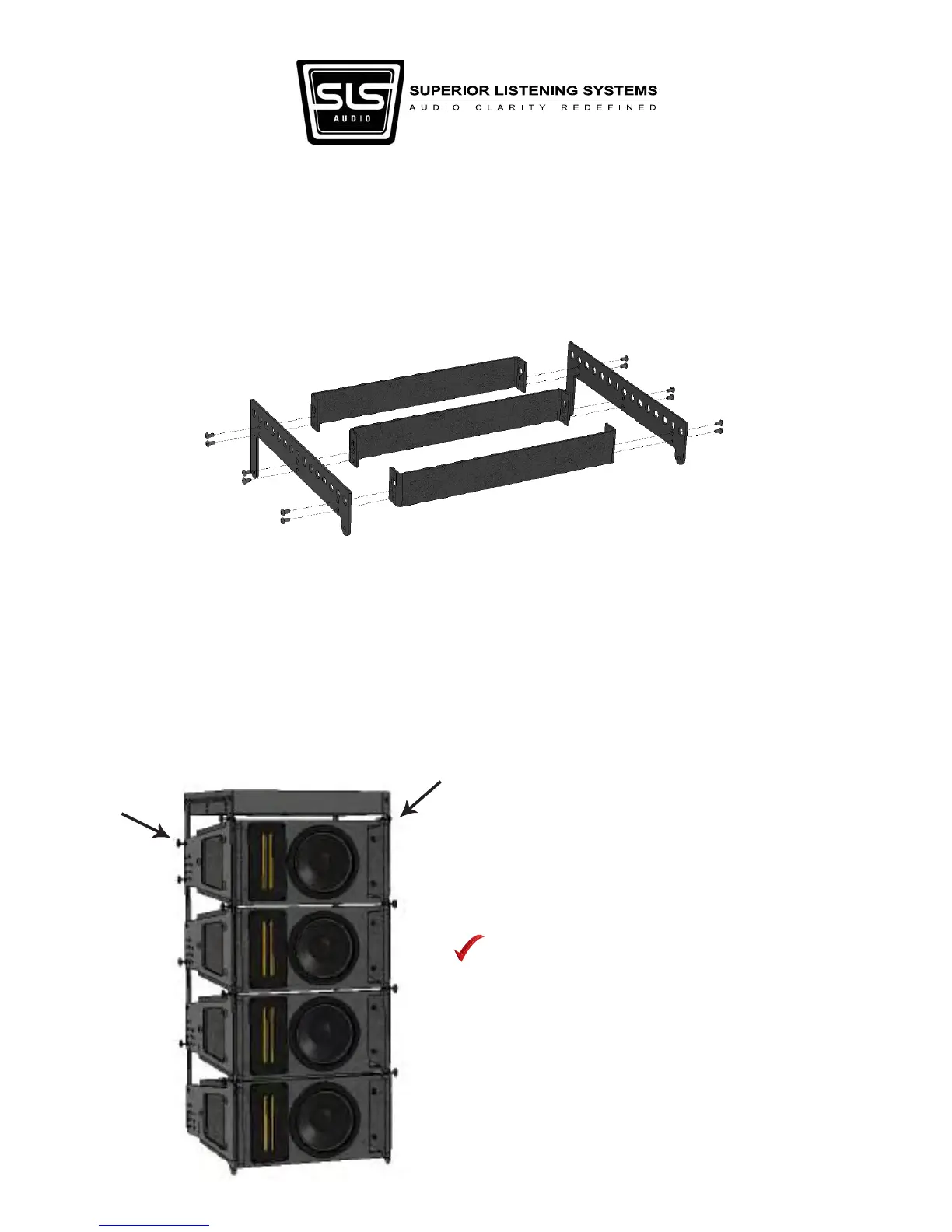

Assemble the RLA/3-BB rigging frame.
Attach the frame to the LS6500 without the rear billets
(previously removed in step 1) using the supplied positive
locking pins (the long extentions of the RLA/3-BB attach to the
rear of the top element in place of the removed rotating billets)
